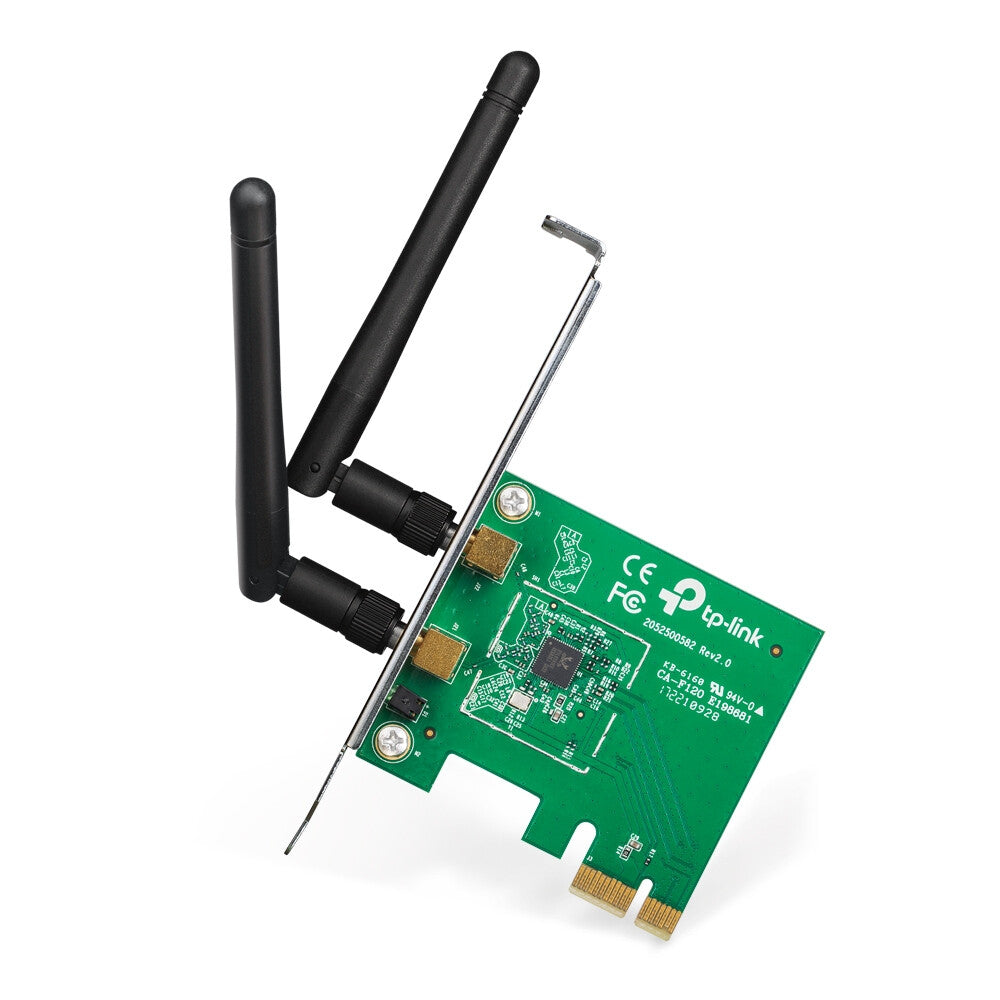

TP-Link TL-WN881ND network card Internal WLAN 300 Mbit/s
What This Product Does

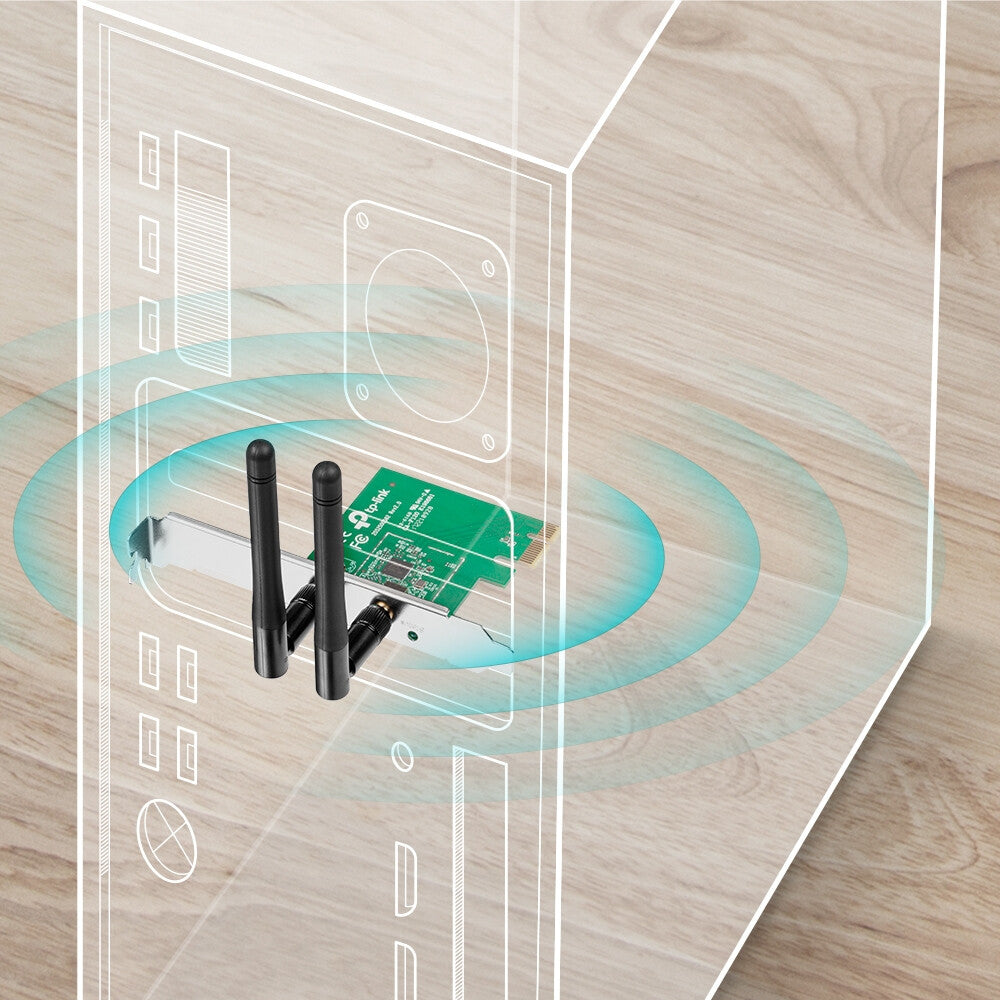

Wireless N PCI Express 2.0(x1) Adapter TL-WN881ND allows you to connect a desktop computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300Mbps, which is beneficial for the online gaming or even HD video streaming.

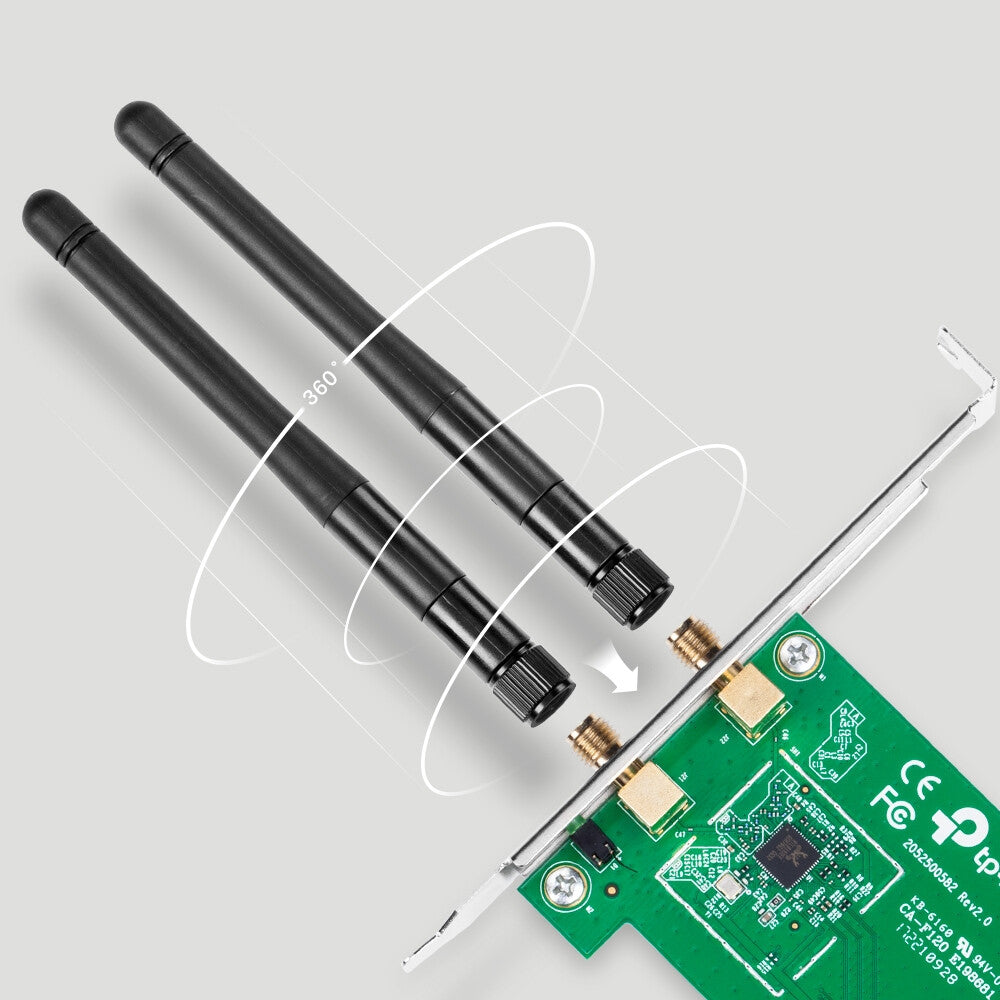

Wireless N – Speed & Range
MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
CCA Technology – Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
Easy Setup
Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.
| Ports & interfaces | |
|---|---|
| Interface | WLAN |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS |
| Modulation | 16-QAM, 64-QAM, DBPSK, DQPSK, OFDM |
| WLAN data transfer rates supported | 11,54,150,300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency range | 2.4 – 2.4835 GHz |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi band | Single-band (2.4 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 300 Mbit/s |
| Design | |
|---|---|
| Operating modes | Infrastructure mode |
| LED indicators | Yes |
| Antenna gain level (max) | 2 dBi |
| Antenna connector type | RP-SMA |
| Antenna direction type | Omni-directional |
| Antenna | Yes |
| Antenna design | External |
| Product colour | Green |
| Component for | PC |
| Internal | Yes |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height | 3.3 mm |
| Depth | 51 mm |
| Width | 59.7 mm |
| Packaging data | |
|---|---|
| Package weight | 170 g |
| Package height | 41.5 mm |
| Package depth | 152.5 mm |
| Package width | 201.5 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Resource CD | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
