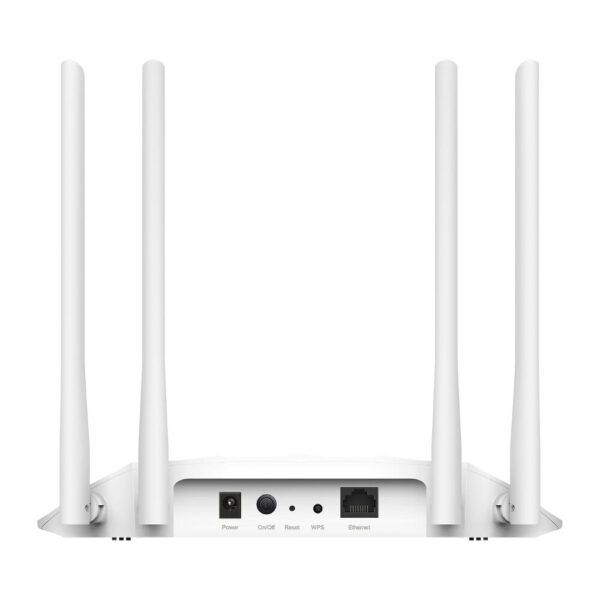

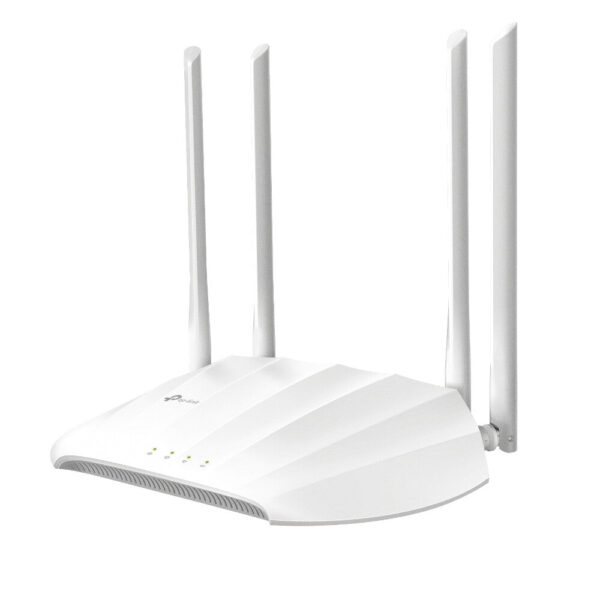

TP-Link TL-WA1201 wireless access point 867 Mbit/s White Power over Ethernet (PoE)
AC1200 Wireless Access Point, AC1200 Dual-Band Wi-Fi, Multiple Modes,
| Features |
| Transmitting power (CE) |
20 – 23 dBm |
| Transmitting power (FCC) |
30 dBm |
| Quality of Service (QoS) support |
Yes |
| Virtual LAN features |
Multicast VLAN |
| VLAN support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
867 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
| Access Control List (ACL) |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Output current |
1.5 A |
| Output voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Active PoE |
| Design |
| WPS push button |
Yes |
| Reset button |
Yes |
| On/off switch |
Yes |
| Product colour |
White |
| Placement |
Table |
| Antenna |
| Antennas quantity |
4 |
| Antenna type |
External |
| Performance |
| Compatible operating systems |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browser |
| Technical details |
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Weight & dimensions |
| Height |
37 mm |
| Depth |
145.5 mm |
| Width |
225 mm |
| Packaging data |
| Package weight |
860 g |
| Package height |
69 mm |
| Package depth |
255 mm |
| Package width |
400 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| PoE adapter included |
Yes |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Sustainability |
| Sustainability compliance |
Yes |
