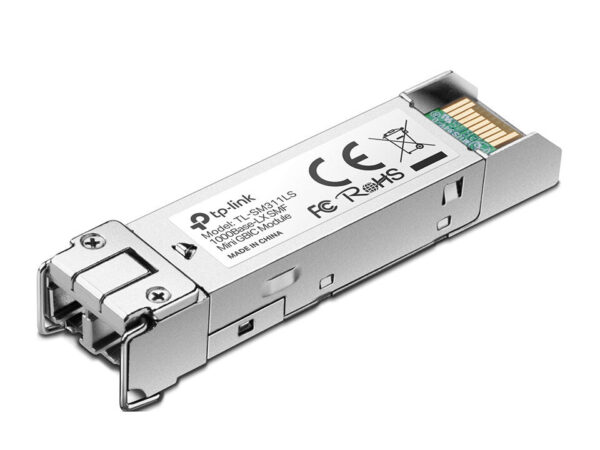

TP-Link TL-SM311LS network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 1310 nm
MiniGBIC, 1310nm, Single-mode, LC/UPC
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
| Performance |
| Networking standards |
IEEE 802.3z |
| Wavelength |
1310 nm |
| Maximum transfer distance |
10000 m |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Fiber optic connector |
LC (UPC) |
| Multi-mode fiber (MMF) supported |
No |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
mini-GBIC/SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 80 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
85369010 |
