TP-Link TL-POE150S v3 Gigabit Ethernet
IEEE 802.3/802.3u/802.3ab/802.3af, 10/100/1000Mbps, PoE

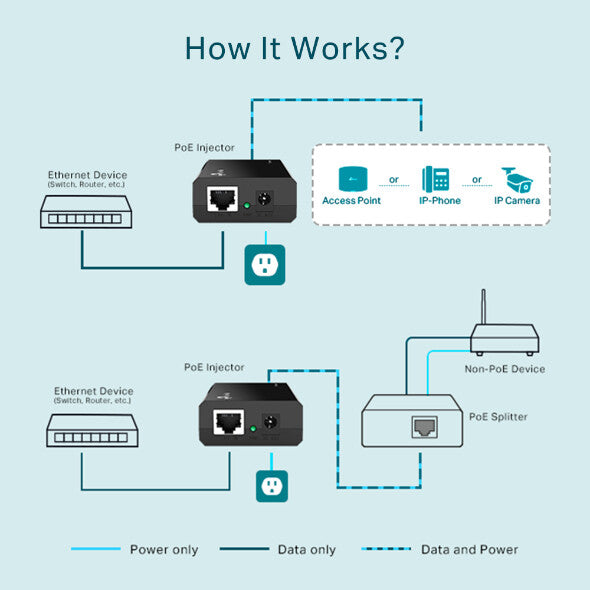

TP-LINK’s PoE Injector TL-POE150S fully complies with IEEE 802.3af standard. No need to buy a PoE switch, you can use the existing non-PoE switch or non-PoE router to connect PoE devices with the help of TL-POE150S.
The PoE Injector TL-POE150S can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent products, to expand your network to where there are no power lines or outlets, where you wish to fix devices like Wireless Access Points, IP Cameras or IP Phones, etc.
| Network |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Power over Ethernet (PoE) |
Yes |
| Cabling technology |
10/100/1000 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Features |
| Certification |
FCC, CE, RoHS |
| Plug and Play |
Yes |
| Product colour |
Black |
| Ports & interfaces |

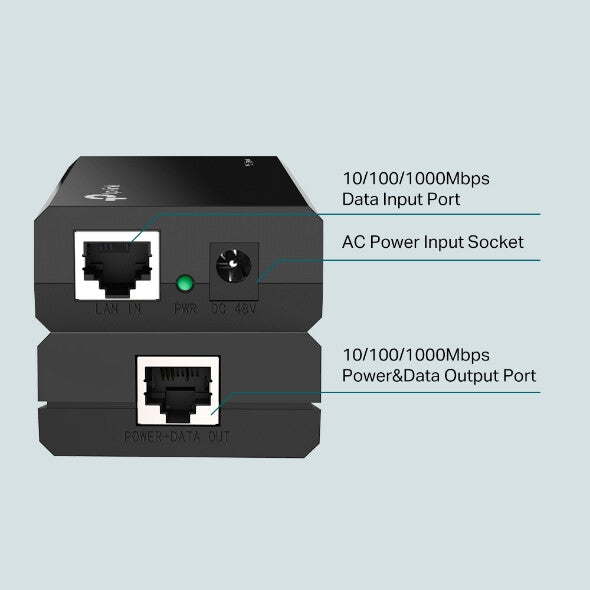

| DC-in jack |
Yes |
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| Input voltage |
48 V |
| Output power |
15.4 W |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
24 mm |
| Depth |
52 mm |
| Width |
81 mm |
| Packaging data |
| Package weight |
350 g |
| Package height |
65 mm |
| Package depth |
198 mm |
| Package width |
165 mm |
| Packaging content |
| Quick installation guide |
Yes |
