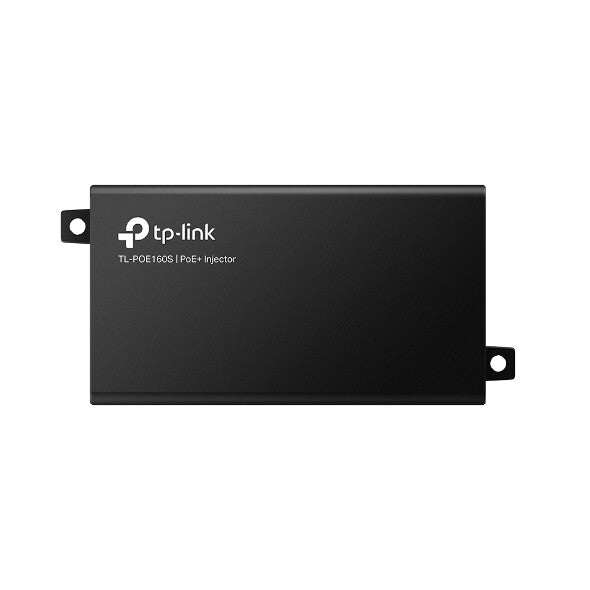

TP-Link PoE+ Injector
PoE+ Injector, Catx, 100m, 30w
The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
| Network |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Power over Ethernet (PoE) |
Yes |
| Cabling technology |
10/100/1000 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Features |
| Certification |
FCC, CE, RoHS |
| LED indicators |
Power |
| Maximum operating distance |
100 m |
| Plug and Play |
Yes |
| Wall mountable |
Yes |
| Product colour |
Black |
| Ports & interfaces |
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 – 240 V |
| Output power |
30 W |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
36.8 mm |
| Depth |
59.4 mm |
| Width |
125 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
460 g |
| Package height |
80 mm |
| Package depth |
230 mm |
| Package width |
170 mm |
| Packaging content |
| Packaging content |
TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits |
| Quick installation guide |
Yes |
| Power cord included |
Yes |
| Number of products included |
1 pc(s) |
| Wall mounting kit |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85044095 |
