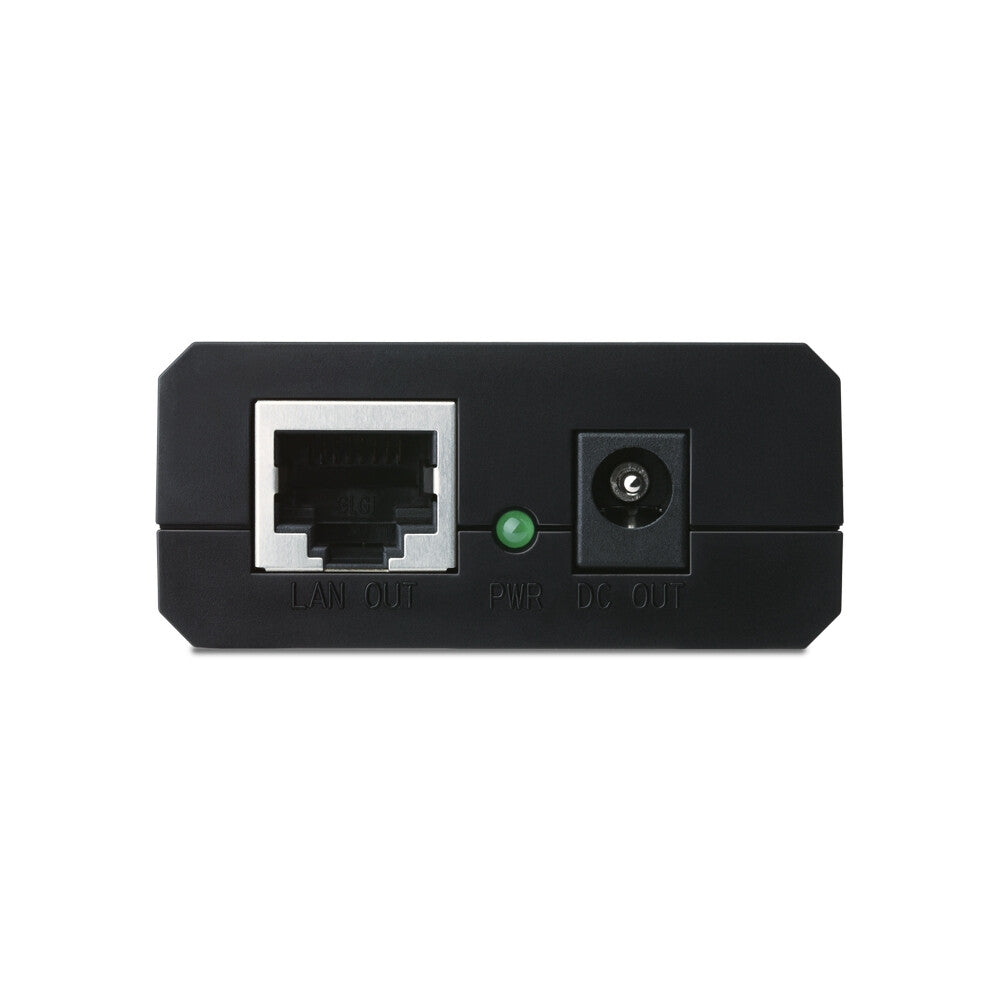

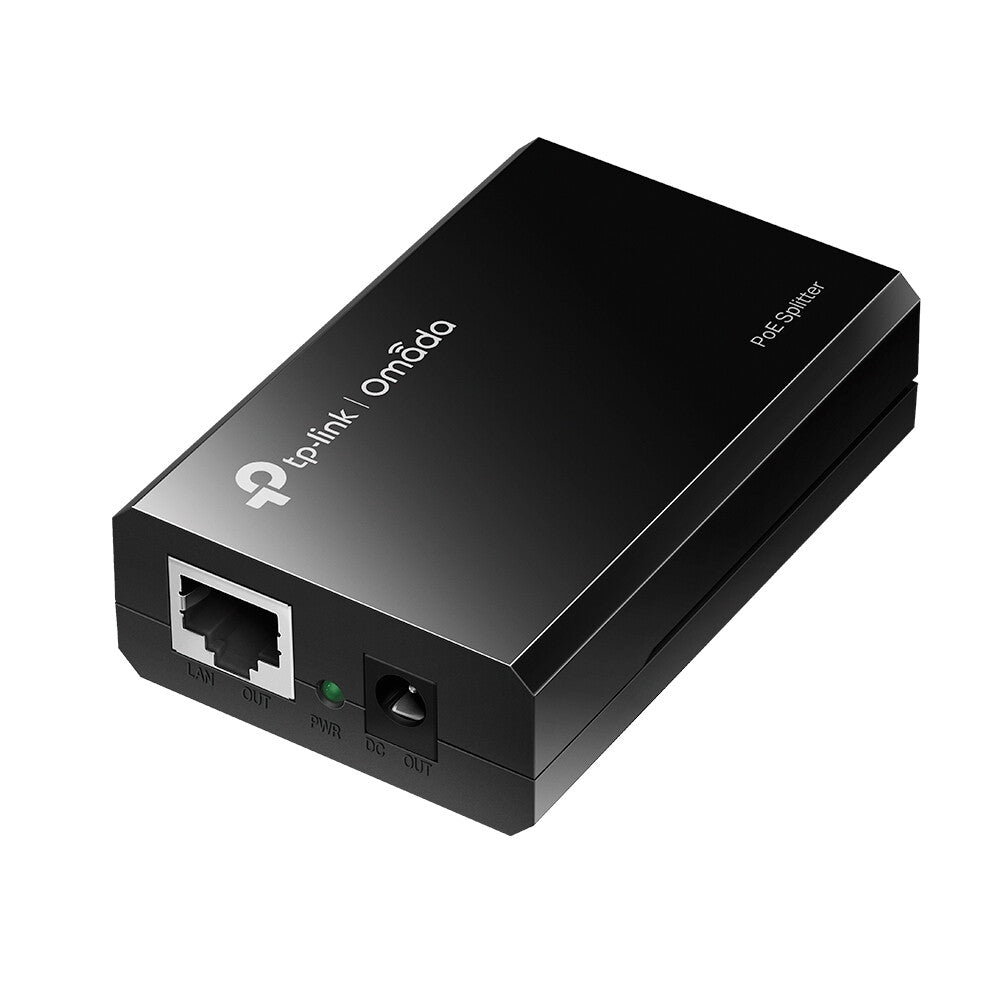

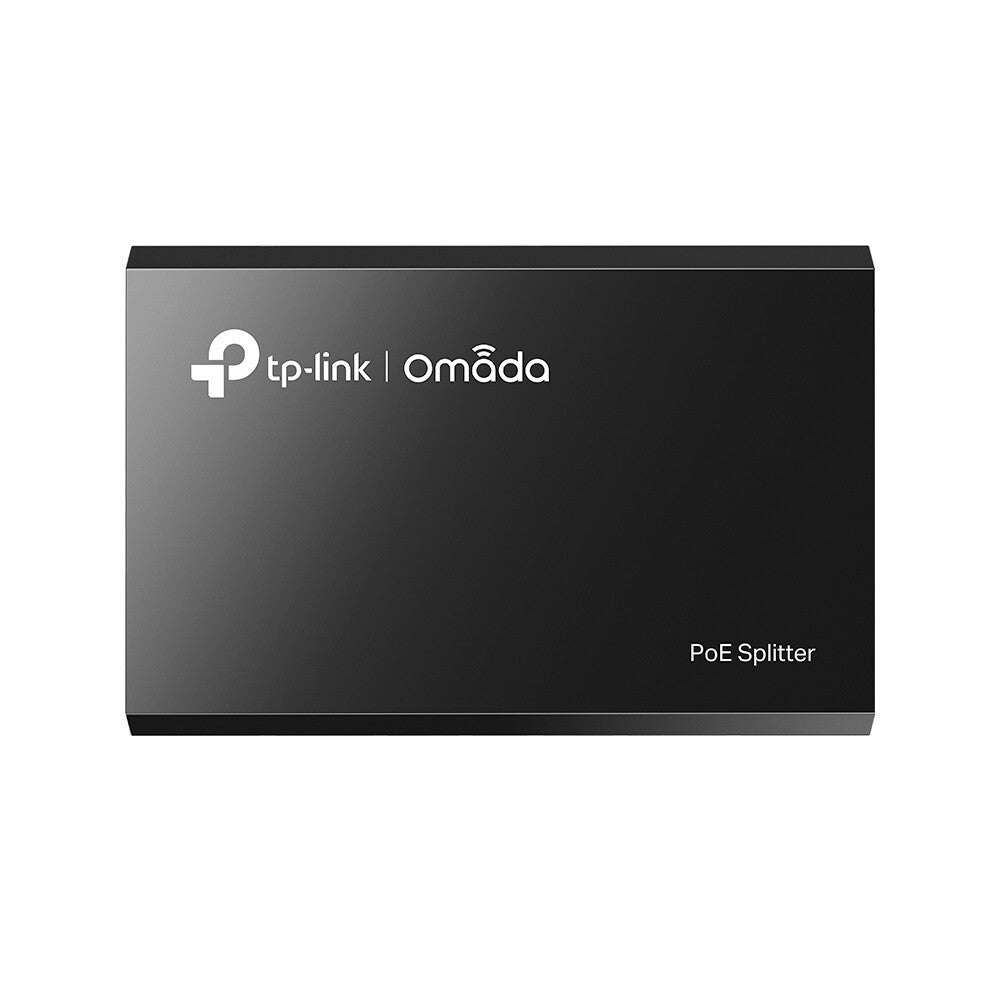

TP-Link Omada PoE Splitter
2× 10/100/1000Mbps RJ45, 100m max, 80.8x54x24 mm
The PoE Splitter POE10R (TL-POE10R) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK’s TL-SF1008P or POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
| Performance |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Design |
| Certification |
FCC, CE |
| Plug and Play |
Yes |
| LED indicators |
Power |
| Product colour |
Black |
| Ports & interfaces |
| DC-out jack |
Yes |
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| Input voltage |
5, 9, 12 V |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage relative humidity (H-H) |
5 – 90% |
| General |
| Product family |
Omada |
| Weight & dimensions |
| Height |
24 mm |
| Depth |
54 mm |
| Width |
80.8 mm |
| Packaging content |
| Package type |
Box |
| Quantity per pack |
1 pc(s) |
| Quick installation guide |
Yes |
