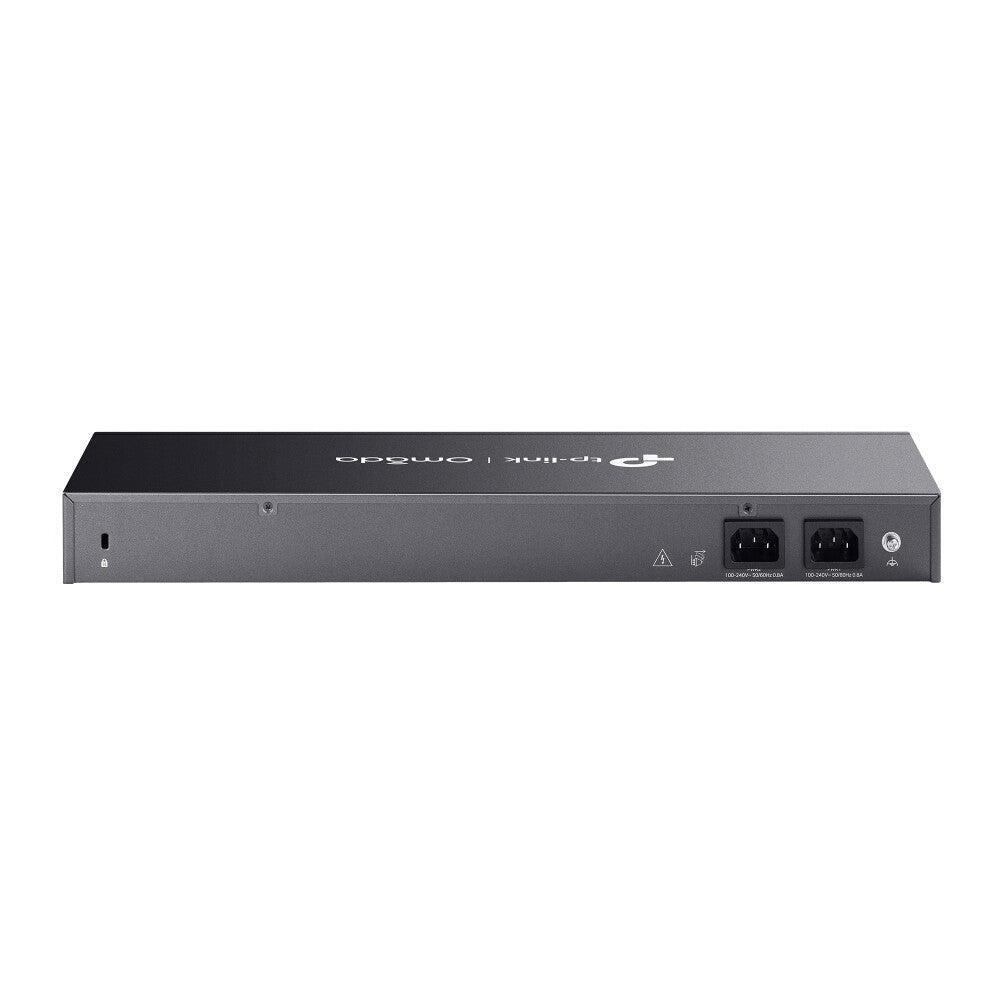

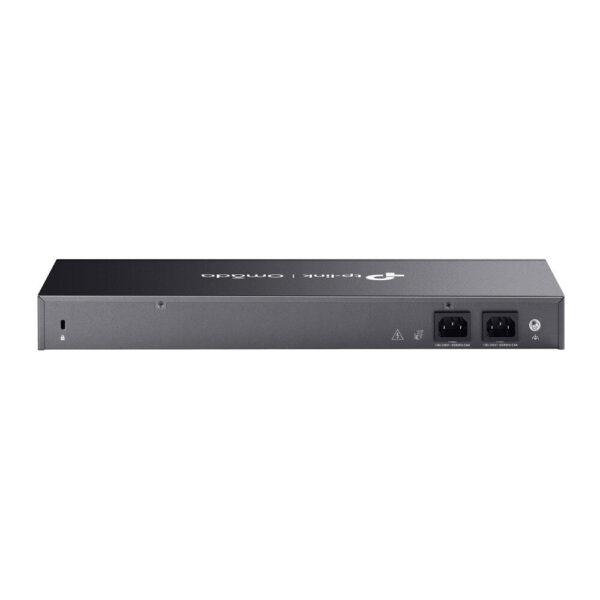

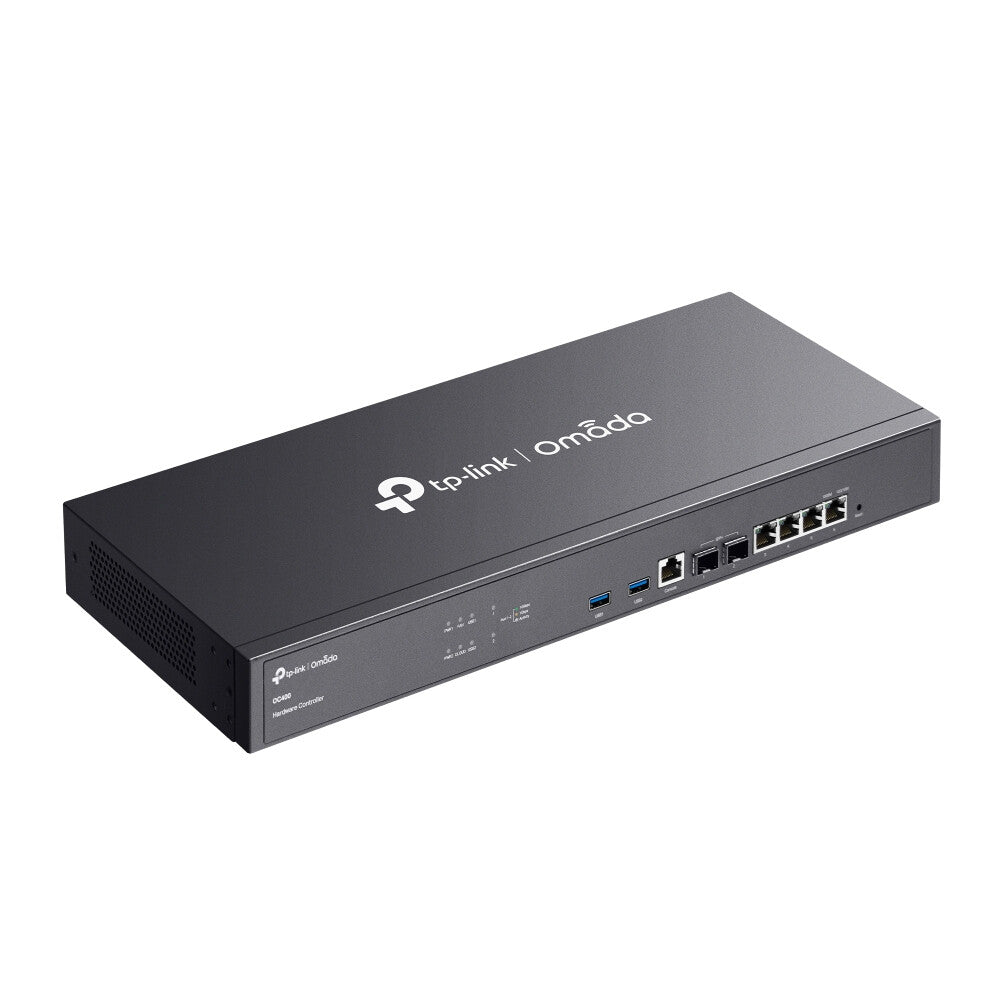

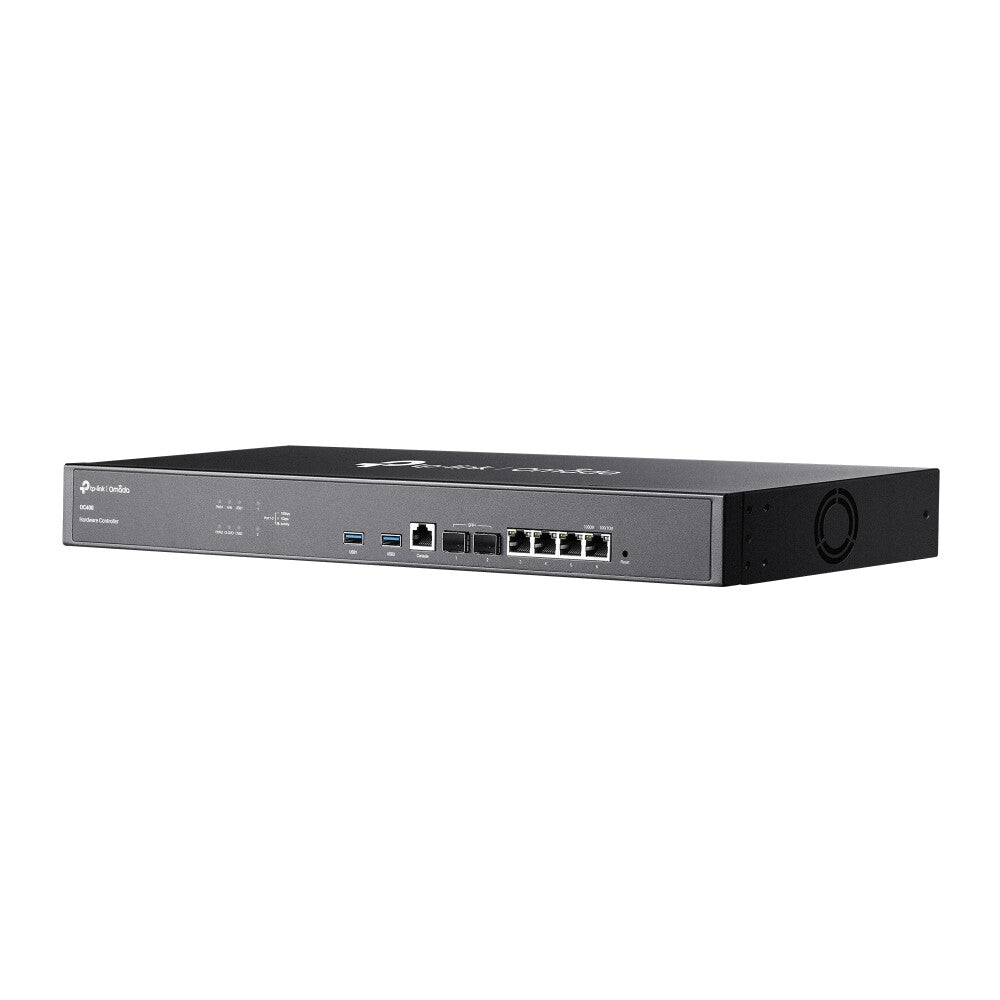

TP-Link Omada Hardware Controller
Omada Hardware Controller 2× 10GE SFP+ Slots, 4× Gigabit RJ45 Ports
Centralized Management
The Omada hardware controller (OC400) for the Omada Software Defined Networking (SDN) platform, supports centralized management for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.* Enjoy cloud service with no license fees with the use of OC400.
| Design |
| LED indicators |
Yes |
| Product colour |
Grey |
| Performance |
| Flash memory |
4 MB |
| SSD capacity |
32 GB |
| Internal memory |
8 MB |
| Internal memory type |
DDR4 |
| Built-in processor |
Yes |
| Control display unit |
No |
| Network |
| Ethernet LAN data rates |
1000,10000 Mbit/s |
| Ports & interfaces |
| DC-in jack |
Yes |
| SFP+ ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
4 |
| Number of console ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Management features |
| Management platform |
Omada App |
| Performance management |
• Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients |
| Reset button |
Yes |
| Power |
| Input frequency |
50/60 Hz |
| Input voltage |
100 – 240 V |
| Weight & dimensions |
| Depth |
180 mm |
| Height |
44 mm |
| Width |
440 mm |
| Packaging content |
| Cables included |
LAN (RJ-45), Power |
| Quick installation guide |
Yes |
| Packaging content |
• Omada Hardware Controller OC400• Quick Installation Guide• Ethernet Cable• Power Cord• Rackmount Kit |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| General |
| Product family |
Omada |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
