TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)
802.3af/A PoE, 24V Passive PoE, 2.4GHz: 2 – 3dBi, 5GHz: 2 – 4dBi, IEEE 802.11a/b/g/n/ac, 2.4GHz, 5GHz
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

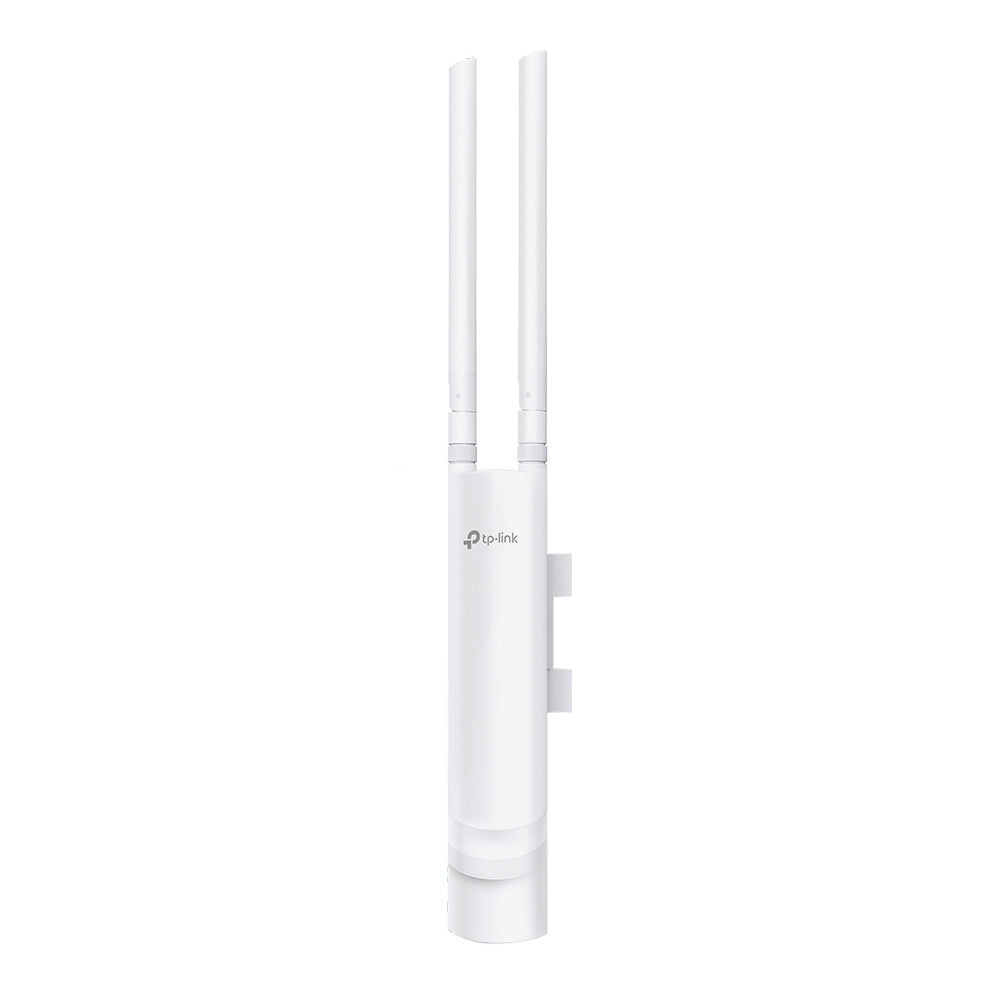

Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be – efficient and intuitive.
| Features |
| Transmitting power (CE) |
27 dBm |
| Transmitting power (FCC) |
22 dBm |
| BeamForming |
Yes |
| Quality of Service (QoS) support |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| Rate limiting |
Yes |
| Virtual LAN features |
VLAN mapping |
| VLAN support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Frequency band |
2.4 – 5 GHz |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
1200 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
| Access Control List (ACL) |
Yes |
| Number of SSID supported |
16 |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| MAC address filtering |
Yes |
| Security algorithms |
802.1x RADIUS |
| Management features |
| Syslog |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |

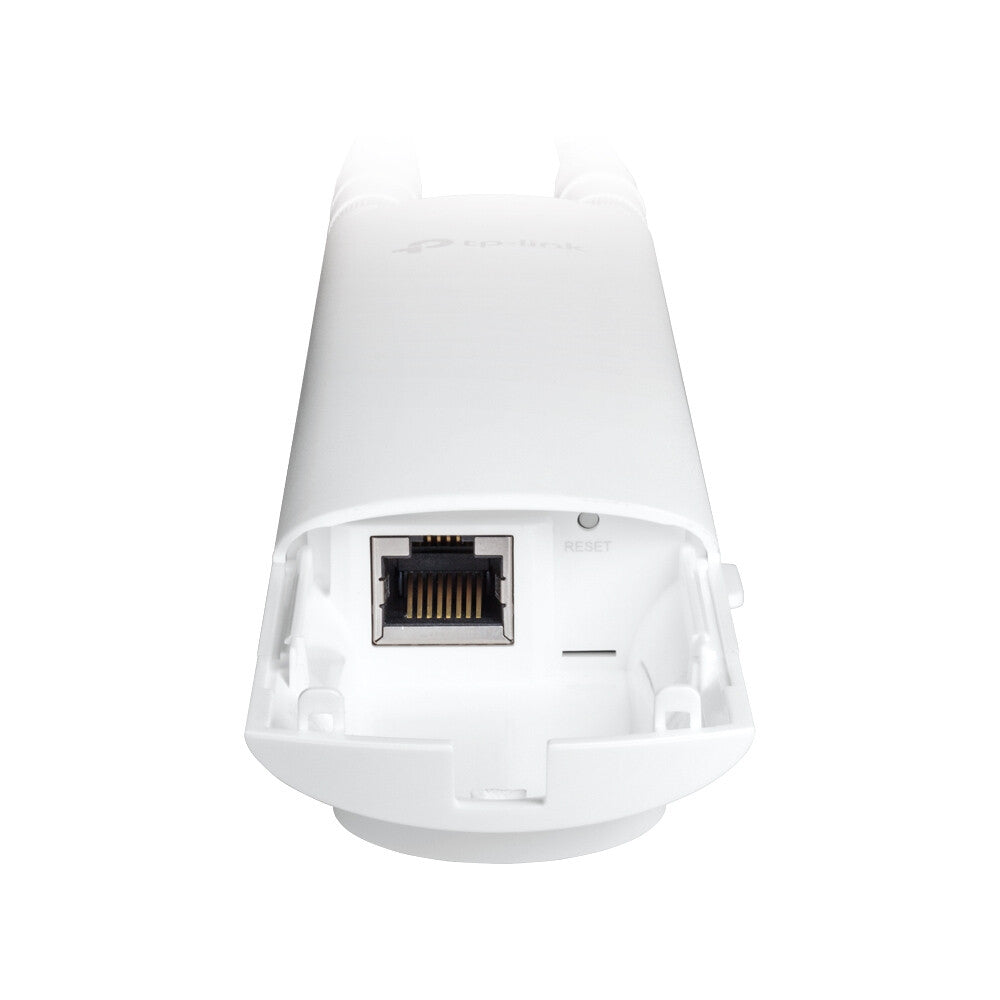

| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (typical) |
10.5 W |
| Output voltage |
24 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Design |
| Reset button |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
White |

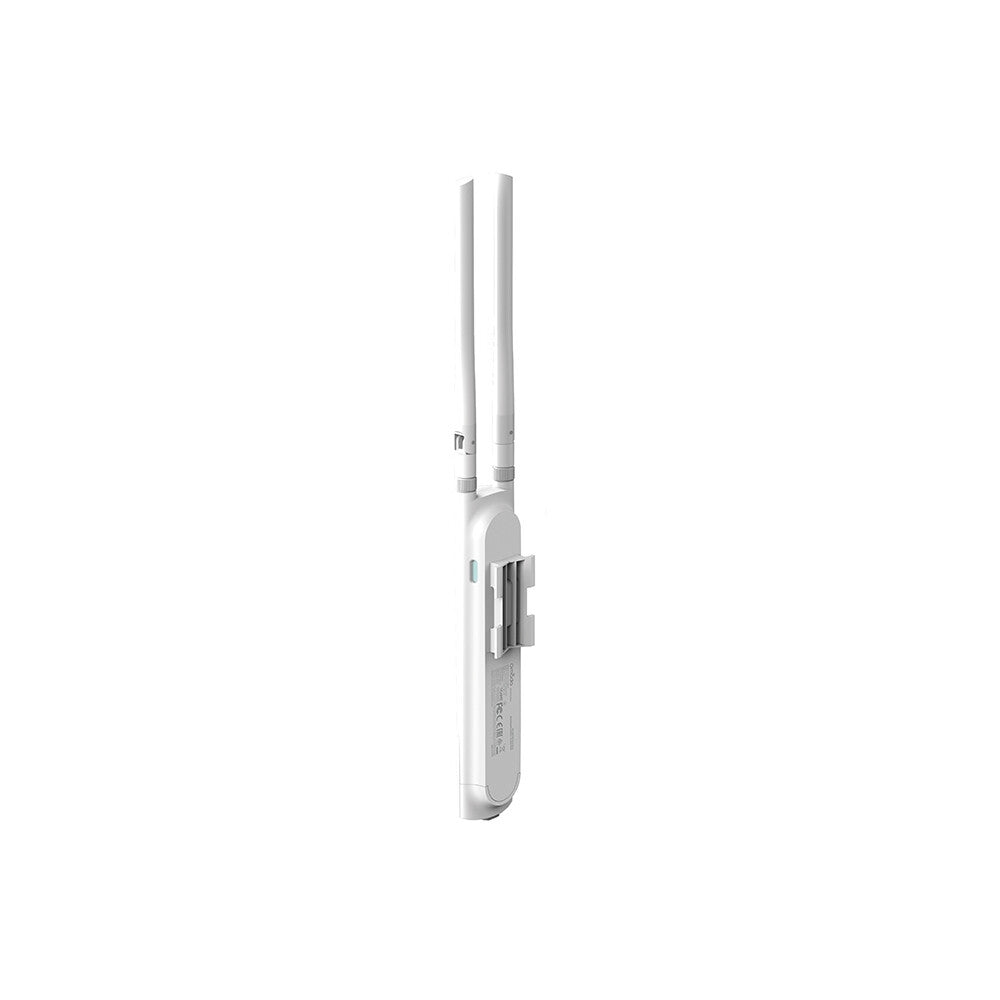

| Placement |
Pole, Wall |
| Antenna |
| Antenna gain level (max) |
4 dBi |
| Antennas quantity |
2 |
| Antenna features |
Detachable antenna |
| Antenna direction type |
Omni-directional |
| Antenna type |
External |
| Performance |
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| General |
| Product family |
Omada |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions |
| Height |
27 mm |
| Depth |
46 mm |
| Width |
215 mm |
| Packaging data |
| Package weight |
640 g |
| Package height |
100 mm |
| Package depth |
270 mm |
| Package width |
140 mm |
| Packaging content |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
-30 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Sustainability |
| Sustainability compliance |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
