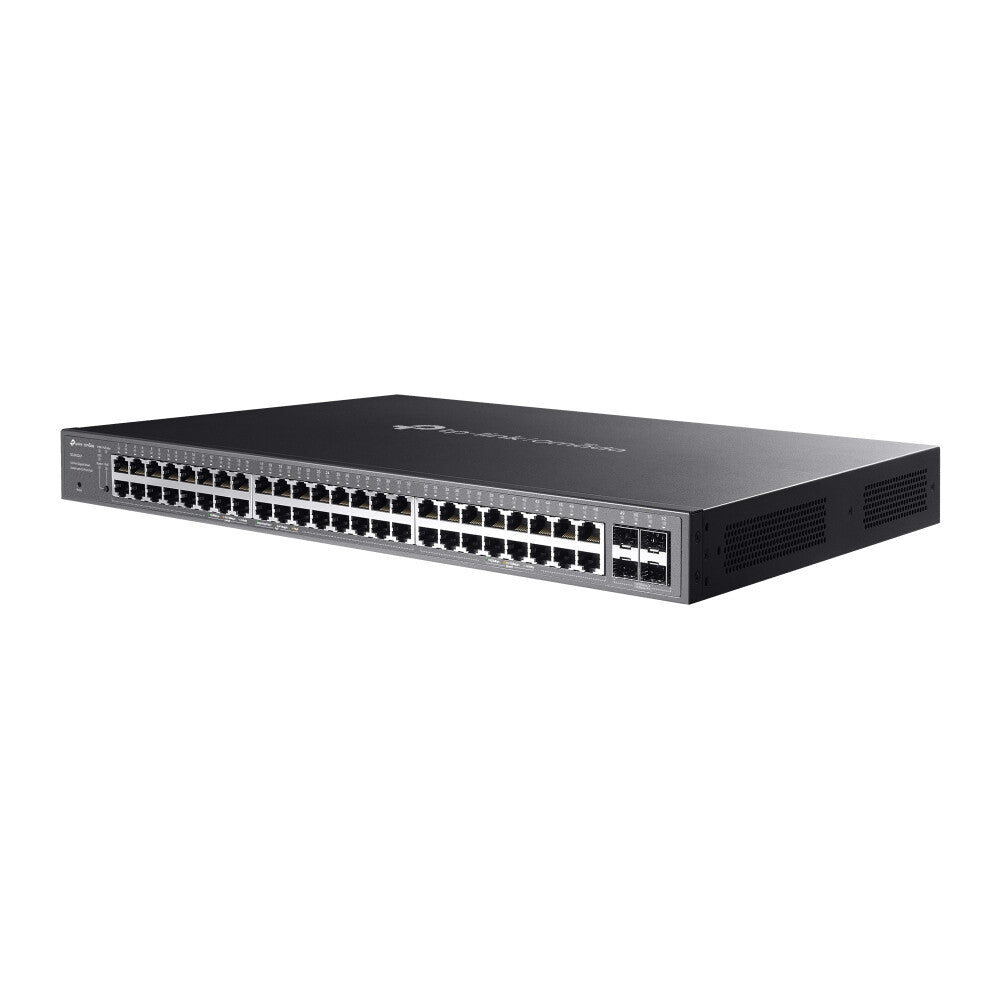

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
32× 10/100/1000 Mbps PoE+ RJ45, 16× 10/100/1000 Mbps non-PoE RJ45, 4× Gigabit SFP, 104 Gbps, 16 K MAC, 9 KB Jumbo, 440x330x44 mm
Power over Ethernet, Flexible Network Deployment
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
| Management features |
| MIB support |
Y |
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L2+ |
| Switch type |
Managed |
| Ports & interfaces |

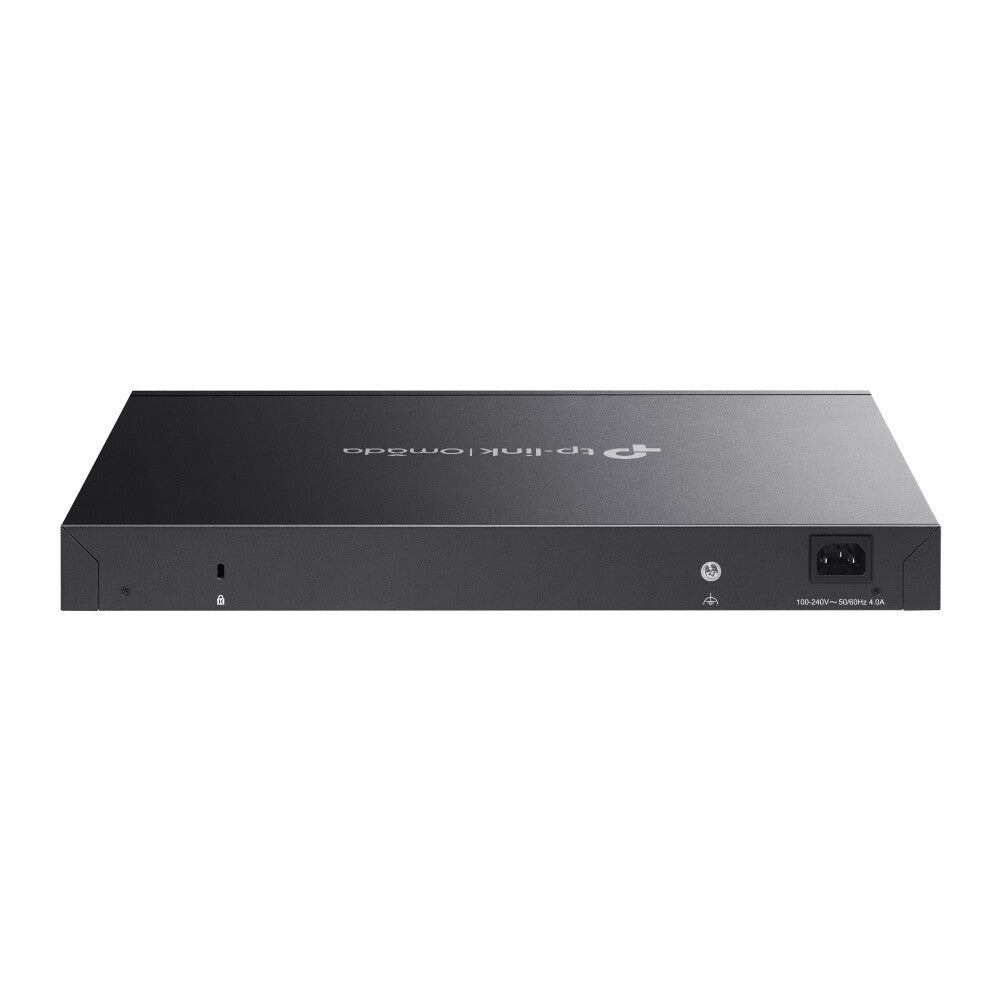

| Power connector |
AC-in jack |
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| VLAN support |
Yes |
| Active link detection |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| IP routing |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x |
| Data transmission |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
77.37 Mpps |
| Switching capacity |
104 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| MAC address filtering |
Yes |
| SSH/SSL support |
Yes |
| Security algorithms |
SNMP, SNMPv2, SNMPv3 |
| Authentication type |
RADIUS |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP relay, DHCP server |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| General |
| Product family |
Omada |
| Power |
| Power consumption (max) |
304.5 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
230 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
32 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
1035.4 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
330 mm |
| Width |
440 mm |
