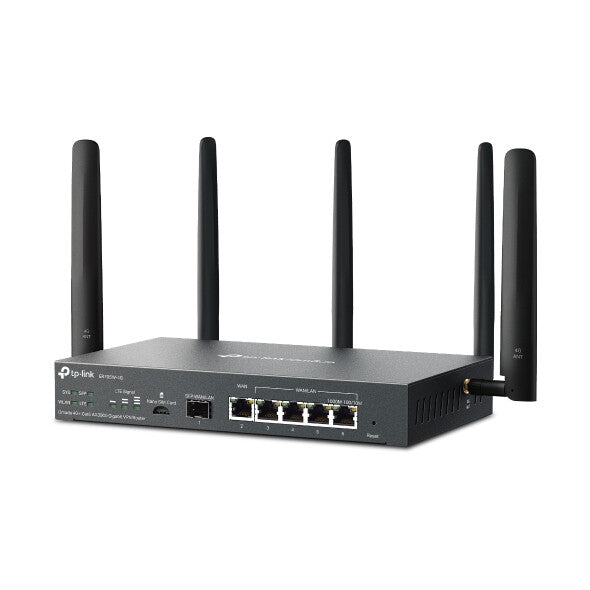

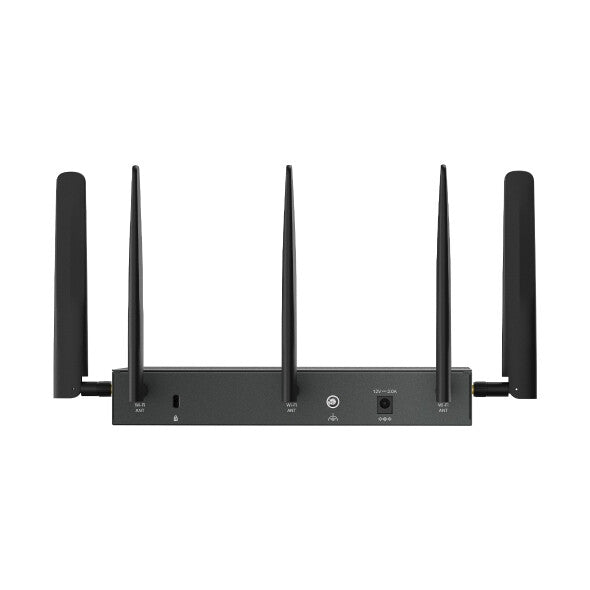

TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Router
2.4 GHz (574 Mbps), 5 GHz (2402 Mbps), 128 MB NAND, 512 MB DDR4, 1x Gigabit SFP WAN/LAN, 1x Gigabit WAN, 4x Gigabit LAN/WAN, 226x131x35 mm
Access 4G+ Speed
Anywhere, Anytime
Omada 4G+ Cat6 AX3000 Gigabit VPN Router
– 4G+ Cat6 up to 300 Mbps
– 2402 Mbps + 574 Mbps*
– 6× Gigabit Ethernet Ports
– 1× Nano SIM Card Slot
– IPSec/SSL/ WireGuard /OpenVPN/L2TP VPN
– Centralized Management
– Load Balancing
– Omada App
Always-Online with AX3000 WiFi 6
– Dual Band
– HE160
– OFDMA
– 1024 QAM
| WAN connection |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
Yes |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
| WLAN data transfer rate (max) |
2402 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
| VPN Passthrough |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
| 4G bands supported |
800,850,900,1800,2100,2300,2500,2600 MHz |
| SIM card type |
NanoSIM |
| 4G standard |
LTE-TDD & LTE-FDD |
| 3G standards |
HSDPA, HSUPA, WCDMA |
| Mobile network generation |
4G |
| Ports & interfaces |
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
5 |
| Management features |
| MU-MIMO technology |
Yes |
| MIMO |
Yes |
| Reset button |
Yes |
| Bandwidth control |
Yes |
| Security |
| NAT functionality |
• One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering†• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP |
| Network address translation (NAT) |
Yes |
| URL filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Protocols |
| DHCP server |
Yes |
| Design |
| LED indicators |
LAN, LTE, Status, System, WAN |
| Product colour |
Black |
| Product type |
Desktop/pole router |
| General |
| Product family |
Omada |
| Antenna |
| Antennas quantity |
5 |
| Antenna design |
External |
| Features |
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| Internal memory type |
DDR4 |
| Power |
| Power source type |
AC |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Storage relative humidity (H-H) |
5 – 90% |
| Weight & dimensions |
| Width |
226 mm |
| Depth |
131 mm |
| Height |
35 mm |
