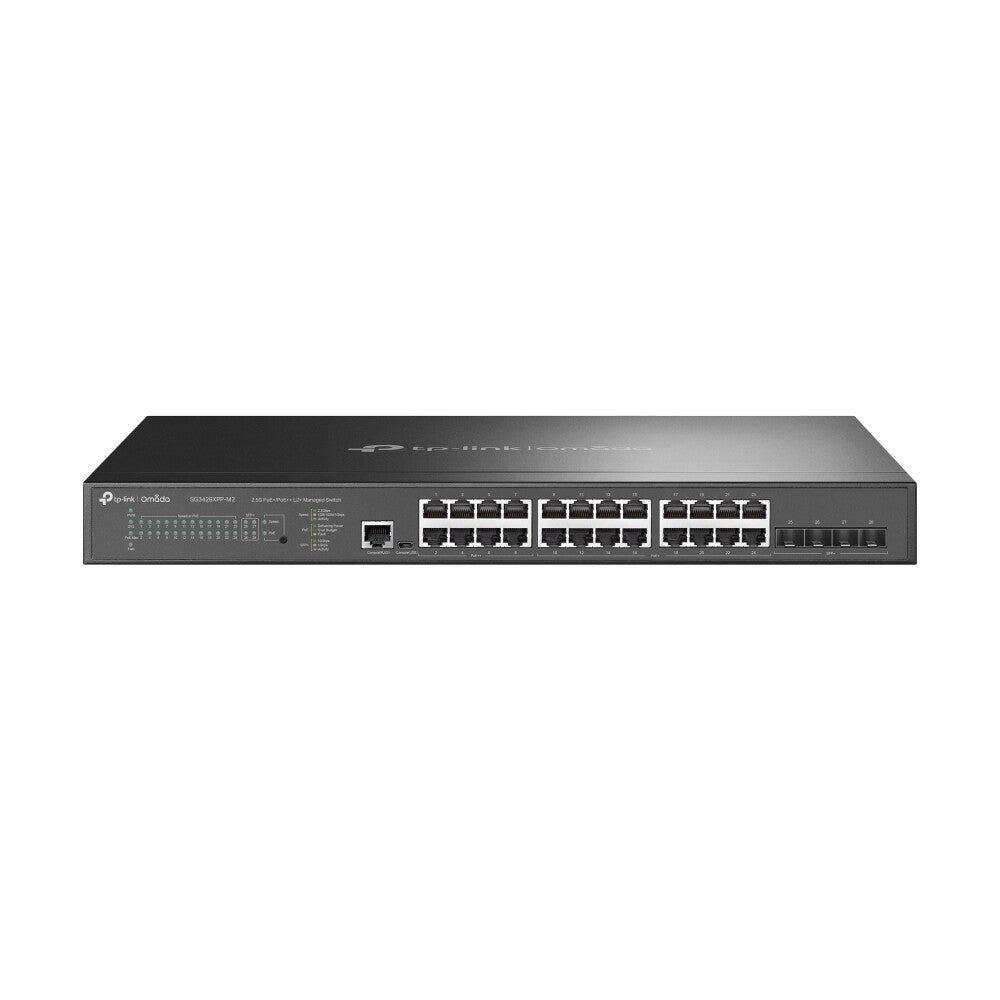

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
8× 2.5 Gbps RJ45 PoE++, 16× 2.5 Gbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 200 Gbps, 32 K MAC, 9 KB Jumbo, 440×330×44 mm
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Management features |
| MIB support |
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45/Micro-USB |
| SFP+ module slots quantity |
4 |
| 2.5G Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| VLAN support |
Yes |
| IPv4 routes |
48 |
| IPv6 routes |
48 |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500,10000 Mbit/s |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
16 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of IP interfaces |
32 |
| Number of static routes |
48 |
| Static route |
Yes |
| Number of queues |
8 |
| Store-and-forward |
Yes |
| Forwarding rate |
148.8 Mpps |
| Switching capacity |
200 Gbit/s |
| MAC address table |
32000 entries |
| Security |
| Static port security |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| IP-MAC-Port binding |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication |
| Security algorithms |
HTTPS, SSH, SSH-2, SSL/TLS |
| Authentication type |
AAA, IEEE 802.1x, RADIUS, TACACS+ |
| Queue scheduling algorithms |
SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection |
Yes |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
| Multicast Listener Discovery (MLD) snooping |
MLD v1/v2 |
| Multicast support |
Yes |
| Protocols |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Management protocols |
SNMP v1/v2c/v3 |
| Design |
| Number of fans |
3 fan(s) |
| Redundant fans support |
Yes |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| General |
| Product family |
Omada |
| Performance |
| Flash memory |
32 MB |
| Internal memory |
256 MB |
| Memory type |
DRAM |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Power |
| Power consumption (max) |
629.1 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power source |
AC/PoE |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
500 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
8 |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
2153.45 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
330 mm |
| Width |
440 mm |
| Sustainability |
| Sustainability compliance |
Yes |
| Packaging data |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC |
