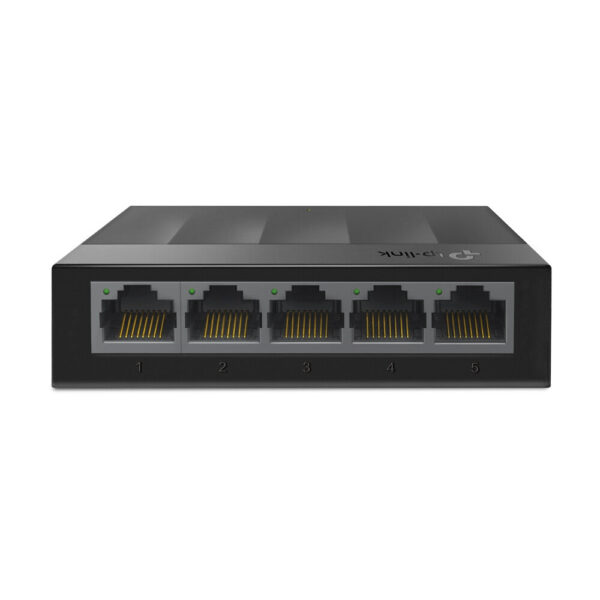

TP-Link LS1005G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

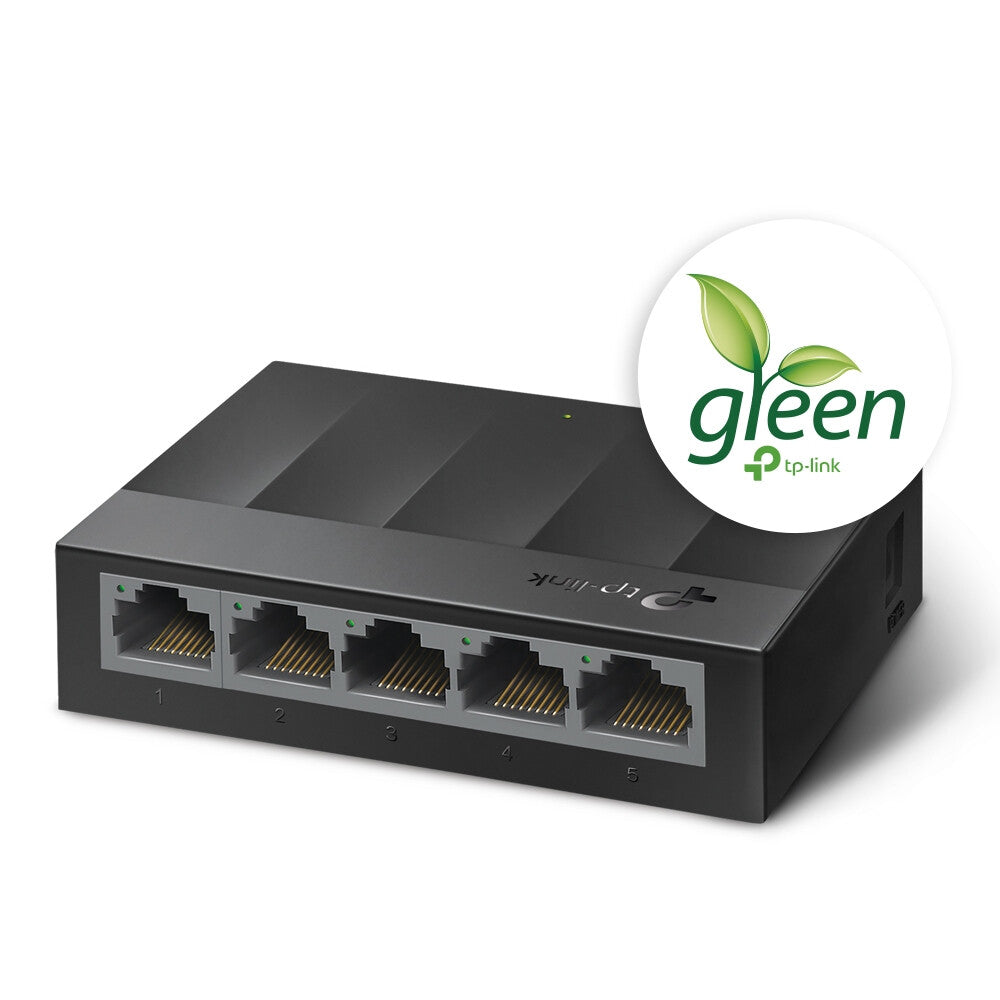

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Management features | |
---|---|
Switch type | Unmanaged |
Ports & interfaces | |
---|---|
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Network | |
---|---|
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
10G support | No |
Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
Data transmission | |
---|---|
Packet buffer memory | 1.5 MB |
Jumbo frames | 16000 |
Jumbo frames support | Yes |
Store-and-forward | Yes |
Forwarding rate | 7.4 Mpps |
Switching capacity | 10 Gbit/s |
MAC address table | 2000 entries |
Design | |
---|---|
Certification | CE, FCC, RoHS |
International Protection (IP) code | IP20, IP40 |
Wall mountable | Yes |
LED indicators | Yes |
Housing material | Plastic |
Product colour | Black |
Rack mounting | No |
Power | |
---|---|
Power consumption (max) | 3.7 W |
Input current | 0.6 A |
DC input voltage | 5 V |
Power supply included | Yes |
Power over Ethernet (PoE) | |
---|---|
Power over Ethernet (PoE) | No |
Operational conditions | |
---|---|
Heat dissipation | 12.617 BTU/h |
Storage relative humidity (H-H) | 5 – 90% |
Operating relative humidity (H-H) | 10 – 90% |
Storage temperature (T-T) | -40 – 70 °C |
Operating temperature (T-T) | 0 – 40 °C |
Weight & dimensions | |
---|---|
Height | 23 mm |
Depth | 72 mm |
Width | 90 mm |
Packaging data | |
---|---|
Package type | Box |
Quick start guide | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 85176990 |
