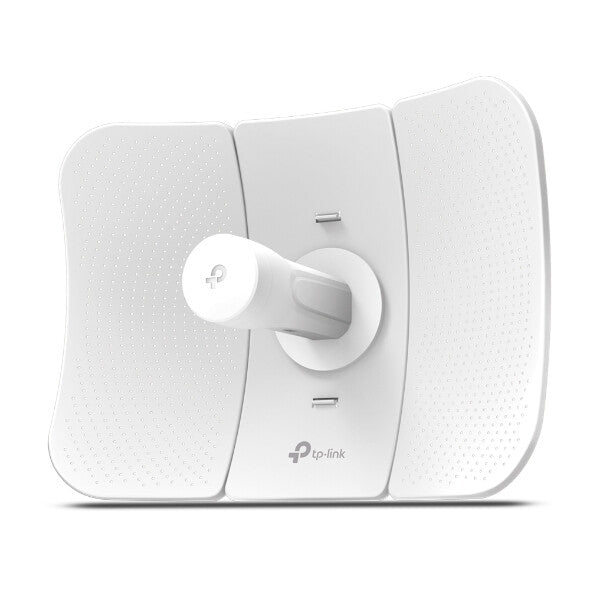

TP-Link CPE605 network antenna 23 dBi
150Mbps, 5GHz, 23dBi, 64MB DDR2, 350x255x207 mm
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
Professional-standard 23dBi Directional
Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics and retail.
Pharos Control – Centralized Management System
CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.
| Performance |
| Internal memory |
64 MB |
| Internal memory type |
DDR2 |
| Flash memory |
8 MB |
| Processor model |
Atheros MIPS 74Kc |
| Processor frequency |
560 MHz |
| Built-in processor |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11n |
| Frequency band |
5 GHz |
| Antenna gain level (max) |
23 dBi |
| Features |
| Certification |
CE, FCC |
| Product colour |
White |
| Housing material |
Plastic |
| Power |
| Input voltage |
16 – 27 V |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85177100 |
