TP-Link AX5400 VDSL Whole Home Mesh Wi-Fi 6 System
High-Quality Telephony Superior Mesh WiFi, Everywhere
AX5400 VDSL Mesh WiFi 6 Modem Router
More Roads. Less Hassle
Integrated with a VDSL/ADSL modem, WiFi 6 and TP-Link Mesh technology, Deco X73-DSL saves you a fortune on the DSL modem equipment, elivering an excellent whole-home WiFi experience.
Meet the Potent Mesh WiFi 6
Armed with WiFi 6 technology, Deco whole home mesh WiFi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.
Super VDSL for Faster Speeds
The Deco X73-DSL features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350 Mbps, 3.5x faster than its VDSL2 predecessor. The integrated DSL port also supports all standard DSL connections.
More Connectivity with Fully Gigabit & USB 3.0
Deco X73-DSL brings more connectivity to access applications through 4× Gigabit Ethernet WAN/LAN ports. Both Ethernet ports support to be used as backup broadband access points, such as an ordinary wireless router. Also, equipped with USB 3.0 port, you can enjoy local storage, connect to a media server, and remote access via FTP server faster than ever.
Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
Let the Experts Secure Your Home
Customize your home network with enhanced security using TP-Link HomeShield’s kit of built-in features. Whether you’re identifying network security holes, limiting the time your children spend online, or blocking websites, HomeShield gives you the tools you need to fully manage your network.
Setup Just Got a Lot Easier
Unbox Deco, install the app, and then simply follow the on-screen directions. The Deco will take care of the rest and get your network up and running in minutes.
WiFi Made Easy
Easy Management
Manage your WiFi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.
Voice Control
Pair with Alexa to control Deco X73-DSL with simple voice commands. Enjoy the convenient life.
All Decos Work Together
Deco X73-DSL is compatible with every other Deco model to form a mesh network. Expand mesh WiFi coverage anytime by simply adding more Decos.
| Design | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Reset button | Yes |
| Transmit power | 23 dBmW |
| Maximum coverage | 270 m² |
| Number of devices supported | 200 |
| Antennas quantity | 4 |
| Antenna type | Internal |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| WLAN data transfer rate (first band) | 4804 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| DSL features | |
|---|---|
| VDSL2 | Yes |
| ADSL2+ | Yes |
| ADSL2 | Yes |
| ADSL | Yes |
| Features | |
|---|---|
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| BeamForming | Yes |
| Firewall security | SPI |
| Port forwarding | Yes |
| Quality of Service (QoS) support | Yes |
| Processor cores | 2 |
| Processor frequency | 1 GHz |
| Built-in processor | Yes |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |

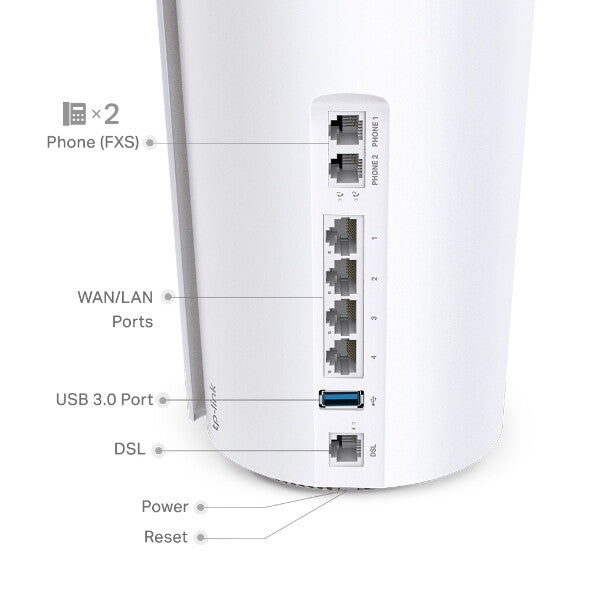

| Ports & interfaces | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85171800 |
| Weight & dimensions | |
|---|---|
| Height | 210.5 mm |
| Depth | 123 mm |
| Width | 130 mm |
| Packaging content | |
|---|---|
| Number of units included | 1 pc(s) |
| AC adapter included | Yes |
| Number of products included | 1 pc(s) |
