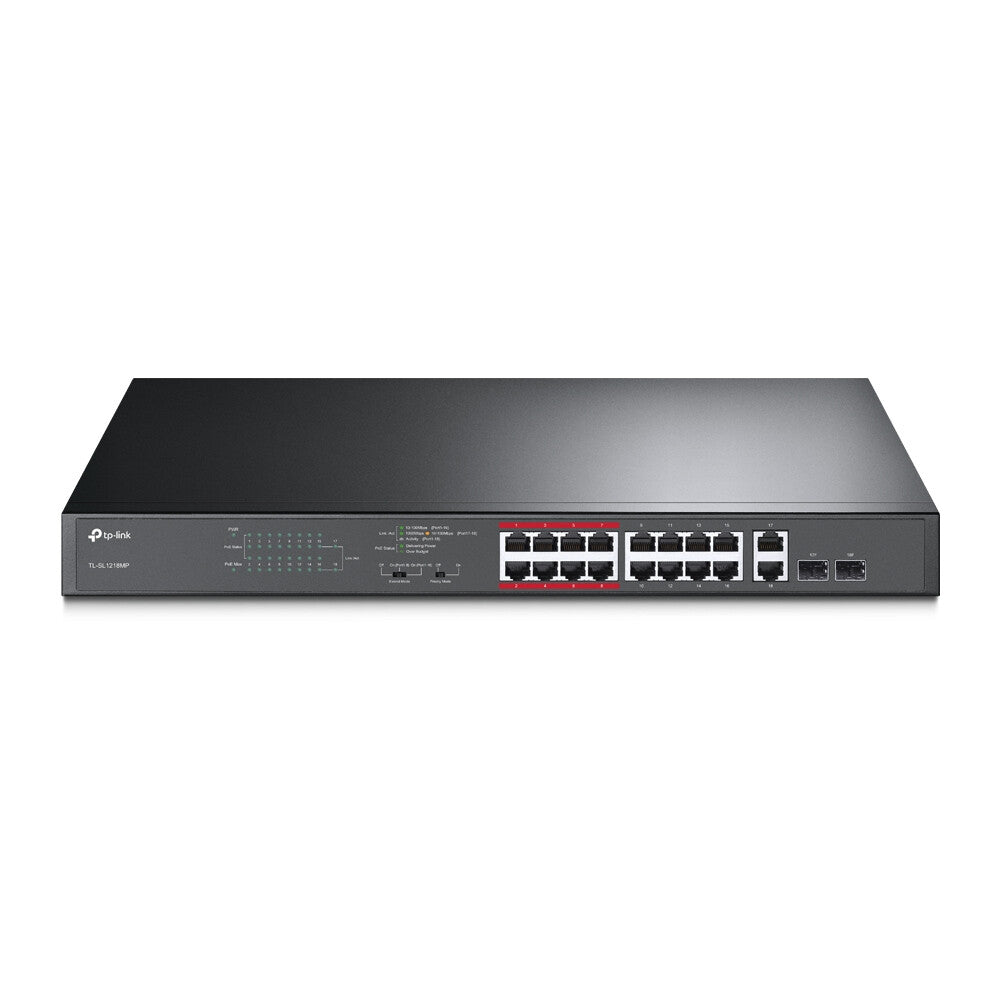

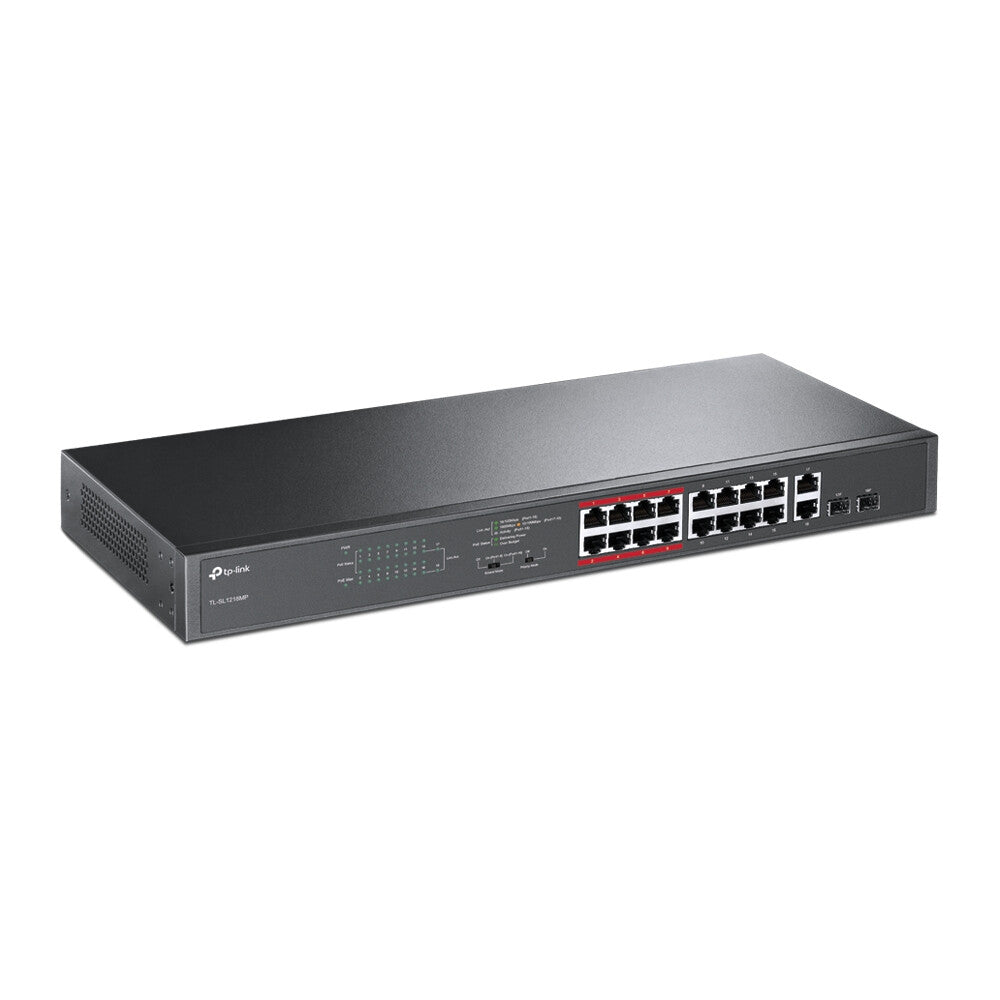

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
16 PoE, 10/100Mbps RJ45, 2 Combo Gigabit SFP Slots, 2 Fans, 100-240V AC, 50/60 Hz, 7.2 Gbps
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Combo SFP ports quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Fast Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Switching capacity |
7.2 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| MAC address filtering |
Yes |
| Design |
| Number of fans |
2 fan(s) |
| LED indicators |
LAN, PoE, Status |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
Yes |
| Power |
| Power consumption (typical) |
18.7 W |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
192 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
741.15 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging data |
| Manual |
Yes |
| User guide |
Yes |
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
