StarTech.com 5m CAT6a Ethernet Cable – 10 Gigabit Shielded Snagless RJ45 100W PoE Patch Cord – 10GbE STP Network Cable w/Strain Relief – Grey Fluke Tested/Wiring is UL Certified/TIA
5 m CAT6a Patch Cable | Shielded (STP) | Snagless | 100% Copper Wire | Grey

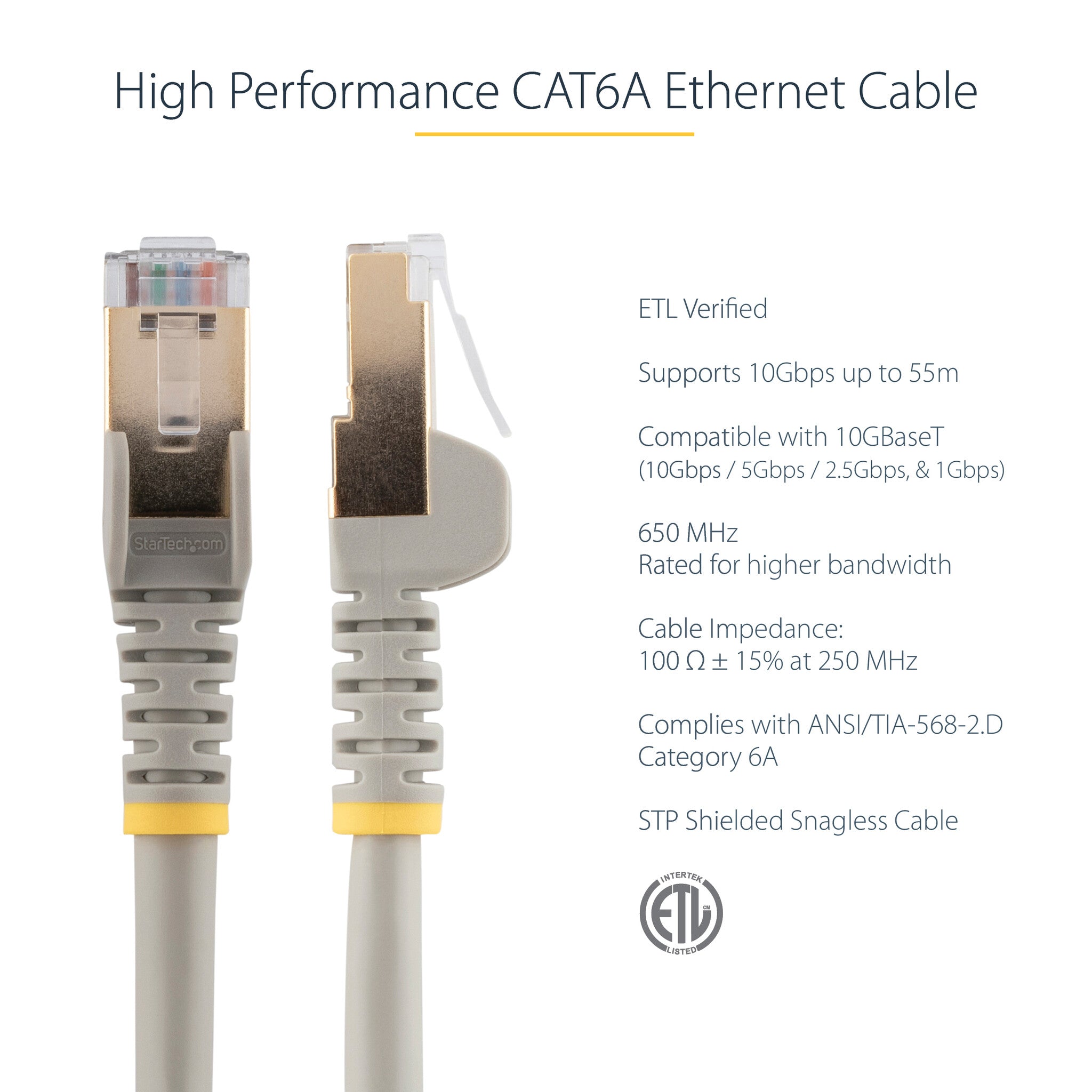

This CAT6a Ethernet cable meets all Category 6a cable specifications. It ensures reliable 10Gb connections between your network devices.
Shield Your Network
Tested for up to 500MHz frequency, each CAT6a cable is more than suitable for 10GBase-T Ethernet networks.
Built for quality performance, the cable features 100% copper and foil-shielded, twisted-pair wiring. The cable is designed to keep the data signals traveling through your network free from noise and interference. It’s perfect in environments that are prone to large amounts of electromagnetic interference (EMI/RFI).
Protect Your Equipment
This CAT6a patch cable is built using 100% copper wire and is tested to comply with ANSI/TIA 568 C.2 Category 6a requirements. We don’t use copper-clad aluminum (CCA) wire which is subject to problems like weak power delivery, heat buildup, equipment damage and possibly fire.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
Easily Install Your Network Cables

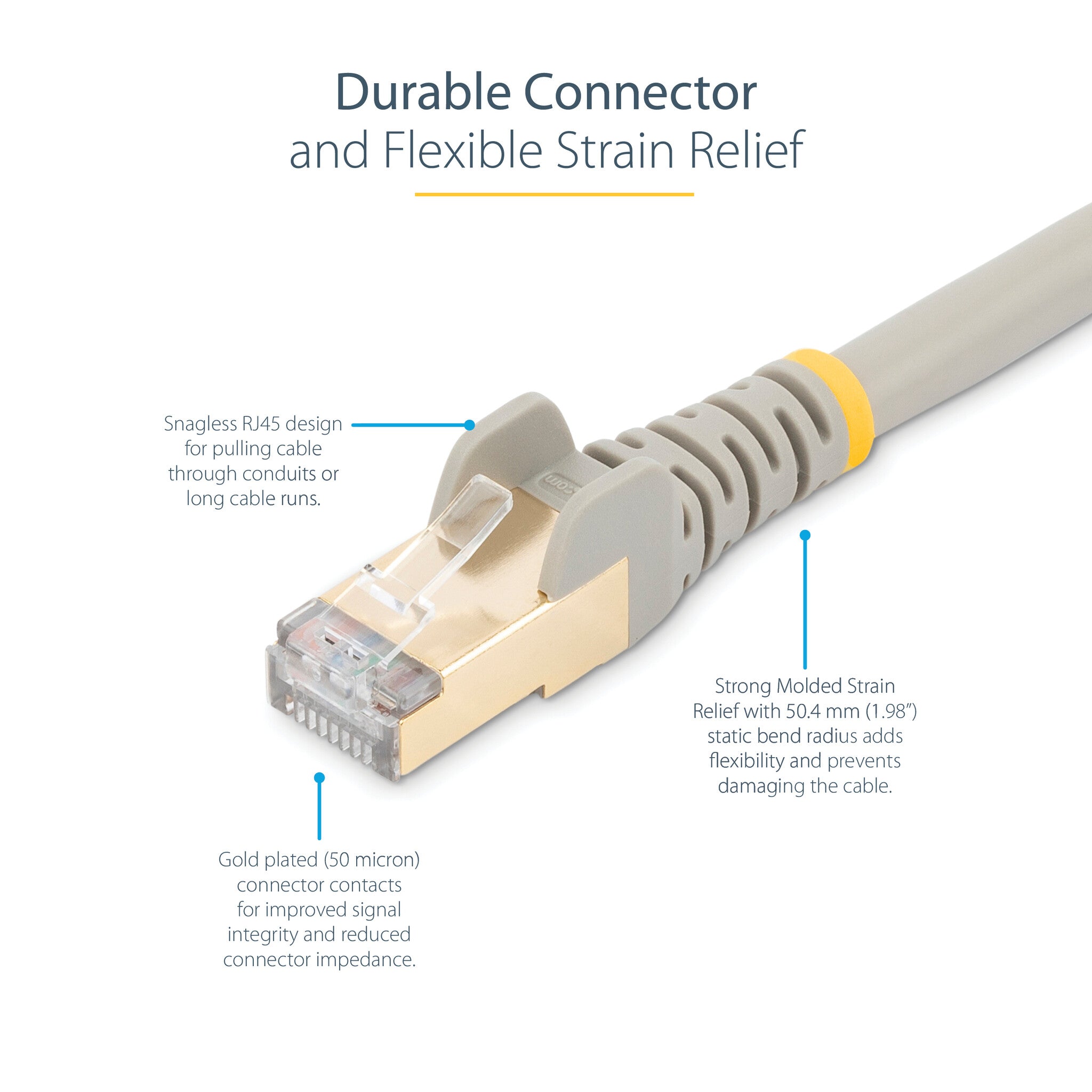

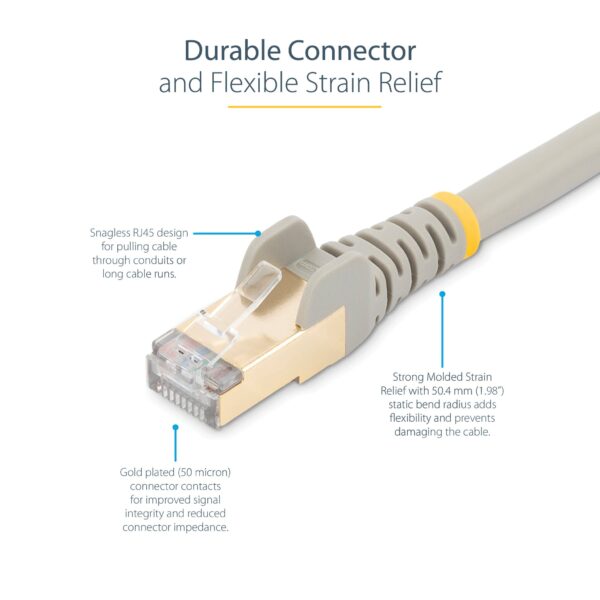

For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The CAT6a Ethernet cable also features moulded boots which offer strain relief by stopping the RJ45 connectors from bending at sharp angles. This reduces the risk of cable damage, which could decrease network connectivity and performance.
6ASPAT5MGR is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
| Features | |
|---|---|
| Certification | REACH, CE |
| Plug and Play | Yes |
| Snagless cable boot | Yes |
| Power over Ethernet (PoE) | Yes |
| Frequency | 500 MHz |
| Data transfer rate | 10000 Mbit/s |
| AWG wire size | 26 |
| Cabling technology | 10GBase-T |
| Cable rating | CMG (CM) |
| Conductor material | Copper |
| Conductor type | Stranded |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector contacts plating | Gold |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | RJ-45 |
| Connector 1 | RJ-45 |
| Product colour | Grey |
| Cable shielding | S/UTP (STP) |
| Cable standard | Cat6a |
| Cable length | 5 m |
| Weight & dimensions | |
|---|---|
| Weight | 200 g |
| Packaging data | |
|---|---|
| Package weight | 210 g |
| Package height | 0.0100 mm |
| Package depth | 200 mm |
| Package width | 220 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case height | 273 mm |
| Master (outer) case length | 417 mm |
| Master (outer) case width | 373 mm |
| Harmonized System (HS) code | 84733080 |
