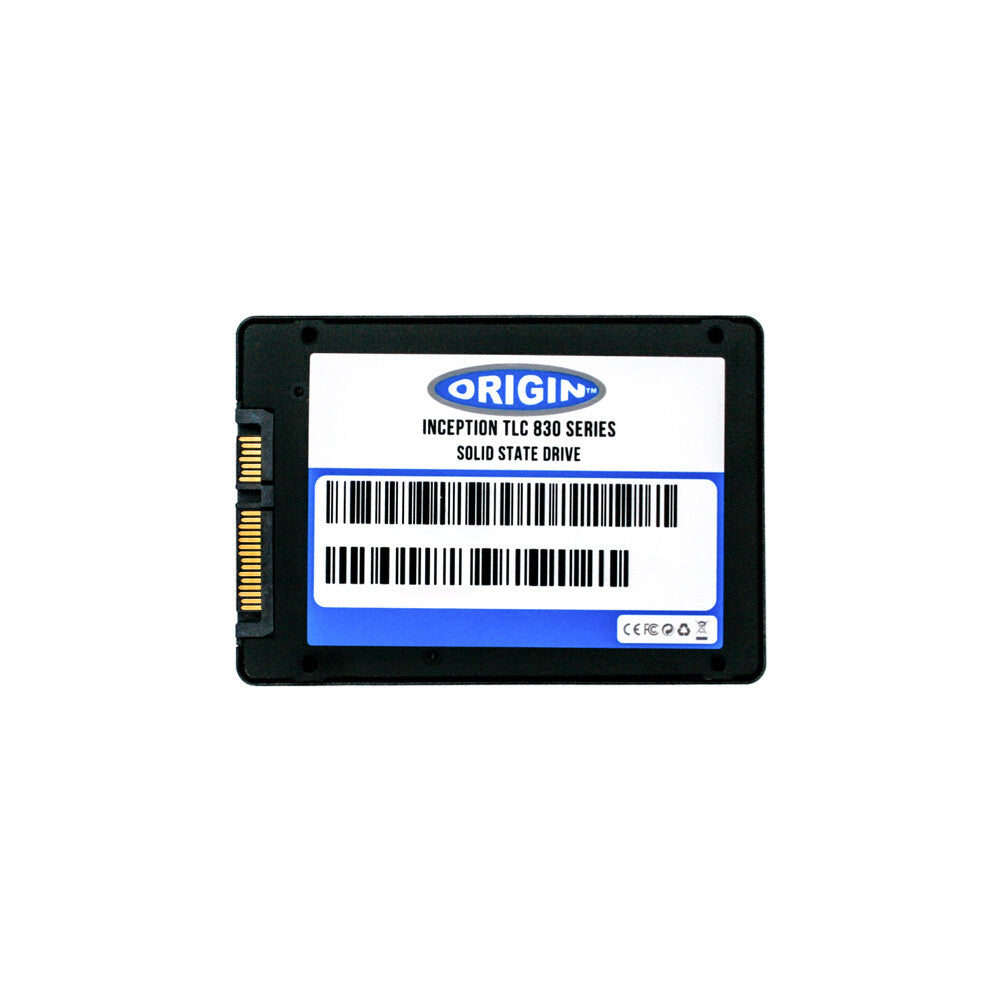

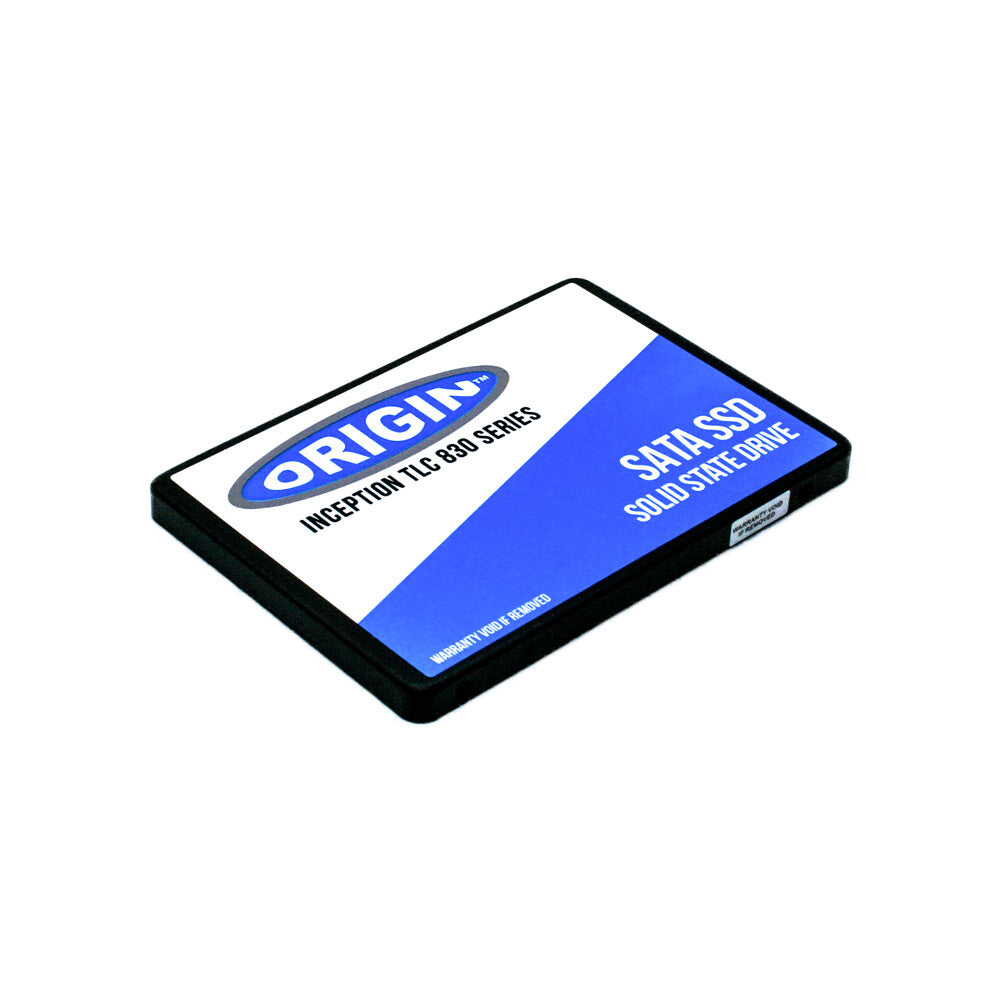

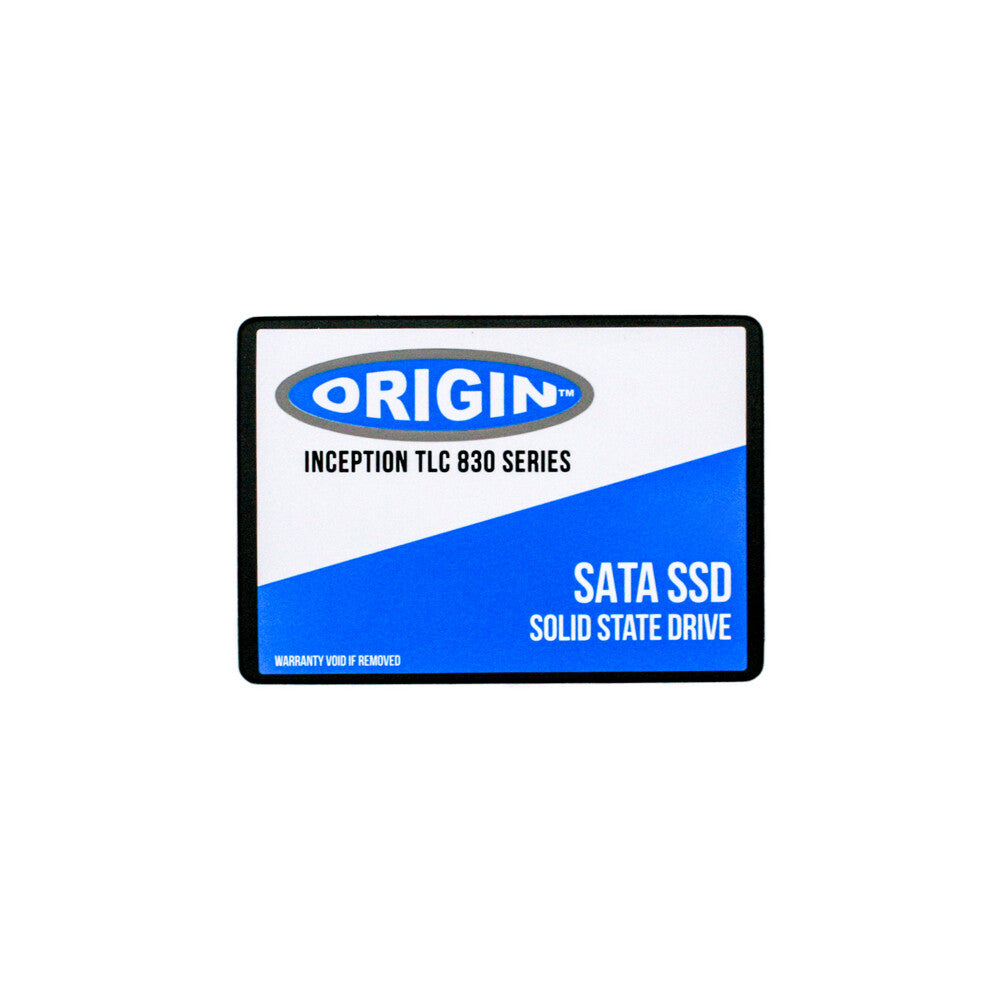

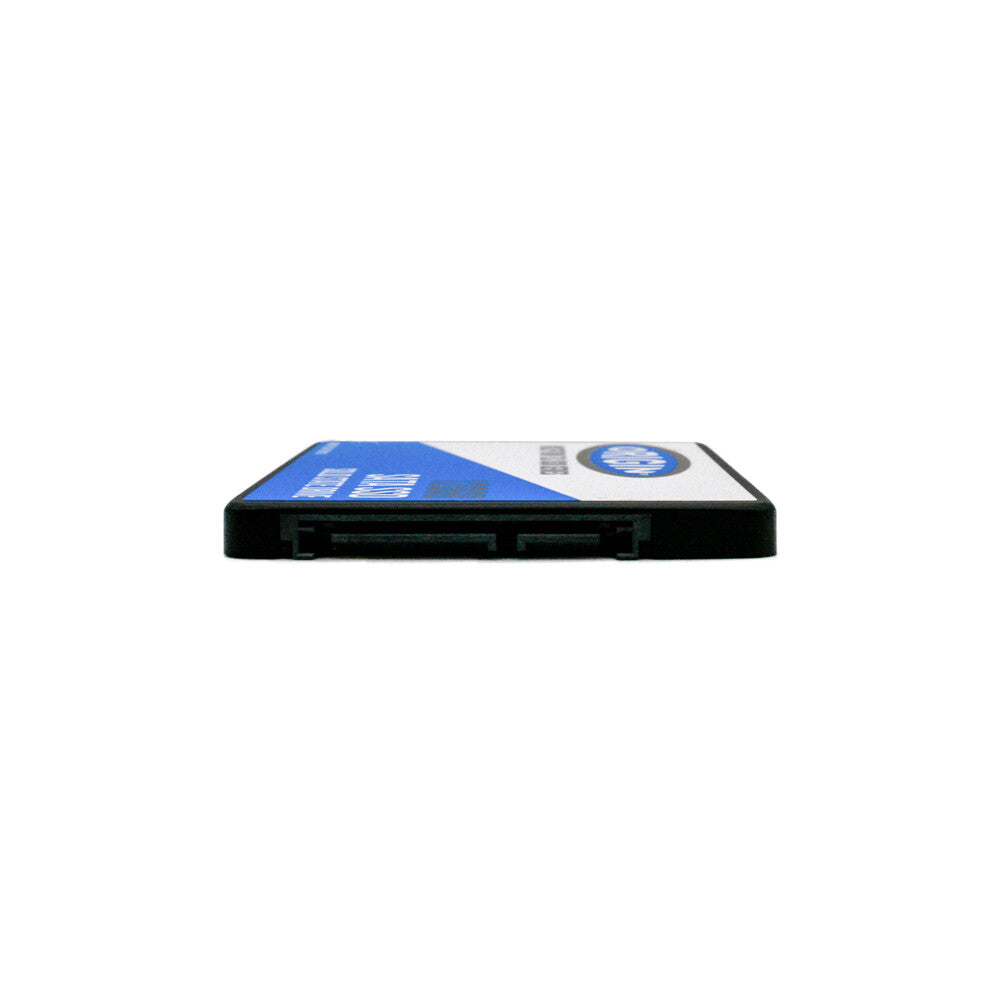

Origin Storage SSD 1TB 6G TLC 3.5 inch (8.89cm) SATA
1TB 2.5in 3DTLC SATA SSD Kit Opt. 3040/5040/7040 MT Insp.3650
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5″, 3.5″ & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
| Features |
| Compatible products |
Universal |
| TBW rating |
100 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mean time between failures (MTBF) |
1000000 h |
| Hot-swap |
No |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| Seek time |
0 ms |
| Access time |
0.1 ms |
| Random write (4KB) |
56320 IOPS |
| Random read (4KB) |
53760 IOPS |
| Write speed |
500 MB/s |
| Read speed |
550 MB/s |
| Data transfer rate |
6 Gbit/s |
| Hardware encryption |
No |
| Component for |
PC/Laptop |
| NVMe |
No |
| Memory type |
QLC |
| Interface |
Serial ATA III |
| SSD capacity |
1 TB |
| SSD form factor |
2.5″ |
| Power |
| Power consumption (idle) |
0.54 W |
| Power consumption (average) |
3.53 W |
| Power consumption (max) |
4.26 W |
| Power consumption (write) |
4.26 W |
| Power consumption (read) |
2.8 W |
| Operating voltage |
5 V |
| Operational conditions |
| Maximum operating altitude |
36576 m |
| Operating shock |
1500 G |
| Operating vibration |
16 G |
| Storage relative humidity (H-H) |
5 – 98% |
| Operating relative humidity (H-H) |
5 – 98% |
| Storage temperature (T-T) |
-45 – 105 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging data |
| Package type |
Blister |
| Screws included |
No |
| Storage drive adapter included |
No |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
