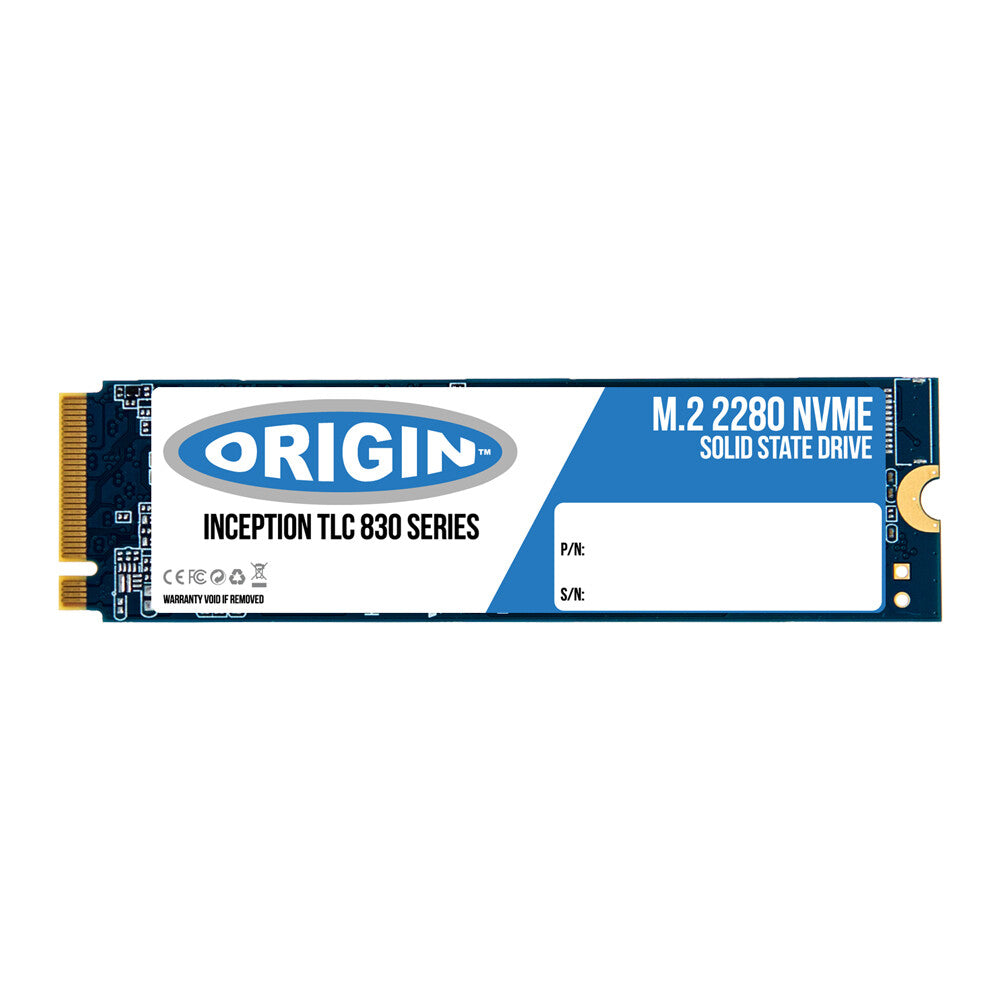

Origin Storage SSD 120GB 3D TLC NVME M.2 80mm
SSD 120GB 3D TLC NVME M.2 80mm
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5″, 3.5″ & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
| Features |
| Compatible products |
Universal |
| TBW rating |
100 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mean time between failures (MTBF) |
1000000 h |
| Hot-swap |
No |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| Seek time |
0 ms |
| Access time |
0.2 ms |
| Random write (4KB) |
102000 IOPS |
| Random read (4KB) |
179000 IOPS |
| Write speed |
1900 MB/s |
| Read speed |
2100 MB/s |
| Data transfer rate |
640 Gbit/s |
| Hardware encryption |
No |
| Component for |
PC/Laptop |
| NVMe |
Yes |
| Memory type |
3D TLC |
| Interface |
PCI Express 3.0 |
| SSD capacity |
256 GB |
| SSD form factor |
M.2 |
| Power |
| Power consumption (idle) |
0.47 W |
| Power consumption (average) |
3.03 W |
| Power consumption (max) |
3.22 W |
| Power consumption (write) |
3.22 W |
| Power consumption (read) |
2.84 W |
| Operating voltage |
3.3 V |
| Operational conditions |
| Maximum operating altitude |
36576 m |
| Operating shock |
1500 G |
| Operating vibration |
16 G |
| Storage relative humidity (H-H) |
5 – 98% |
| Operating relative humidity (H-H) |
5 – 98% |
| Storage temperature (T-T) |
-45 – 105 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging data |
| Package type |
Blister |
| Screws included |
No |
| Storage drive adapter included |
No |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
