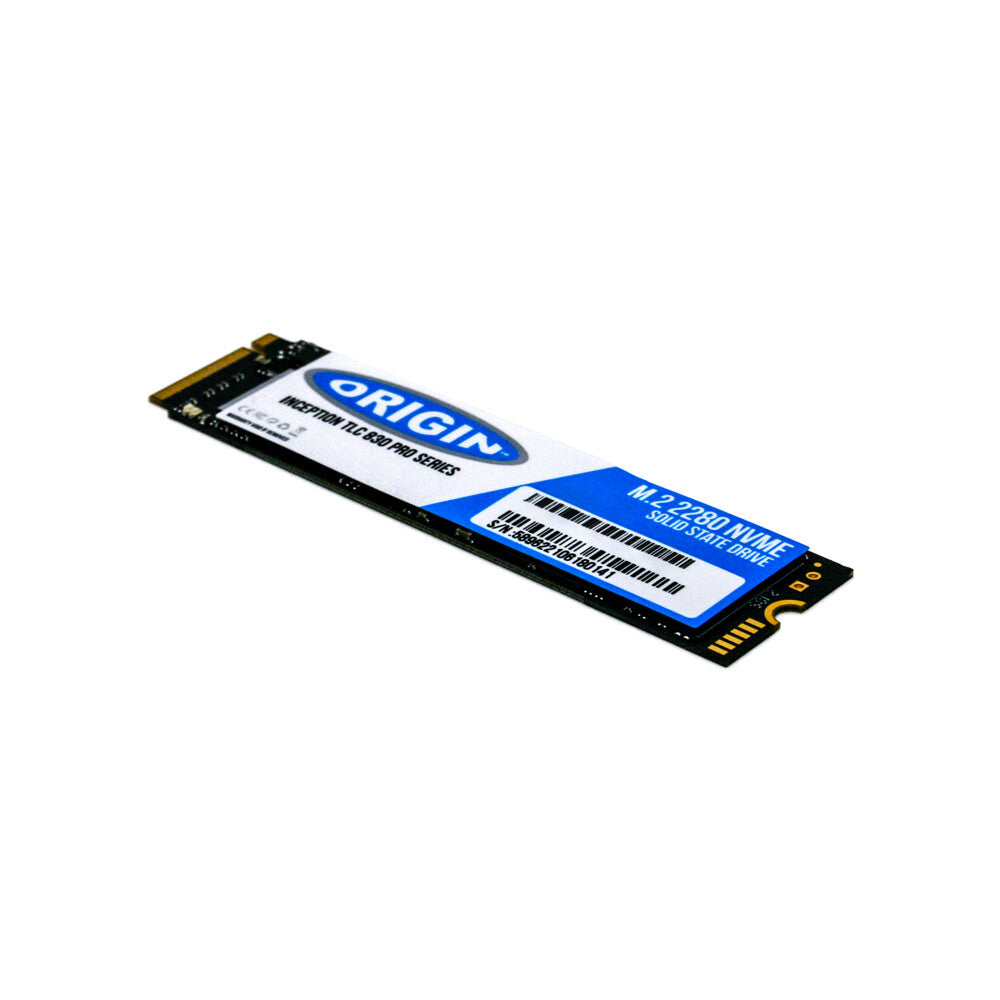

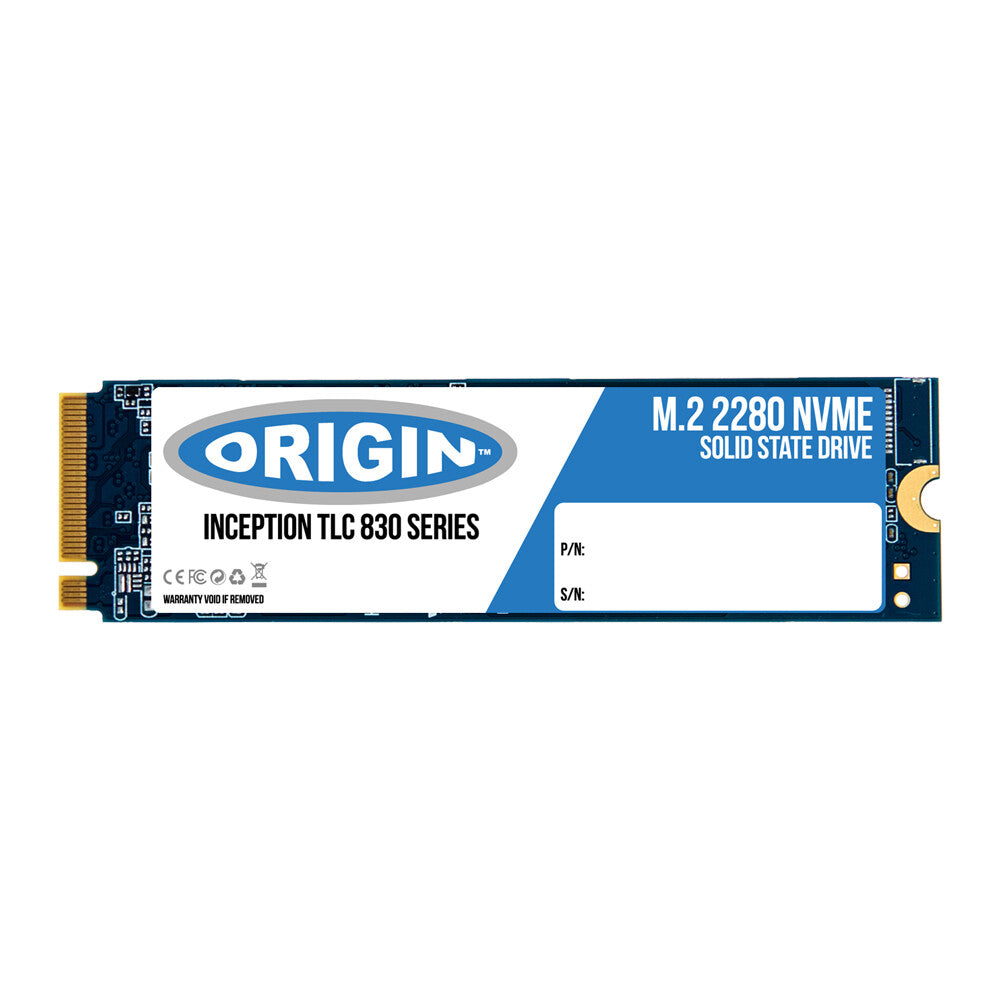

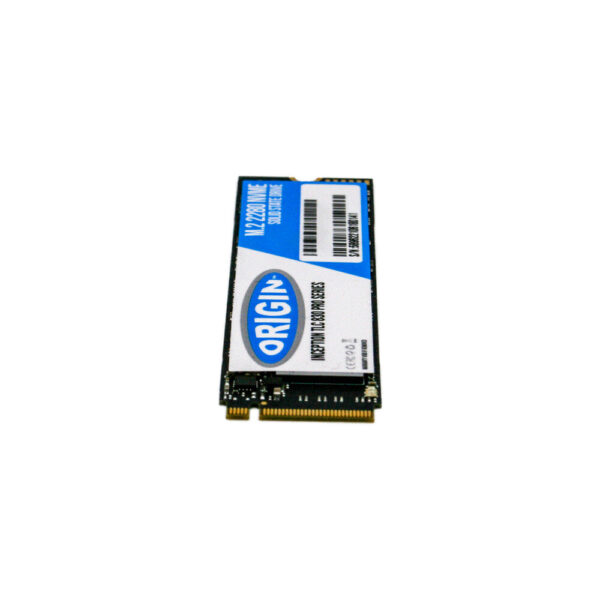

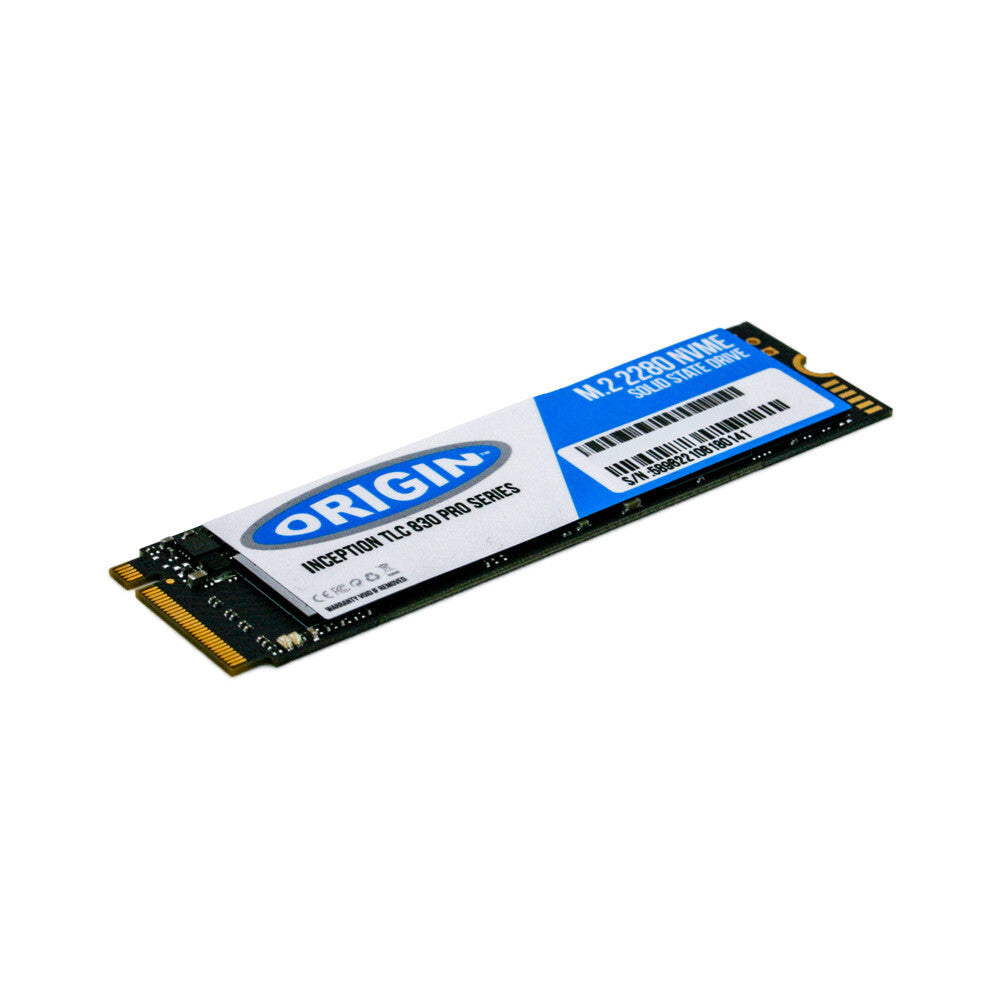

Origin Storage Inception TLC830 Pro Series 1TB PCIe 4.0 NVME M.2 80mm 3D TLC
Inception TLC830 Pro Series 1TB PCIe 4.0 NVME M.2 80mm 3D TLC
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5″, 3.5″ & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
| Features |
| Export Control Classification Number (ECCN) |
4A994 |
| SSD usage tag |
Consumer |
| Use conditions |
PC/Client/Tablet, Workstation |
| TBW rating |
560 |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mean time between failures (MTBF) |
1500000 h |
| End-to-End Data Protection |
Yes |
| JEDEC standard |
Yes |
| ECC |
Yes |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| PCI Express interface data lanes |
x4 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| M.2 key ID |
M |
| Seek time |
0 ms |
| Access time |
0.2 ms |
| Random write (4KB) |
3200 IOPS |
| Random read (4KB) |
4000 IOPS |
| Write speed |
4200 MB/s |
| Read speed |
5000 MB/s |
| Security algorithms |
128-bit AES, 256-bit AES |
| Hardware encryption |
No |
| Component for |
PC/Laptop |
| NVMe version |
2.0 |
| NVMe |
Yes |
| Memory type |
3D TLC |
| Interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| SSD form factor |
M.2 |
| Power |
| Average power consumption (read) |
3.5 W |
| Average power consumption (write) |
3.5 W |
| Operating voltage |
3.3 V |
| Operational conditions |
| Operating shock |
1500 G |
| Operating vibration |
15 G |
| Operating relative humidity (H-H) |
5 – 98% |
| Storage temperature (T-T) |
-45 – 95 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
6.5 g |
| Height |
2 mm |
| Depth |
80 mm |
| Width |
22 mm |
