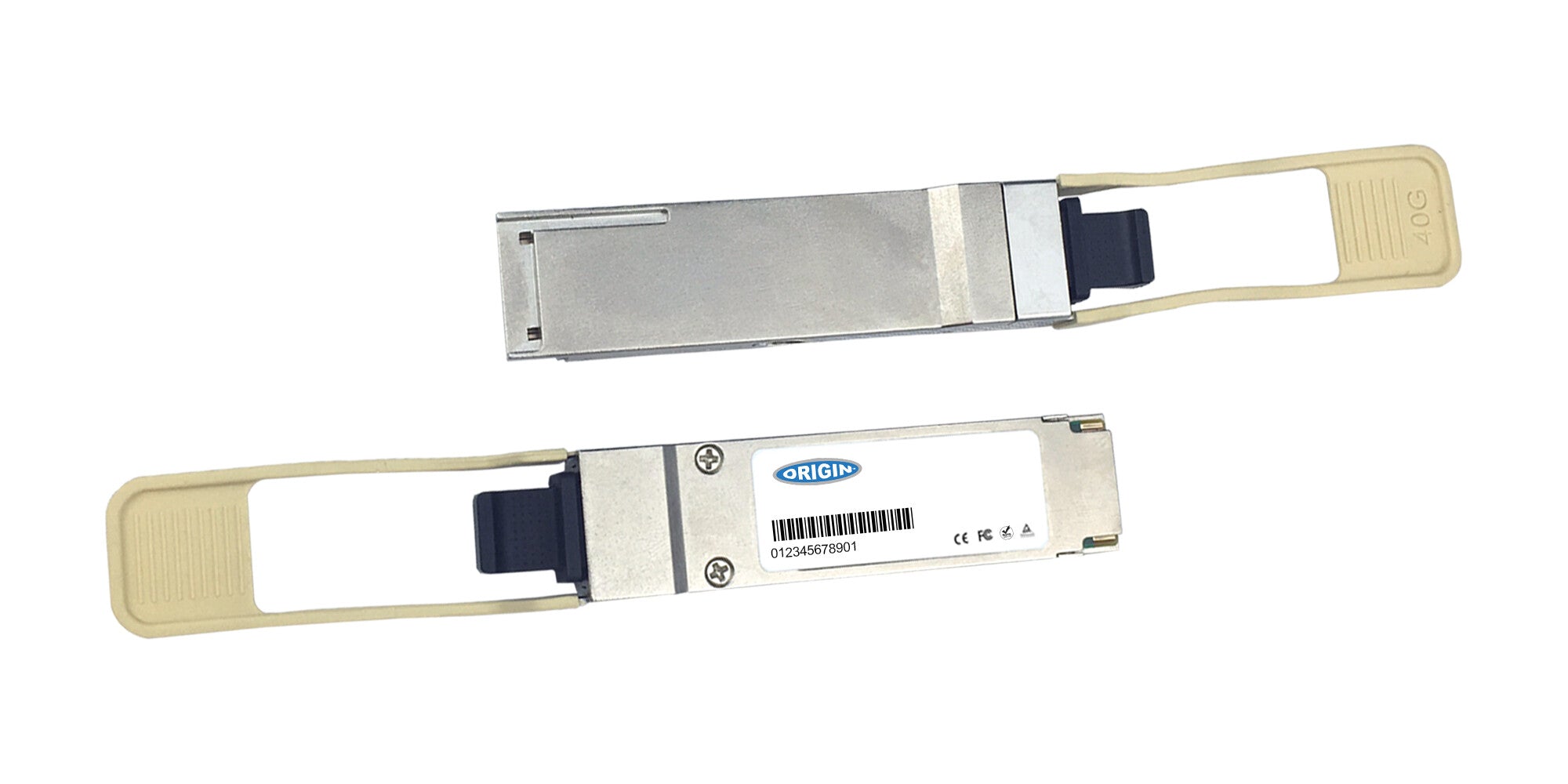

Origin Storage 40G-QSFP-ESR4-INT Brocade Compatible Transceiver QSFP+ 40GBase-CSR4 (850nm MMF 400m MPO DOM)
40G-QSFP-ESR4-INT Brocade Compatible Transceiver QSFP+ 40GBase-CSR4 (850nm MMF 400m MPO DOM)
Origin Storage 40G-QSFP-ESR4-INT Brocade Compatible Transceiver QSFP+ 40GBase-CSR4 (850nm MMF 400m MPO DOM)
| Performance |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Ethernet interface type |
40 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Wavelength |
850 nm |
| Maximum transfer distance |
400 m |
| Fiber optic connector |
MTP/MPO |
| Multi-mode fiber (MMF) supported |
Yes |
| Single-mode fiber (SMF) supported |
No |
| Interface type |
QSFP+ |
| Maximum data transfer rate |
40000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
| Certification |
CE, FCC, RoHS, REACH |
| Brand compatibility |
Extreme Networks |
| Country of origin |
China |
| Easy to install |
Yes |
| Hot-swap |
Yes |
| Hot-Plug support |
Yes |
| Plug and Play |
Yes |
| Housing material |
Metal |
| Product colour |
Silver |
| Power |
| Input voltage |
3.3 V |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 85% |
| Operating relative humidity (H-H) |
0 – 85% |
| Storage temperature (T-T) |
-40 – 85 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Maximum operating temperature |
70 °C |
| Minimum operating temperature |
0 °C |
| Packaging data |
| Package type |
Blister |
| Technical details |
| Compliance certificates |
Electromagnetic Compatibility (EMC), REACH, RoHS, CE, Federal Communications Commission (FCC) |
| Doesn’t contain |
Lead |
