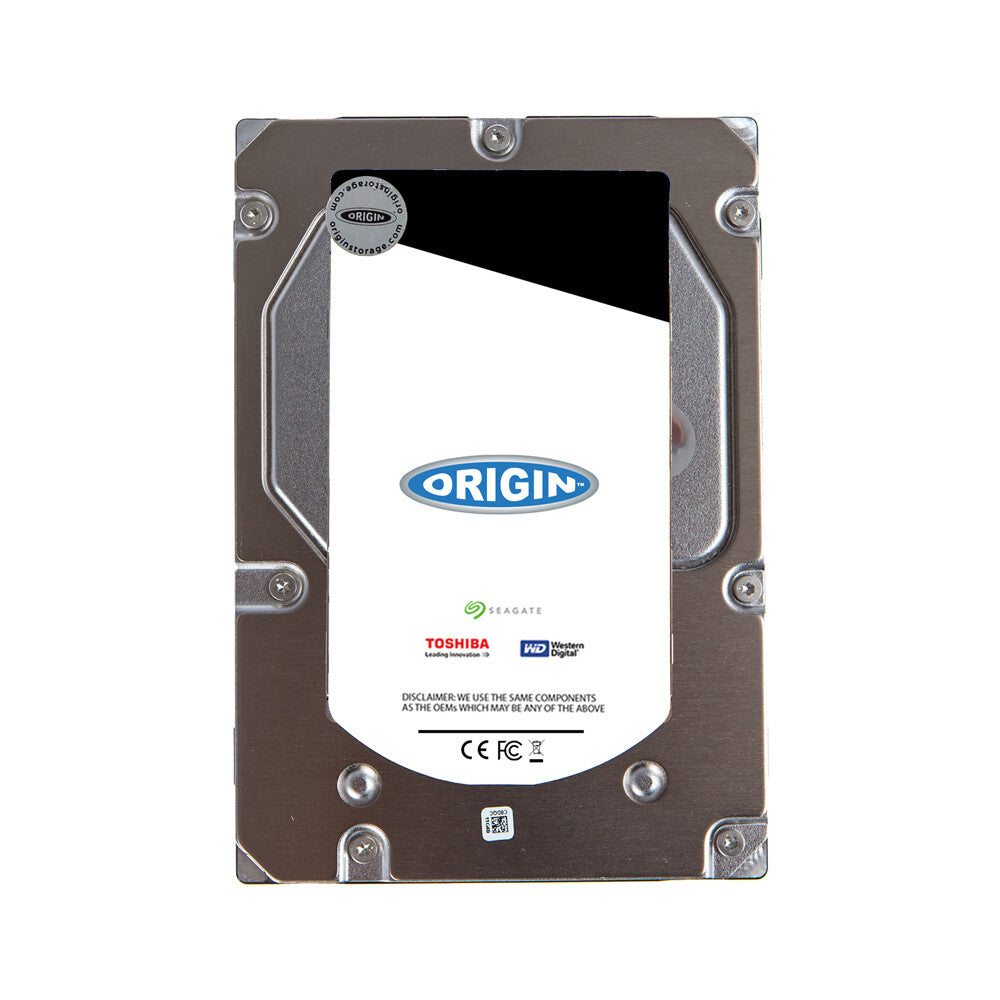

Origin Storage 300GB SAS 15K PWS T3600/T5600 3.5in HD Kit w/ Caddy
300GB SAS 15K PWS T3600/T5600 3.5in HD Kit w/ Caddy
Origin Storage Ltd manufactures a full range of Matched Hard Drive & Solid State Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched Drive Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5″ or 3.5″ with either SATA or SAS interfaces, available in a range of capacities and spin speeds. All our Matched Drive Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
| Features |
| Compatible products |
Dell PWS T3600/T5600 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Refurbished |
No |
| Mean time between failures (MTBF) |
1600000 h |
| Bytes per sector |
512 |
| Average latency |
2 ms |
| Read seek time |
3.4 ms |
| Write seek time |
3.9 ms |
| HDD number of heads |
4 |
| HDD interface transfer rate |
6 Gbit/s |
| Storage drive buffer size |
16 MB |
| Hot-swap |
No |
| Component for |
PC |
| Type |
HDD |
| Interface |
SAS |
| HDD speed |
15000 RPM |
| HDD capacity |
300 GB |
| HDD size |
3.5″ |
| Power |
| Operating voltage |
5 / 12 V |
| Power consumption (idle) |
8.74 W |
| Power consumption (typical) |
12.92 W |
| Operational conditions |
| Non-operating shock |
300 G |
| Operating shock |
60 G |
| Non-operating altitude |
-304.8 – 12192 m |
| Operating altitude |
-304.8 – 3048 m |
| Non-operating vibration |
3 G |
| Operating vibration |
1 G |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
5 – 55 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
850 g |
| Height |
25.4 mm |
| Depth |
146.5 mm |
| Width |
101.6 mm |
| Packaging data |
| Storage drive adapter included |
No |
| Logistics data |
| Harmonized System (HS) code |
84717050 |
