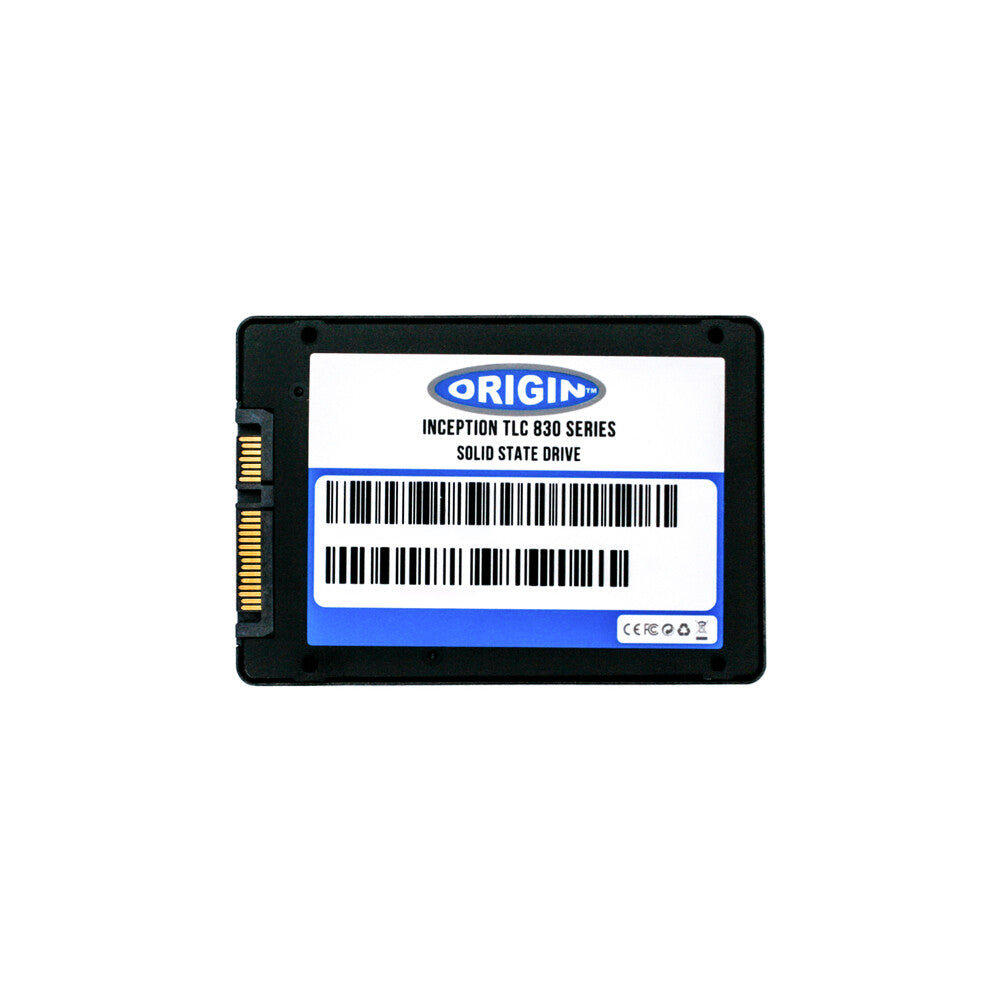

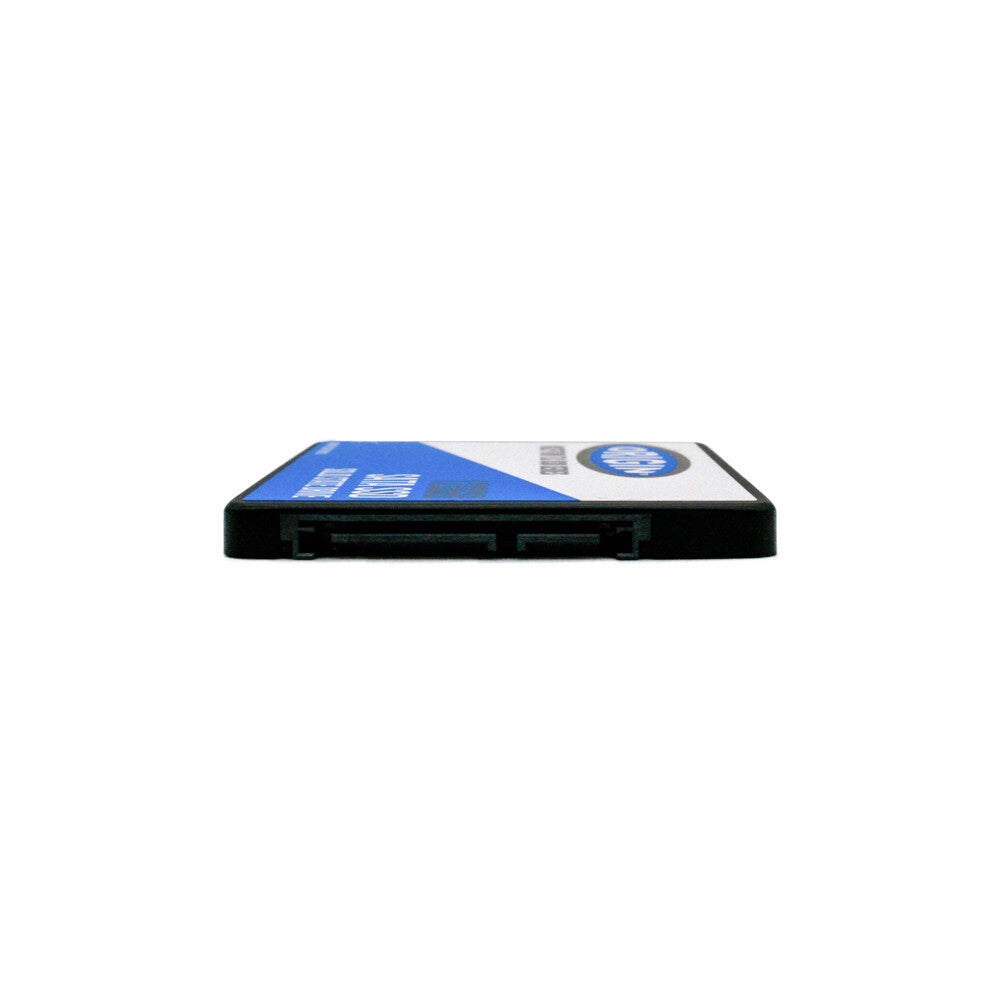

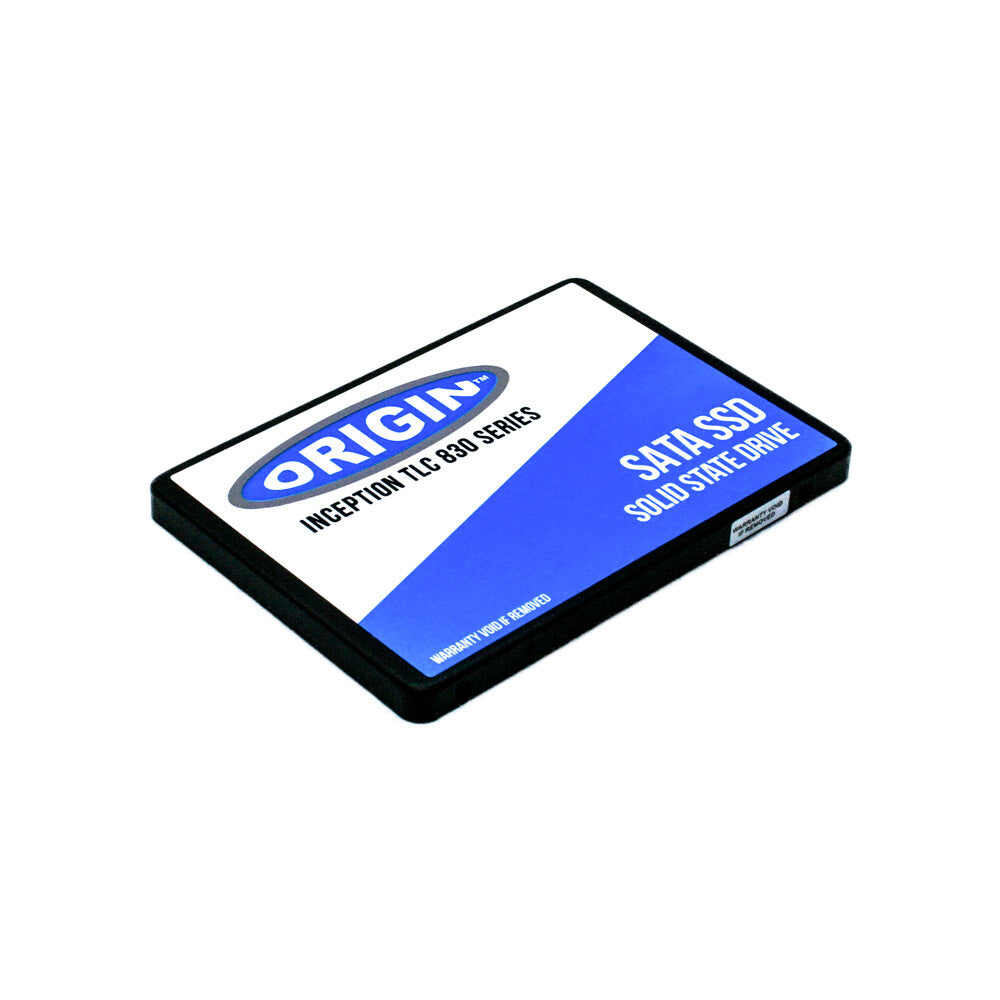

Origin Storage 256GB 3DTLC SSD Opt. 780/990 DT 3.5in SATA SSD Kit w/Caddy
256GB 3DTLC SSD Opt. 780/990 DT 3.5in SATA SSD Kit w/Caddy
Origin Storage Ltd manufactures a full range of Matched SSD Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched SSD Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5″ or 3.5″, M.2 & AIC with either SATA, SAS or PCIe interfaces respectively, available in a range of capacities and drive write endurances for laptop, desktop or Server. All our Matched SSD Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
| Features |
| Compatible products |
Universal |
| TBW rating |
100 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mean time between failures (MTBF) |
1000000 h |
| Hot-swap |
No |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| Seek time |
0 ms |
| Access time |
0.1 ms |
| Random write (4KB) |
56320 IOPS |
| Random read (4KB) |
53760 IOPS |
| Write speed |
500 MB/s |
| Read speed |
550 MB/s |
| Data transfer rate |
6 Gbit/s |
| Hardware encryption |
No |
| Component for |
PC/Laptop |
| NVMe |
No |
| Memory type |
3D TLC |
| Interface |
Serial ATA III |
| SSD capacity |
256 GB |
| SSD form factor |
2.5″ |
| Power |
| Power consumption (idle) |
0.54 W |
| Power consumption (average) |
3.825 W |
| Power consumption (max) |
4.55 W |
| Power consumption (write) |
4.55 W |
| Power consumption (read) |
3.1 W |
| Operating voltage |
5 V |
| Operational conditions |
| Maximum operating altitude |
36576 m |
| Operating shock |
1500 G |
| Operating vibration |
16 G |
| Storage relative humidity (H-H) |
5 – 98% |
| Operating relative humidity (H-H) |
5 – 98% |
| Storage temperature (T-T) |
-45 – 105 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging data |
| Package type |
Blister |
| Screws included |
No |
| Storage drive adapter included |
No |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
