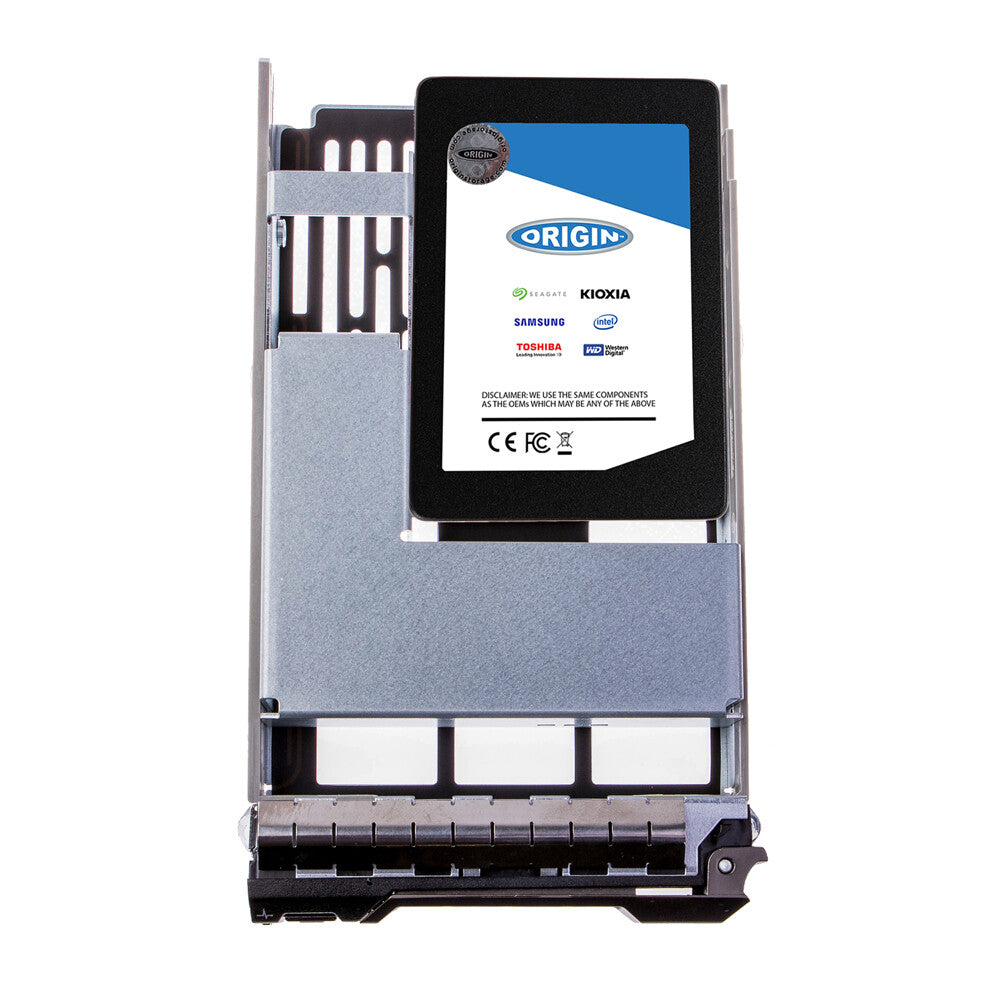

Origin Storage 1920GB Hot Plug Enterprise SSD 3.5in SATA Mixed Work Load
1920GB Hot Plug Enterprise SSD 3.5in SATA Mixed Work Load
Origin Storage Ltd manufactures a full range of Matched Hard Drive & Solid State Solutions for Dell Poweredge, Optiplex and Latitude ranges, covering all their legacy systems right through to the latest modern day technology. Dell have been supplying their clients with Origin Matched Hard Solutions for the past decade as and when their own part is made EOL or stock is in constraint, this shows an unquestionable level of quality and service provided on every Origin Storage Matched Drive Solution. All of our Matched Drive Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support from our in house engineers. We can supply replacements or upgrades in form factors 2.5″ ,3.5″, M.2, mSATA and AIC (PCIe)
| Features |
| Compatible products |
Dell Server |
| TBW rating |
10512 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Active garbage collection |
Yes |
| Mean time between failures (MTBF) |
2000000 h |
| Enhanced Power Loss Data Protection technology |
Yes |
| End-to-End Data Protection |
Yes |
| Hot-swap |
Yes |
| ECC |
No |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| Write latency |
110 µs |
| Read latency |
110 µs |
| Random write (4KB) |
28000 IOPS |
| Random read (4KB) |
95000 IOPS |
| Maximum write (4KB) |
28000 IOPS |
| Maximum read (4KB) |
95000 IOPS |
| Write speed |
520 MB/s |
| Read speed |
550 MB/s |
| Data transfer rate |
6 Gbit/s |
| Security algorithms |
256-bit AES |
| Hardware encryption |
No |
| Component for |
Server/workstation |
| NVMe |
No |
| NAND flash type |
MLC (Multi Level Cell) |
| Memory type |
eMLC |
| Interface |
Serial ATA III |
| SSD capacity |
1.92 TB |
| SSD form factor |
3.5″ |
| Power |
| Power consumption (average) |
3 W |
| Operational conditions |
| Non-operating shock |
1500 G |
| Operating shock |
1500 G |
| Non-operating vibration |
2.17 G |
| Operating vibration |
2.17 G |
| Storage temperature (T-T) |
-40 – 85 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
54.3 g |
| Height |
7 mm |
| Depth |
100.5 mm |
| Width |
69.8 mm |
| Packaging data |
| Storage drive adapter type |
2.5″ – 3.5″ |
| Storage drive adapter included |
Yes |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
| Other features |
| Internal |
Yes |
