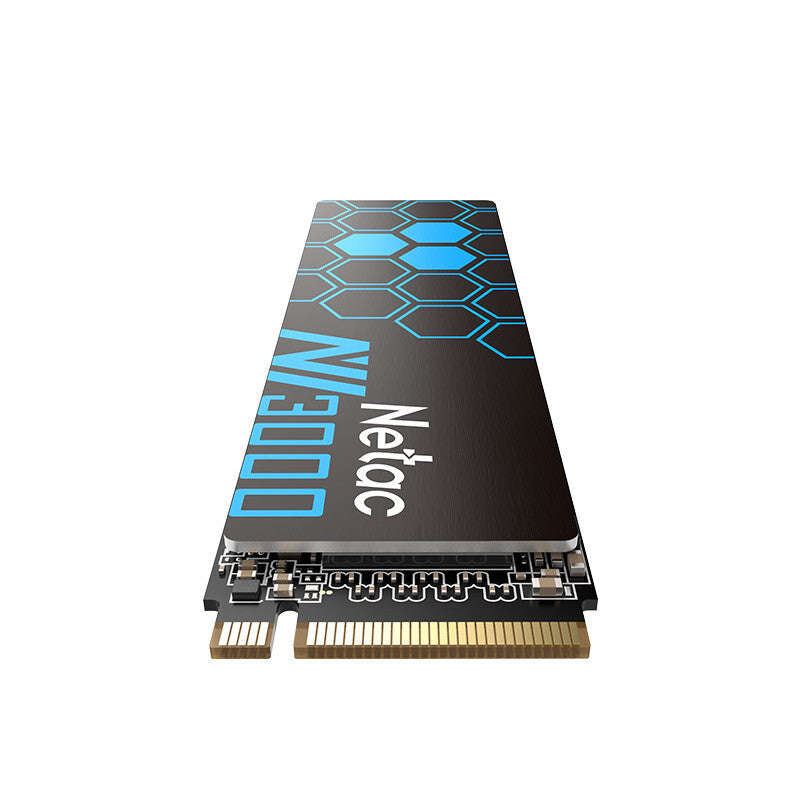

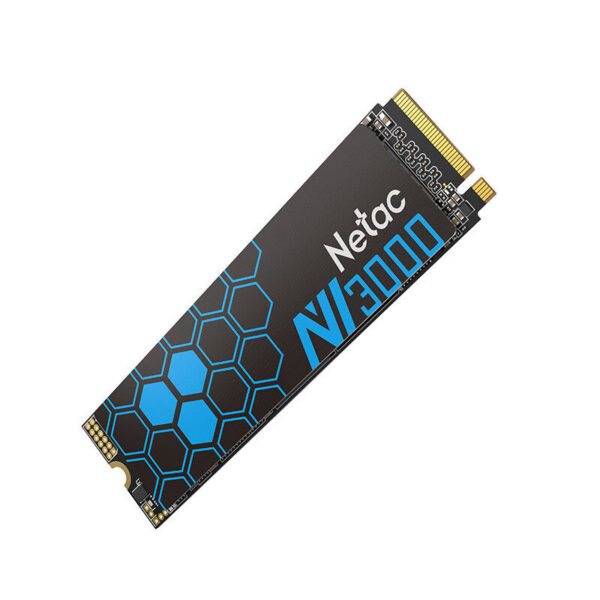

Netac NV3000 250 GB M.2 PCI Express 3.0 NVMe 3D NAND
250GB, M.2 2280, 3D NAND, NVMe 1.4, PCIe Gen3 x4, M Key, S.M.A.R.T, TRIM, ECC, 22x80x2.9mm, 8g
Netac NV3000
Extraordinary speed, Better and Faster
Super high-speed with 3300MB/s
Selected chips, Stable operation
Adopt new generation of 3D NAND Flash adopts vertical stacking unit structure, which also supports LDPC intelligent error correction at the same time
Two features boost performance
Equipped with HMB (host memory buffering technology) and SLC Cache technology, intelligently optimize cache space and greatly improve storage operation efficiency
Slimmer and powerful
Slimmer, compatible with desktop, all-in-one, and notebook devices, and easy to upgrade and speed up
| Features | |
|---|---|
| TBW rating | 150 |
| Protection features | Shock resistant |
| Mean time between failures (MTBF) | 2000000 h |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express CEM revision | 3.0 |
| PCI Express interface data lanes | x4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| M.2 key ID | M |
| Sequential write speed (ATTO) | 1400 MB/s |
| Sequential read speed (ATTO) | 3100 MB/s |
| Random write (4KB) | 120000 IOPS |
| Random read (4KB) | 160000 IOPS |
| Target workload | Mixed Use (MU) |
| Component for | PC/Laptop |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 3.0 |
| SSD capacity | 250 GB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8 g |
| Height | 2.9 mm |
| Depth | 80 mm |
| Width | 22 mm |
