Logitech Rally Ultra-HD ConferenceCam
Rally Ultra-HD ConferenceCam
The purchase of a one-year Logitech extended warranty along with the purchase of Rally adds one additional year to the original Logitech manufacturer’s two-year guarantee and is intended to ensure that your Logitech hardware is free from defects in material and workmanship.
This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
| Performance |
| PTZ control |
Yes |
| Tripod mounting supported |
Yes |
| Tilt angle range |
-90 – 50° |
| Tilt speed |
70 °/sec |
| Pan speed |
70 °/sec |
| Pan range |
-90 – 90° |
| Product colour |
Black |
| Bluetooth |
Yes |
| Number of persons |
16 person(s) |
| Product type |
Group video conferencing system |
| Video |
| Maximum frame rate |
60 fps |
| Supported video modes |
576p, 720p, 900p, 1080p, 1440p, 2160p |
| HD type |
4K Ultra HD |
| Audio |
| Noise reduction |
Yes |
| Echo cancellation |
Yes |
| Microphone pick-up range |
4.5 m |
| Sample rates |
0 – 48 kHz |
| Output level |
95/100 dB |
| Frequency range |
300 – 10000 Hz |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
| Line-in |
Yes |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-B, USB Type-C |
| HDMI ports quantity |
2 |
| Camera |
| Number of camera presets |
3 |
| Focus adjustment |
Auto |
| Field of view (FOV) angle |
90° |
| Digital zoom |
15x |
| Zoom capability |
Yes |
| Microphone |
| Number of microphone arrays |
2 |
| Number of microphones |
4 |
| Sound pressure level (max) |
95 dB |
| Microphone mute |
Yes |
| Microphone direction type |
Omnidirectional |
| Microphone frequency |
90 – 16000 Hz |
| Microphone sensitivity |
-27 dB |
| Microphone colour |
Black |
| Computer system |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 8.1 |
| Features |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Telepresence |
No |
| Battery |
| Battery capacity |
0.675 Wh |
| Logistics data |
| Master (outer) case gross weight |
12.3 kg |
| Master (outer) case length |
417 mm |
| Master (outer) case width |
227 mm |
| Master (outer) case height |
722 mm |
| Harmonized System (HS) code |
85176990 |
| Power |
| Battery technology |
Lithium |
| Battery capacity |
220 mAh |
| Number of batteries supported |
2 |
| Power source type |
AC |
| Weight & dimensions |
| Package weight |
11.2 kg |
| Package height |
690 mm |
| Package depth |
400 mm |
| Package width |
210 mm |
| Camera dimensions (WxDxH) |
152 x 152 x 182.5 mm |
| Speaker dimensions (WxDxH) |
449 x 80 x 103 mm |
| Microphone dimensions (WxHxD) |
102 x 102 x 21 mm |
| Packaging content |
| Packaging content |

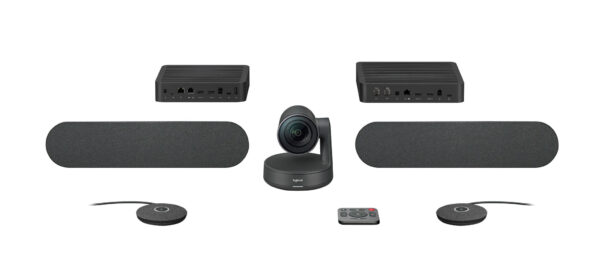

Rally cameraRally display hubRally table hubRally speaker (x1)Rally mic pod (x1)Remote controlUSB Type C to USB Type CUSB Type A to USB Type BCAT6A Ethernet cableHDMI Type A (x2)A/C cables (x2)Power supplies (x2)Documentation2-year manufacturer’s guarantee |
| Camera included |
Yes |
| Microphone included |
Yes |
| Remote control included |
Yes |
| Quick start guide |
Yes |
| Speaker included |
Yes |
| AC adapter included |
Yes |
| HDMI cable length |
2 m |
| Networking cable length |
5 m |
| Power cable length |
1.5 m |
| Cables included |
AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C |
| External interface module included |
Yes |
