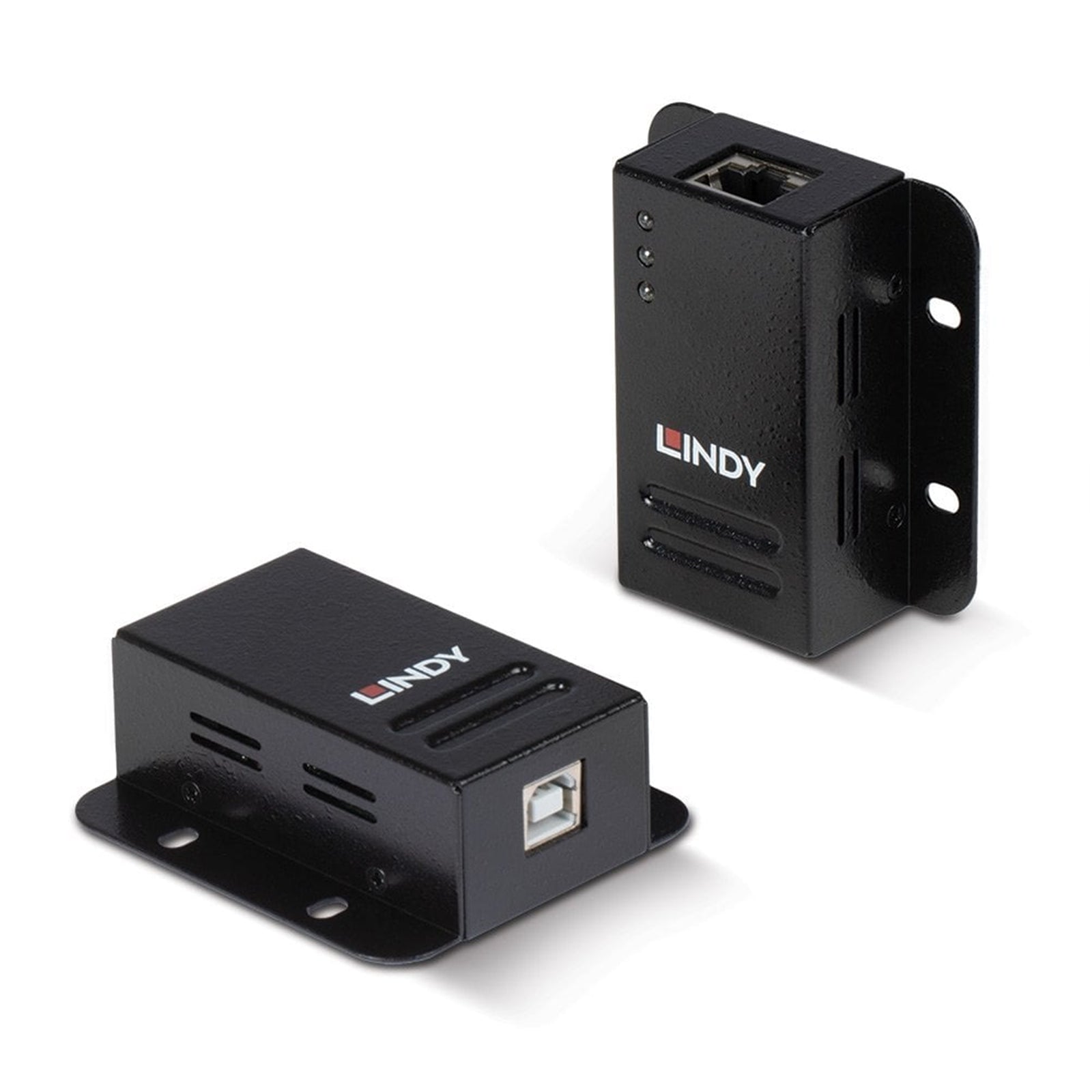

LINDY 42680 50m USB 2.0 Cat.6 Extender, Plug & Play Installation, 2 Year Warranty
– Extend a USB 2.0 port up to 50m using low cost Cat. 5e/6 network cable (not included)
– Power over Cable requires a single power supply to be connected to the transmitter only
– Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
– Plug & Play installation
– 2 year warranty
The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Specifications
USB Standard: USB 2.0
Supported Bandwidth: 480Mbps
Maximum Distance: 50m (164.04ft)
Transmission Medium: Cat.5e/6 or higher network cable
Chipset: NS1021
Special Features: Power over RJ45, Supports isochronous data transfer
Connectors
Transmitter Input: USB Type B (Female)
Transmitter Output: RJ45 (Female)
Receiver Input: RJ45 (Female)
Receiver Output: 1 x USB Type A (Female)
Power: 3.5/1.35mm DC socket
Physical Properties
Dimensions WxDxH:
60x67x23mm (2.36×2.64×0.91in) (TX)
60x67x23mm (2.36×2.64×0.91in) (RX)
Housing Material: Metal
Net Weight: 0.3kg (0.66lb)
Operating Temperature: -0° – 70°C (32°F – 158°F)
Storage Temperature: -20°C – 80°C (-4°F – 176°F)
Humidity: 0 – 90% RH (non-condensing)
Power Requirements: 24VDC 0.5A
Colour: Black
Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 185x140x55mm (7.28×5.51×2.17in)
Gross Weight: 0.4kg (0.88lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS, REACH
Package contents
Transmitter unit
Receiver unit
0.5m USB 2.0 A Male to B Male cable
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy Manual
