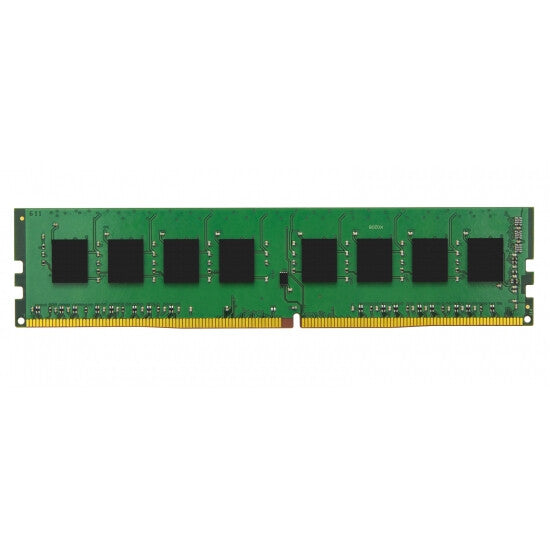

Kingston Technology ValueRAM 8GB DDR4 2666MHz memory module 1 x 8 GB
ValueRAM 8GB DDR4 2666MHz Module
This document describes ValueRAM’s KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of
19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
| Features |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Lead plating |
Gold |
| Cooling type |
Heatsink |
| Country of origin |
Taiwan |
| Product colour |
Green |
| SPD profile |
Yes |
| Row active time |
32 ns |
| Refresh row cycle time |
350 ns |
| Row cycle time |
45.75 ns |
| Module configuration |
1024M x 64 |
| Memory voltage |
1.2 V |
| Memory ranking |
1 |
| CAS latency |
19 |
| ECC |
No |
| Memory form factor |
288-pin DIMM |
| Component for |
PC/Server |
| Memory clock speed |
2666 MHz |
| Internal memory type |
DDR4 |
| Memory layout (modules x size) |
1 x 8 GB |
| Internal memory |
8 GB |
| Buffered memory type |
Unregistered (unbuffered) |
| Operational conditions |
| Storage temperature (T-T) |
-55 – 100 °C |
| Operating temperature (T-T) |
0 – 85 °C |
| General |
| Product family |
ValueRAM |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
RoHS |
| Doesn’t contain |
Halogen |
| Weight & dimensions |
| Height |
31.2 mm |
| Width |
133.3 mm |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
