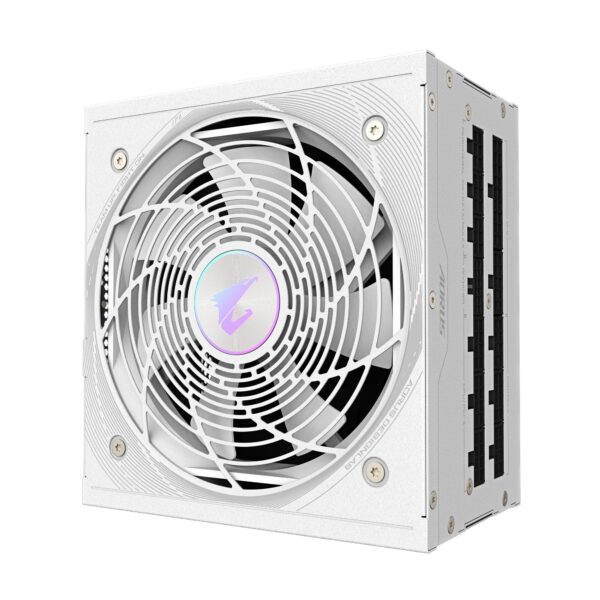

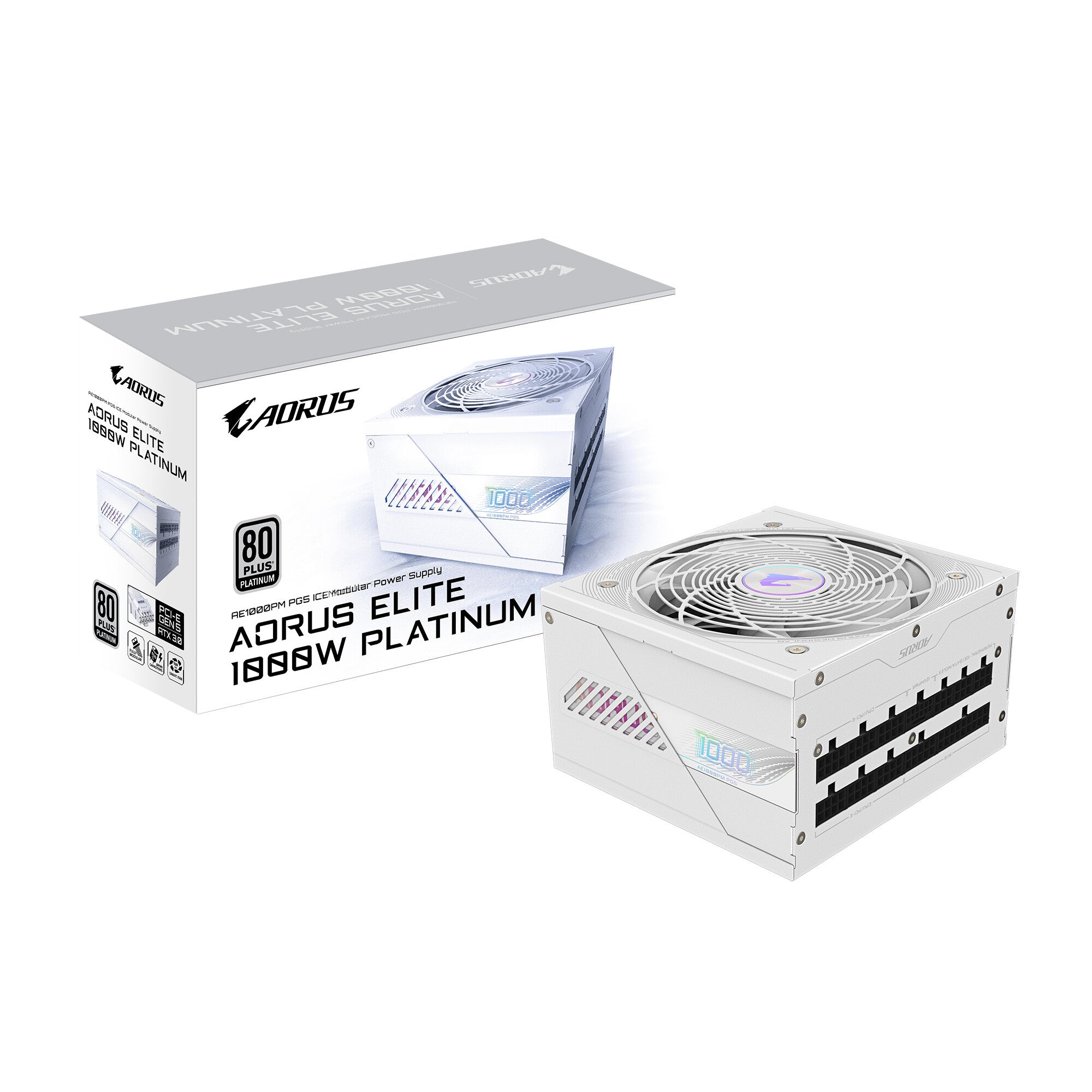

GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit – PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug
AORUS ELITE P1000W ICE Power Supply Unit – PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency |
92% |
| Power Good signal delay range |
100 – 150 ms |
| Hold time |
16 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
83.3 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
125 W |
| Combined power (+12V) |
999.6 W |
| Combined power (+3.3V) |
125 W |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.9 |
| Input current |
15 – 6.5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Total power |
1000 W |

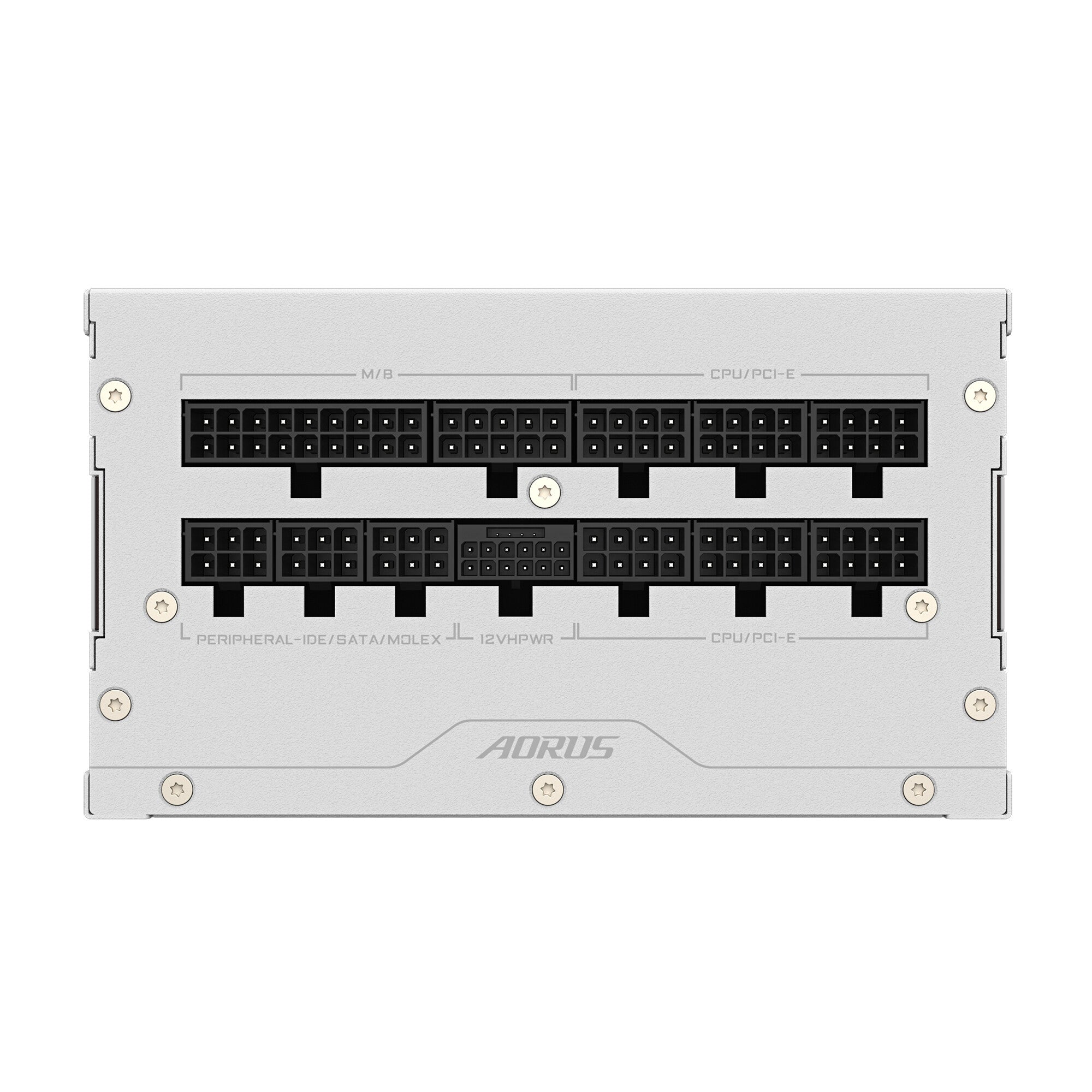

| Ports & interfaces |
| Cabling type |
Fully-Modular |
| PCI Express connector |
Yes |
| Floppy drive power connector |
2 |
| Floppy disk drive connector |
Yes |
| ATX power connector (20+4 pin) |
Yes |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
6 |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
65 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
Ball bearing |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |

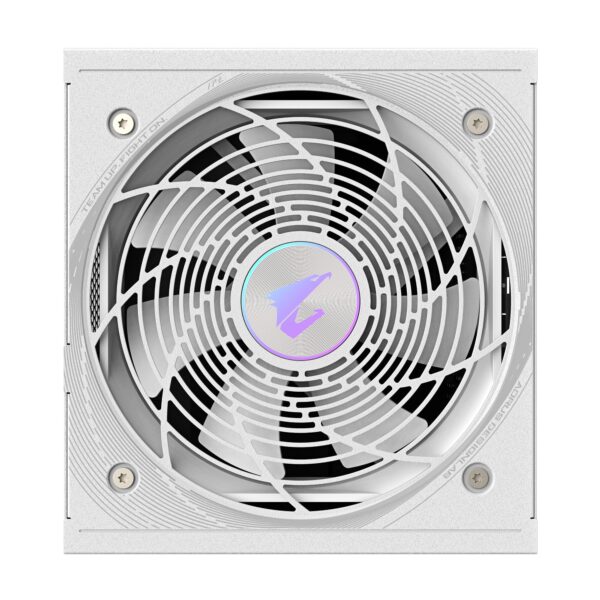

| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
White |
| Weight & dimensions |
| Weight |
3.1 kg |
| Height |
86 mm |
| Depth |
140 mm |
| Width |
150 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
3.73 kg |
| Package height |
120 mm |
| Package depth |
206 mm |
| Package width |
340 mm |
| Technical details |
| Warranty period |
10 year(s) |
