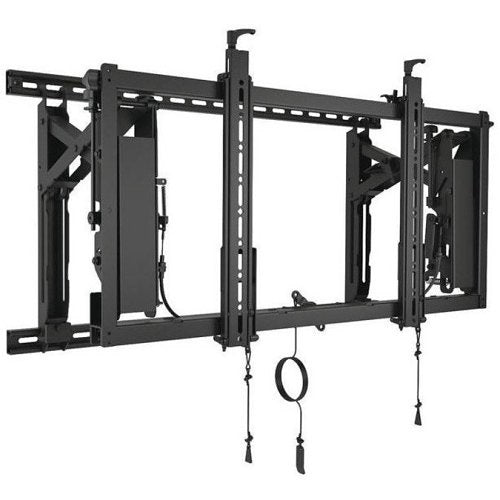

Chief LVS1U Connexsys Adjustable Wall Mount for Flat Screen Display 80”
Chief ConnexSys Video Wall Landscape Mounting System with Rails ships with rails for each mount and features:
- Fits 42-80″ screens with 200×100 to 700x400mm mounting patterns and 150lbs.
- Hang units on a single 1-5/8″ strut channel for quick row leveling and no need for horizontal spacers
- Tool-free ClickConnect latching secures displays
- PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount
- Tilt adjustment at single pivot point, protects displays from twisting
- Can be extended 13.4″ for service
- Kickstand provides 20 degrees of bottom tilt access
- Manual Height Adjustment: ± 1″
- Maximum Extension: 13.4″ (34.0 cm)
- Minimum Depth: 4″
- Tilt: + 4.0°, -2.5°
- Weight Capacity: 150 lbs (68 kg)
