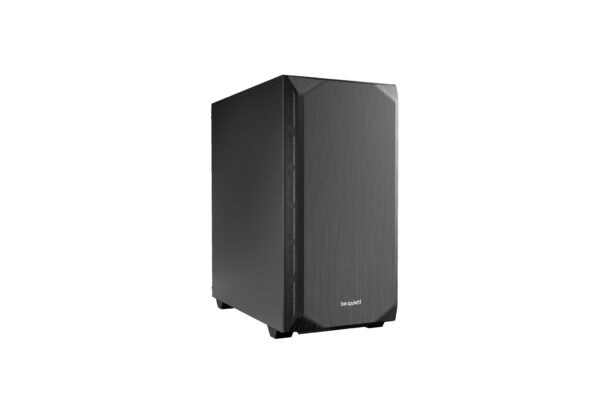

be quiet! Pure Base 500 Black
Outstanding price-performance ratio
be quiet! Pure Base 500 Black combines customizable and silence features with a compact and sophisticated design. It is the perfect case for all who value compactness and highly functional features.
REGULAR TOP COVER
Perfect for silent air-cooled systems
The regular top cover perfectly rounds off the design of the Pure Base 500. An insulation mat attached underneath ensures a silent operation. It is the perfect choice for air-cooled systems and regular, silent PC configurations. Strong magnets make sure the top covers fits firmly.
HIGH-PERFORMANCE TOP COVER
Maximum airflow for water-cooled configurations
For all who strive for maximum performance and especially with water-cooled systems, the extremely air-permeable top cover is the right choice. It is made of light meshed fabrics, ensuring the highest airflow possible.

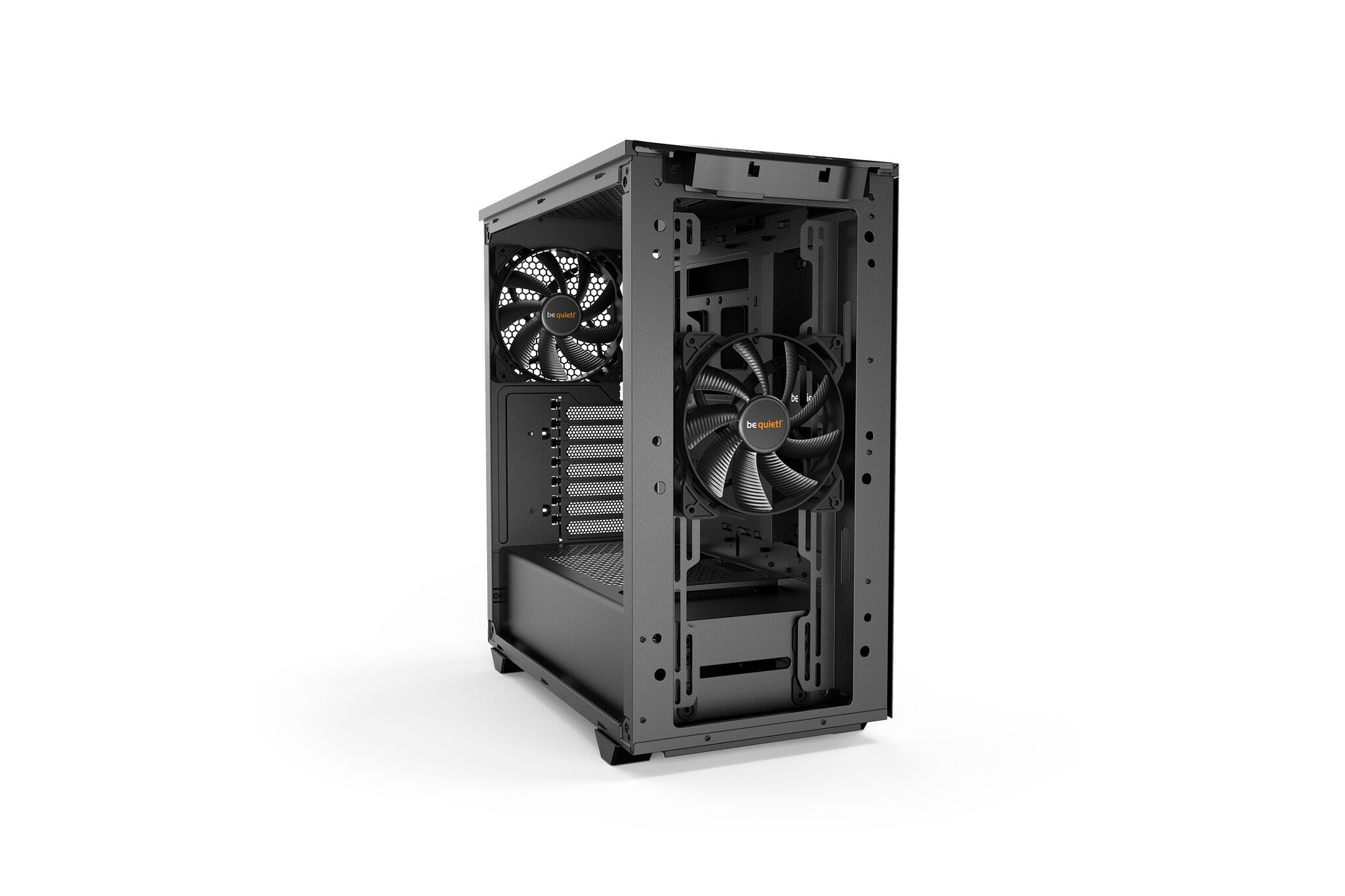

TWO PREINSTALLED PURE WINGS 2
Whisper-quiet operation
Two preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the front and rear fans are both 140mm models, resulting in very quiet operation. Up to three 140mm fans can be installed in addition.
NOISE DAMPENING
Achieving great silence and stability
The front, sides and regular top cover are equipped with insulation mats that result in great stability and improved noise dampening capabilities. The dust filters on the front and bottom are easy to remove for cleaning.
SOPHISTICATED DESIGN
Generous space for high-end hardware
The Pure Base 500 provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator up to 240mm.
FUNCTIONAL CABLE ROUTING
And great cable routing possibilities
Pure Base 500 offers various possibilities for installing up to 5 SSDs in total. To hide any unwanted cables, the case offers excellent cable routing options.
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.
| Design | |
|---|---|
| Certification | CE, RoHS |
| Maximum PSU length | 25.8 cm |
| Maximum graphics card length | 36.9 cm |
| Maximum CPU cooler height | 19 cm |
| Anti-dust filter | Yes |
| Side window | No |
| Number of expansion slots | 7 |
| Number of 2.5″ bays | 5 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | ATX, Mini-ATX, Mini-ITX |
| Product colour | Black |
| Material | ABS synthetics, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240 mm |
| Rear radiator sizes supported | 120,140 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Noise level (low speed) | 17.1 dB |
| Maximum airflow | 55.8 cfm |
| Fan rated voltage | 12 V |
| Fan rated current | 0.09 A |
| Fan power consumption | 1.08 W |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Weight | 6.95 kg |
| Height | 443 mm |
| Depth | 450 mm |
| Width | 231 mm |
| Packaging data | |
|---|---|
| Package weight | 7.92 kg |
| Package height | 510 mm |
| Package depth | 494 mm |
| Package width | 285 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Screws included | Yes |
