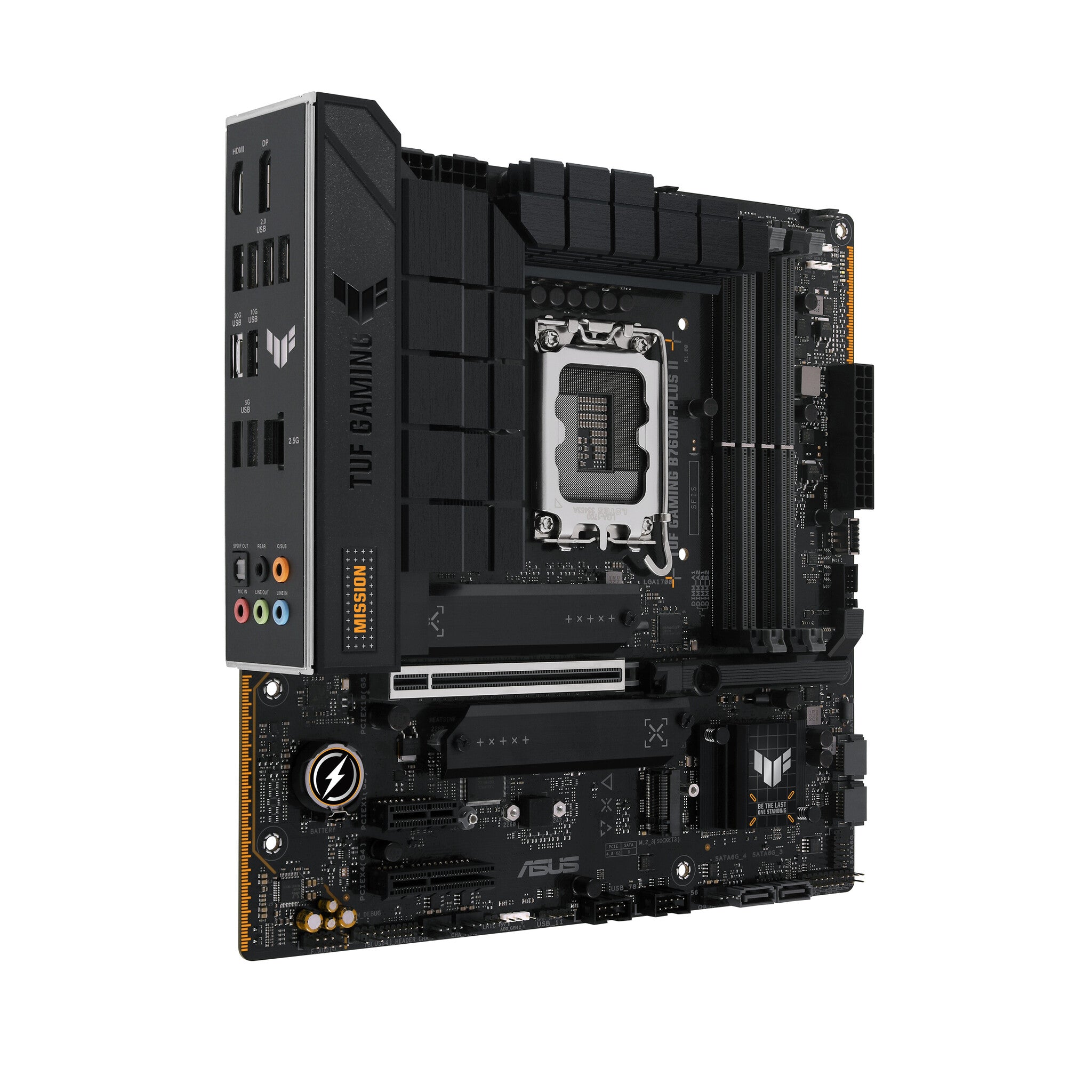

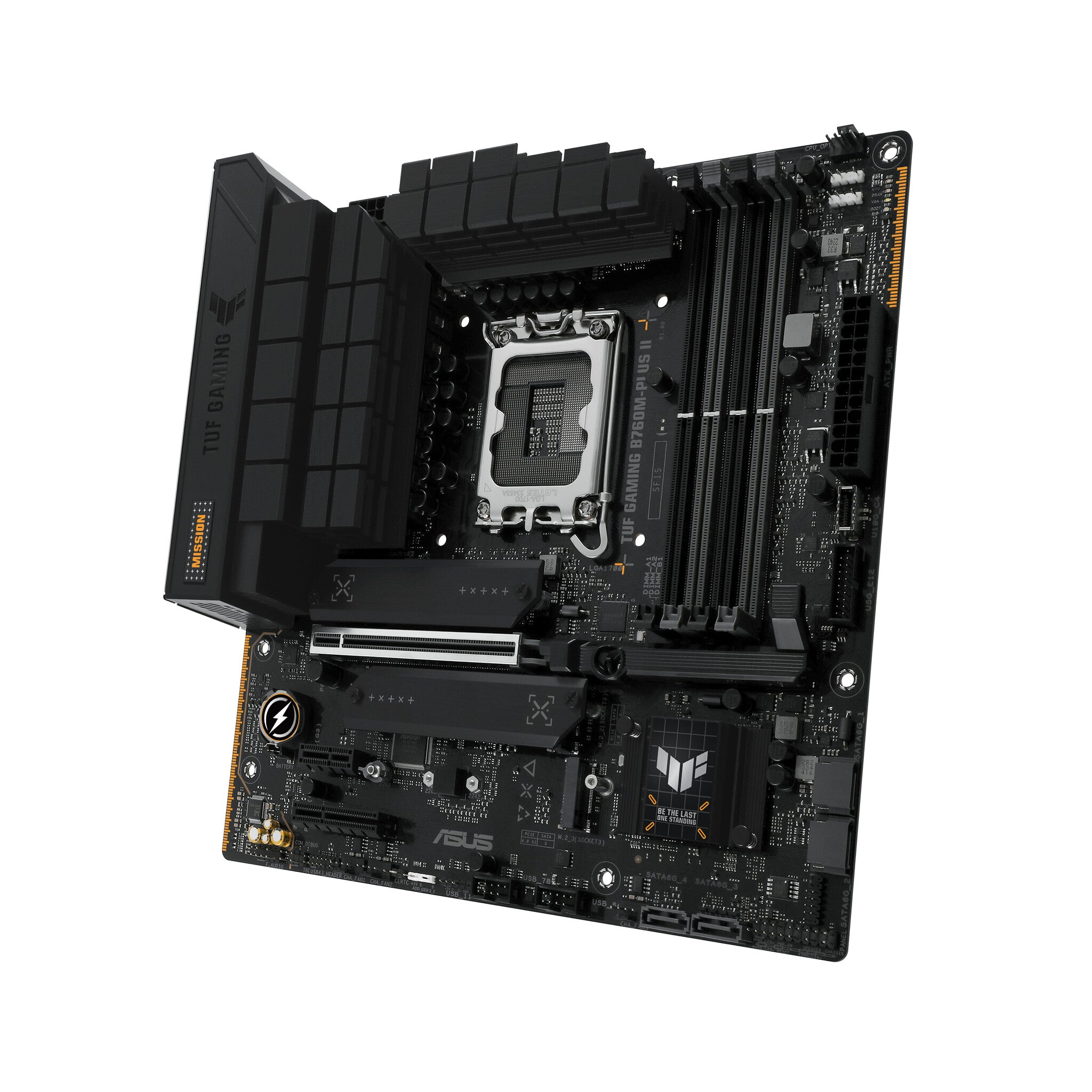

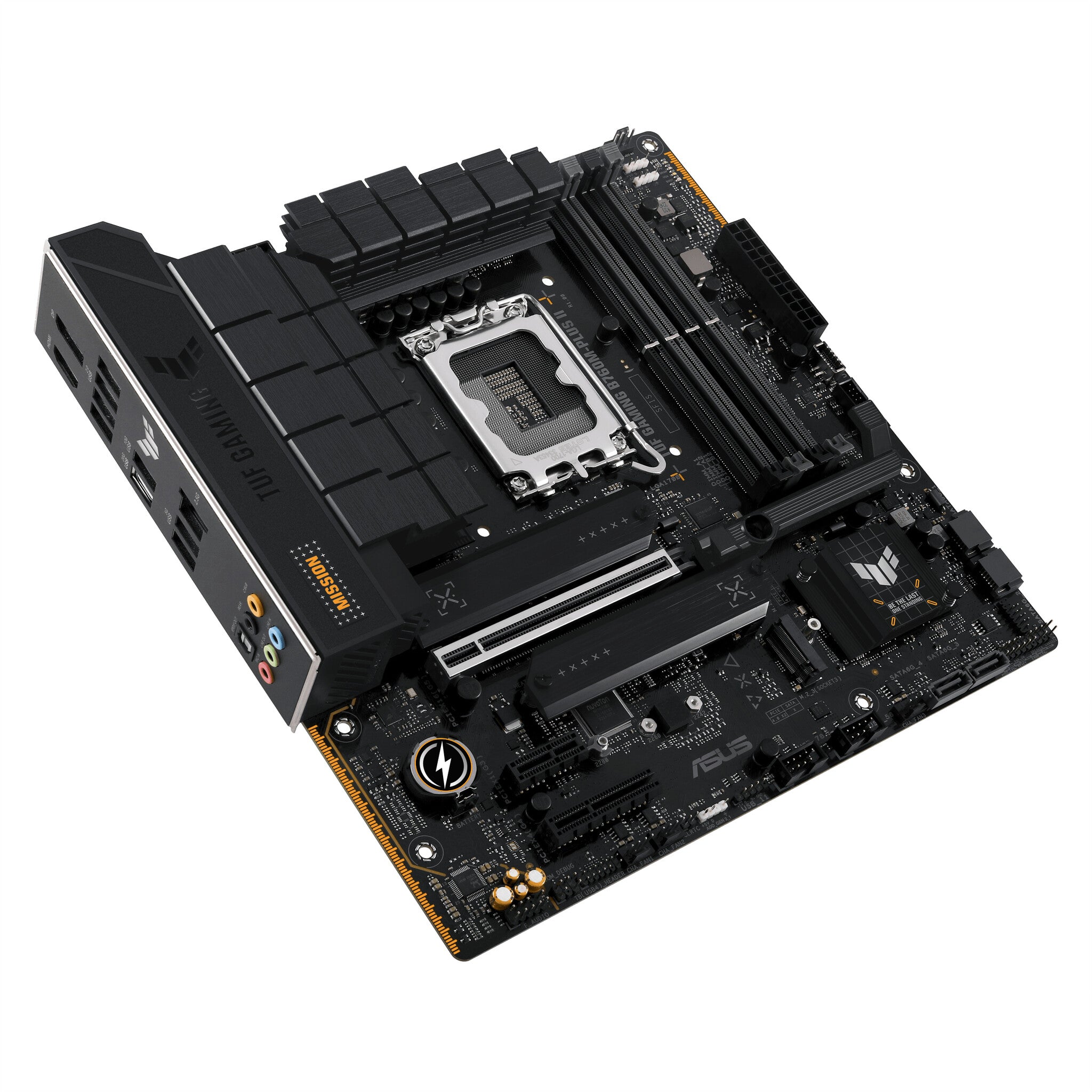

ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
Intel Socket LGA1700, Intel B760 Chipset, 4 x DIMM slots, Max. 192GB, DDR5, micro-ATX Form Factor
TUF GAMING B760M-PLUS II
TUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
| Processor |
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
192 GB |
| Supported memory clock speed (max) |
7800 MHz |
| Supported memory clock speeds |
7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| Thunderbolt headers |
1 |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
3 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
3 |
| Rear panel I/O ports |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
| Wi-Fi |
No |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x4 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| BIOS |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
1.65 kg |
| Package height |
71 mm |
| Package depth |
265 mm |
| Package width |
280 mm |
| Weight & dimensions |
| Height |
50 mm |
| Depth |
244 mm |
| Width |
244 mm |
| Packaging content |
| Screws included |
Yes |
| Cables included |
SATA |
| Other features |
| Weight |
982 g |
