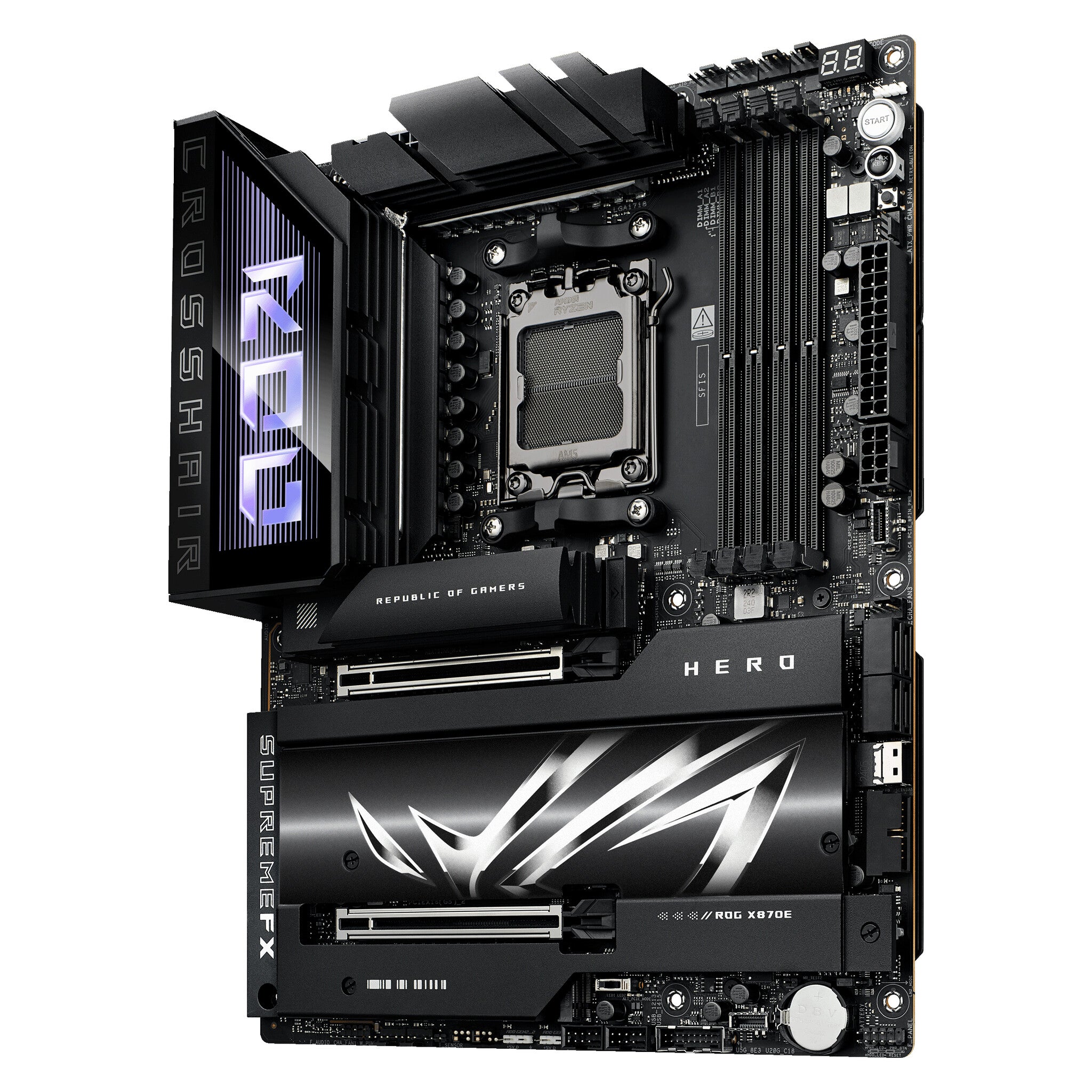

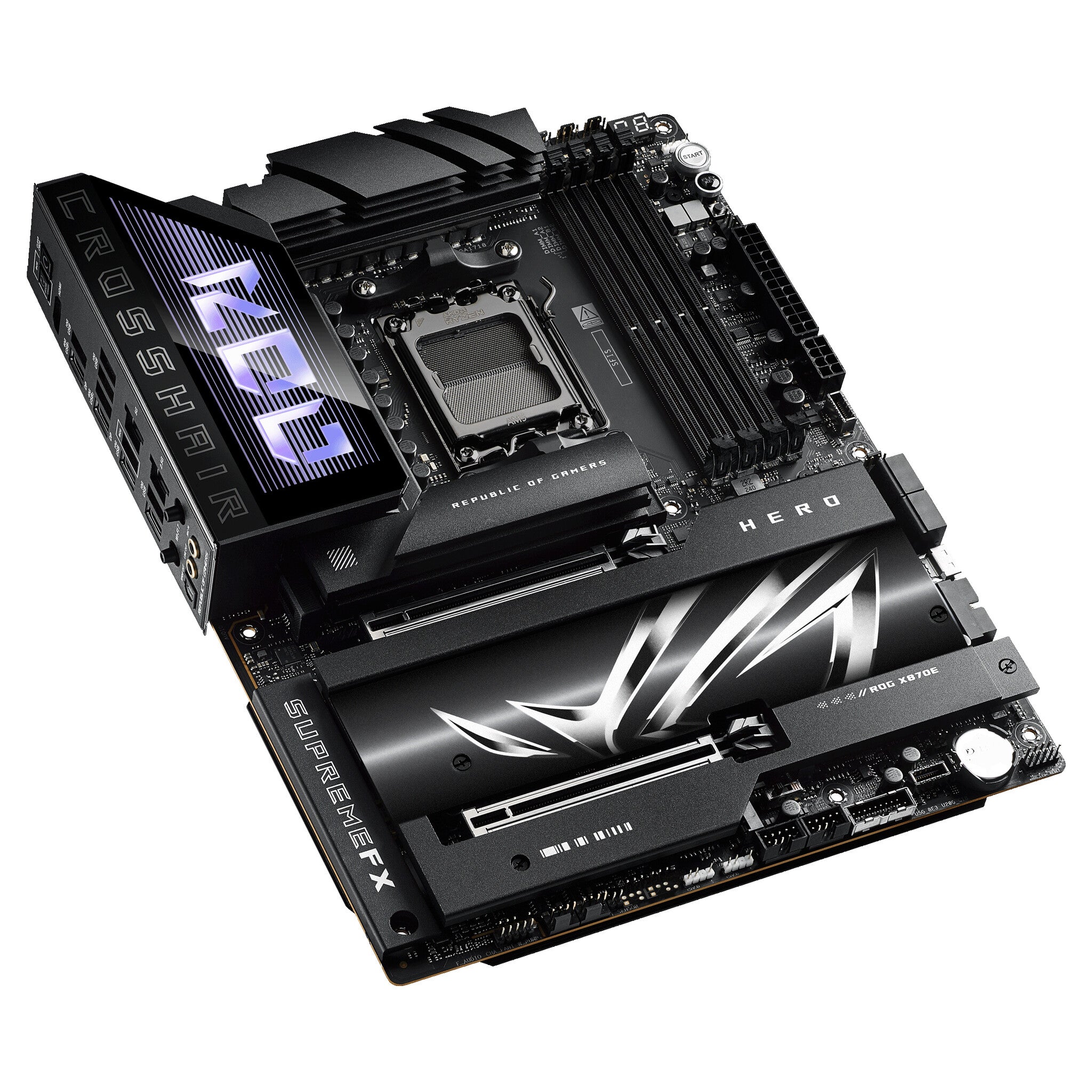

ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX
Teamed Power Solution, AI Networking II, Overclocking Effortless performance boost, AI Cooling II, DDR5 Max. 192GB, NitroPath DRAM Technology, AEMP, PCIe Gen 5, WIFI 7
ASUS AI INTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
| Processor |
| Supported processor sockets |
Socket AM5 |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
192 GB |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10, 5 |
| RAID support |
Yes |
| Number of HDDs supported |
5 |
| Number of storage drives supported |
10 |
| Supported storage drive interfaces |
M.2, SATA III, SlimSAS |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
4 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2×2 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| WiFi-AP antenna jack |
1 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB4 Gen 2×2 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC4082 |
| Motherboard chipset |
AMD X870E |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
5 |
| PCI Express x16 (Gen 5.x) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
4 |
| BIOS |
| Clear CMOS button |
Yes |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
4.26 kg |
| Package height |
108 mm |
| Package depth |
312 mm |
| Package width |
370 mm |
| Weight & dimensions |
| Height |
50 mm |
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
| Weight |
2.55 kg |
