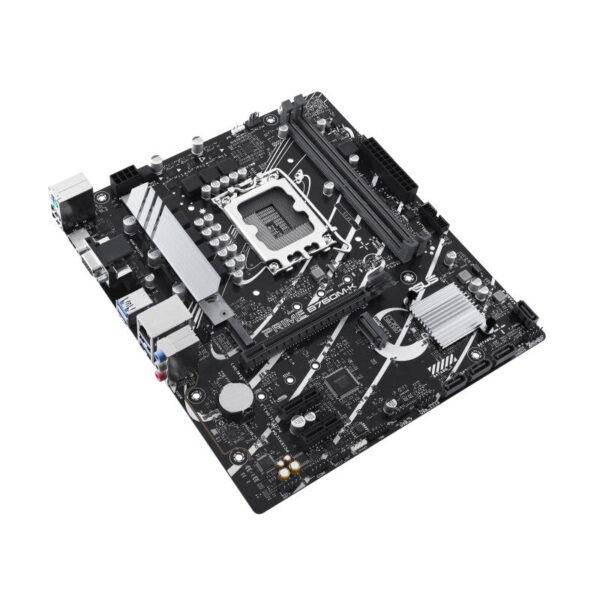

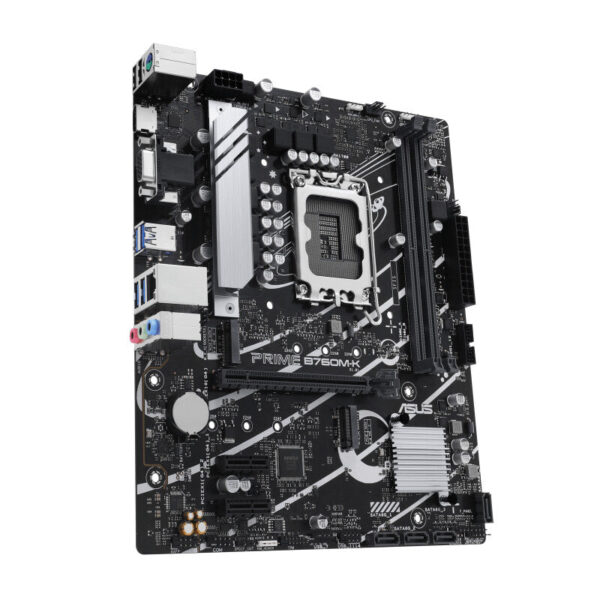

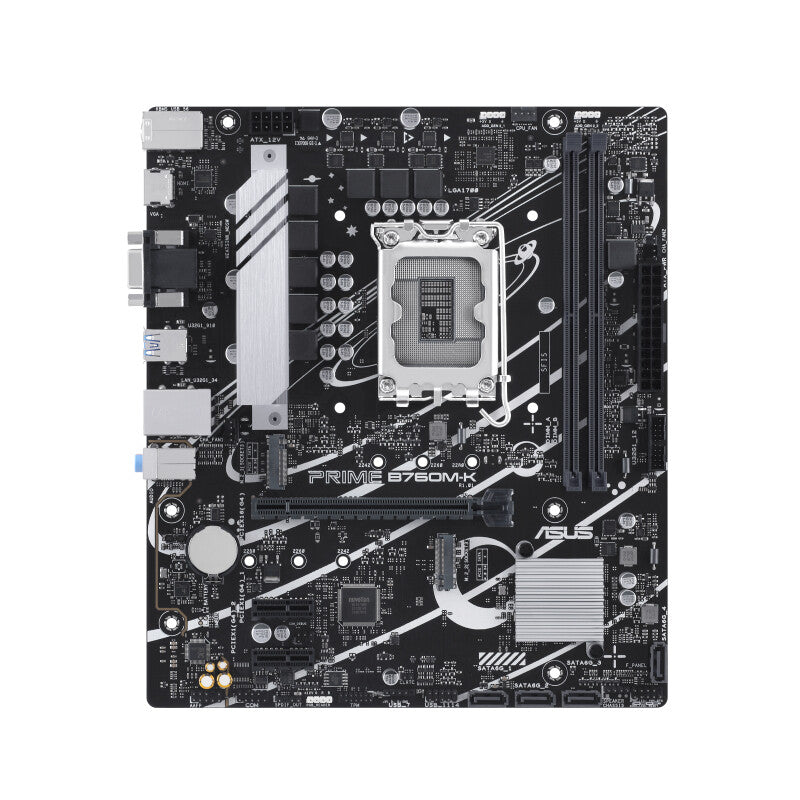

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
Prime B760M-K, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
B760M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
| Processor |
| Supported processor sockets |
LGA 1700 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
96 GB |
| Supported memory clock speed (max) |
8000 MHz |
| Supported memory clock speeds |
7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800,8000 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
6 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| RGB LED pin header |
Yes |
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| S/PDIF out port |
Yes |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Network |
| Wi-Fi |
No |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 4.x) slots |
2 |
| BIOS |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
| Depth |
211 mm |
| Width |
244 mm |
| Packaging content |
| Cables included |
SATA |
