ASUS Noctua RTX4080 SUPER OC NVIDIA GeForce RTX 4080 SUPER 16 GB GDDR6X

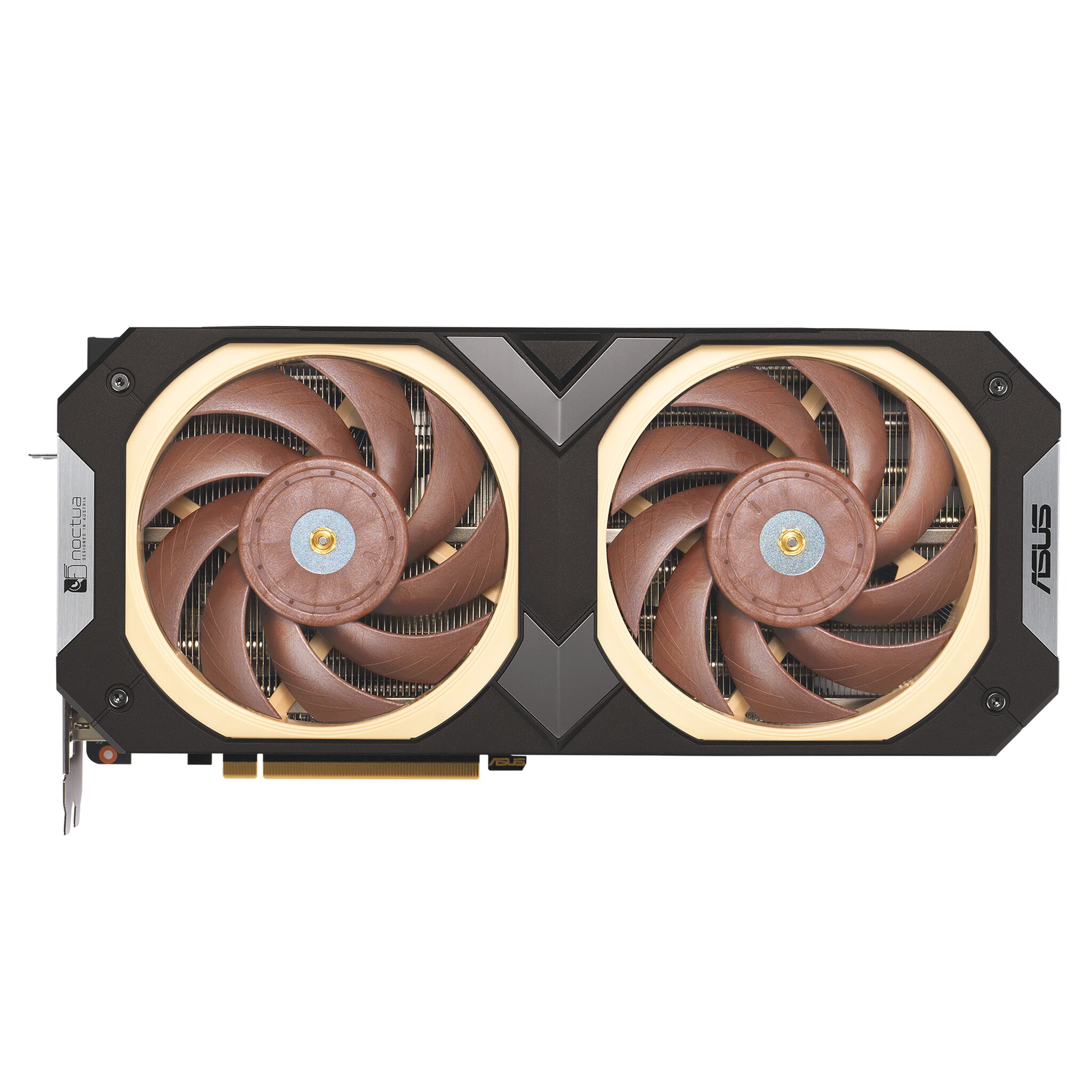

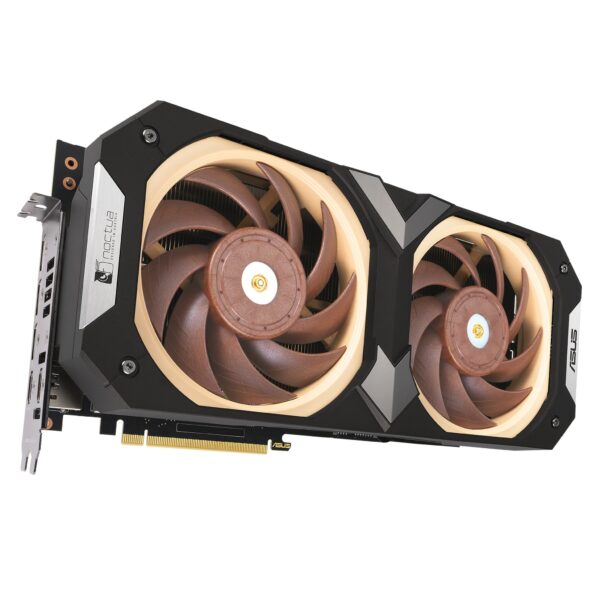

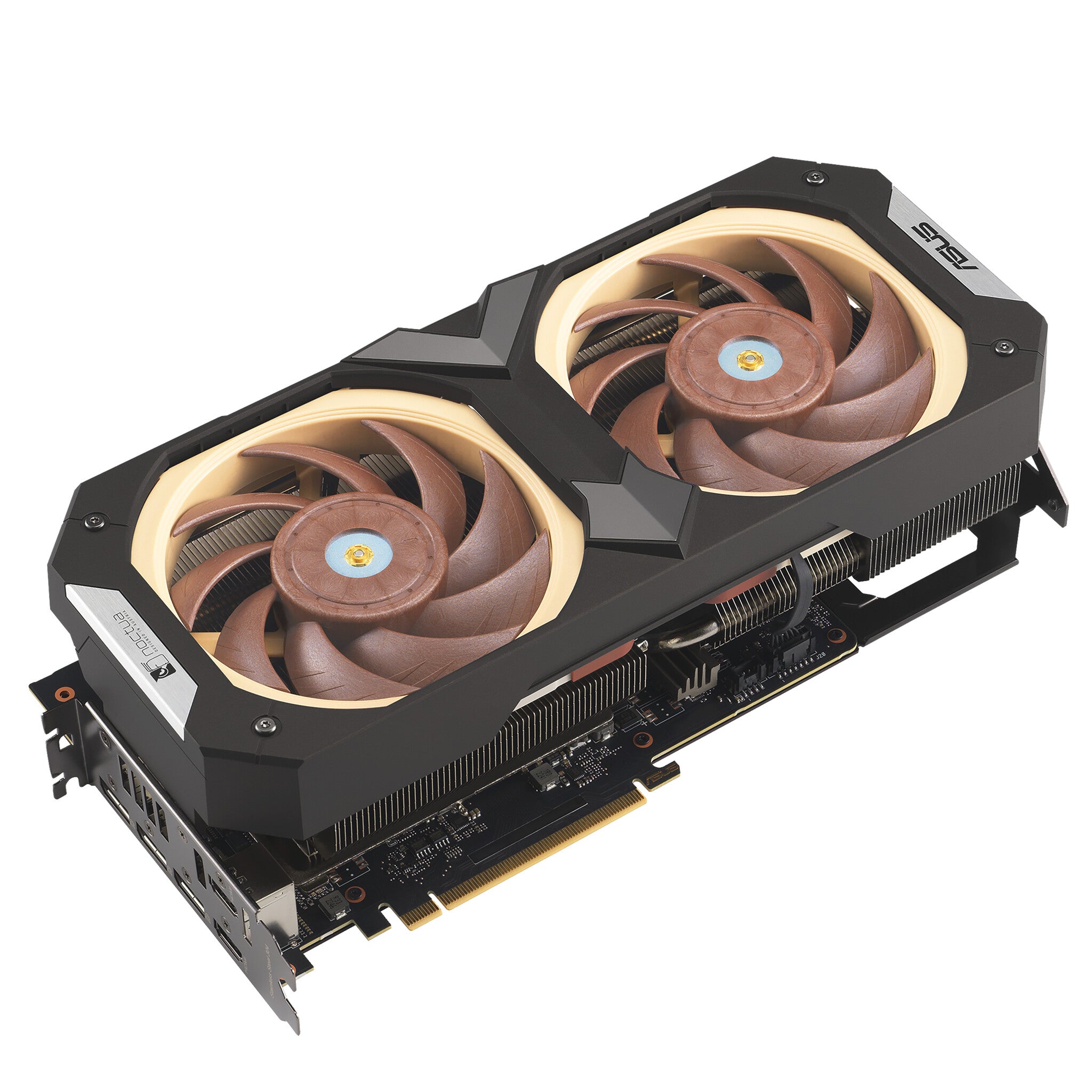

ASUS GEFORCE RTX™ 4080 SUPER NOCTUA EDITION
The Quietest Graphics Card In Its Class
ASUS and Noctua engineers teamed up to pair two iconic NF-A12x25 PWM fans with tailor-made thermal solution that rides on a custom PCB. This potent pairing allows the ASUS GeForce RTX 4080 SUPER Noctua Edition to produce less noise than any air-cooled graphics cards in its class. If you’re a Noctua afficionado, gamer, or content creator who wants the right balance of performance and acoustics, this is it.
Cool and Quiet
From the shroud to down to the heatspreader, every aspect is optimized to minimize noise.
Noctua NF-A12x25 PWM Fans
The two Noctua NF-A12x25 120mm fans integrate a low-resonance Sterrox® liquid-crystal polymer (LCP) fan impeller, metal-reinforced motor hub, stabilized bearings, and custom low-noise PWM IC to deliver performance you can rely on day in, day out.
Tailor-made Heatsink
An optimized vapor chamber efficiently wicks heat into a vast fin array that takes full advantage of the Noctua NF-A12x25 fans.
Card Enhancements
Additional upgrades first championed on ROG Strix and TUF Gaming GeForce RTX 40-series graphics cards allow the ASUS GeForce RTX 4080 SUPER Noctua Edition to deliver performance and durability at every level.
Graphics Card Holder
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
GPU Tweak III
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
Further With AI, Faster on RTX
Get next-level AI performance on GeForce RTX.
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor frequency (OC mode) | 2640 MHz |
| Processor boost clock speed | 2610 MHz |
| CUDA cores | 10240 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4080 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 23 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP version | 2.3 |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 4.3 |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 850 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
|---|---|
| Depth | 87.5 mm |
| Height | 144.8 mm |
| Length | 310 mm |
| Weight | 1.95 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.71 kg |
| Package height | 87.5 mm |
| Package depth | 144.8 mm |
| Package width | 310 mm |
| Manual | Yes |
